• Sheath Colour：Black,Red,Blue,Orange, Other as Per Requirements
• Transport Package：Drum or Under Clients′ Request
• Specification：1.5mm2-1000mm2
• Trademark：Yifang
• Origin：Zhengzhou, China
• Production Capacity：1000km,Month

Basic Info.

Sheath Colour Black,Red,Blue,Orange, Other as Per Requirements Transport Package Drum or Under Clients′ Request Specification 1.5mm2-1000mm2 Trademark Yifang Origin Zhengzhou, China Production Capacity 1000km/Month

Product Description

XLPE/PVC Insulation LV (Low Voltage) Power Cable

1.XLPE/PVC Insulation LV (Low Voltage) Power Cable  cable belongs to cables rated voltage up to 1KV. They are used for laying indoor, tunnel, underground, canal, water and seabed, etc .

Standard available such as ASTM , BS , DIN ,NFC , AS/NZS , CSA , IS , etc.

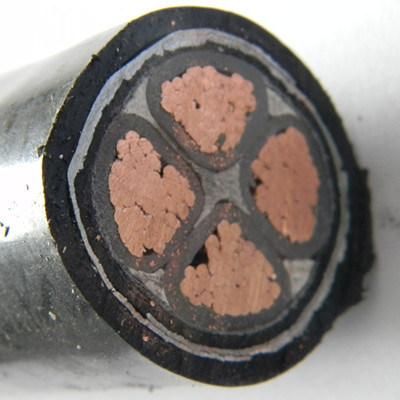

2.Brief Construction:
2.1 Number of Core : 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.
2.2 Conductor material: Copper or Aluminum (Stranded Round /Stranded compacted round/stranded compacted sector)
2.3 Insulation Material: XLPE/PVC/PE/LSHF
2.4 Inner sheath (applicable if there is armour layer): PVC/PE
2.5 Armour layer (if required) :Galvanized steel wire / Steel Tape
2.6  Outer sheath :  PVC/PE

3.The max. conductor long time permissible operating temperature is 70 degree for PVC Insulation and 90degreefor XLPE Insulation ; In short circuit, max. Temperature is 160 degree for PVC Sheath and 250degreefor PVC Sheath.

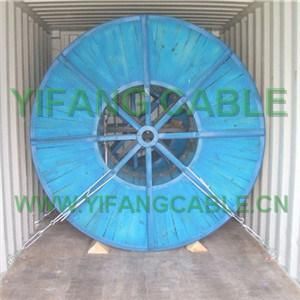

4.Packing :  In roll / In wooden drum / In Iron-wooden drum / In steel drum.

5.Certificate: ISO , CE , SGS, SONCAP , BV , COC,ETC.

6.For other detailed information, pls contact us directly .
