• Model NO.：T-903
• Origin：Nanjing, China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. T-903 Origin Nanjing, China Production Capacity 500PCS/Month

Product Description

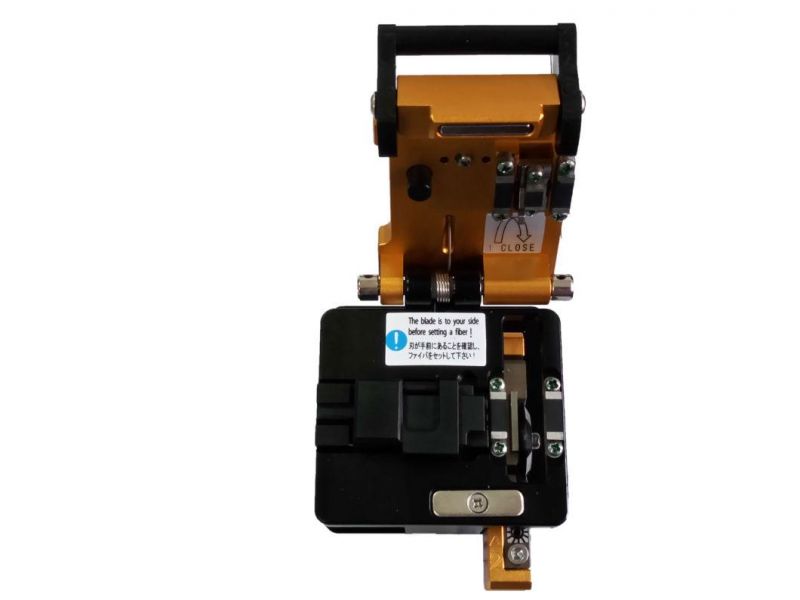

                                    Optical fiber cleaver T-903

Description
   The T-901 is an economic multi-action and high precision fiber cleaver, standard length 16mm. Compact, slim and simple is available for application.

General
 1) Weight: 0.45kg.
 2) Dimensions: 63(W) x 76(D) x 63(H)mm.

Features
♦  Stable operation with Multi-Action process
♦  Typical cleave angle: 90°± 0.5°
♦  Compact & handy outfit design
♦  High precision cleaving blade with 16 cleave spots
♦  Scratch-free anodized body surface
♦ Simplified blade adjustment & replacements
♦  Built-in maintenance tool attached: on the bottom

Specification
 ♦ Applicable fiber: SM, MM, DS, NZ-DS, EDF, 125um OD of Nude Fiber Cable
 ♦ Fiber Diameter:  Core of Fiber Cable single(∮0.25 & 0.9mm)
 ♦ Coating Diameter: 100~1000um
 ♦ Cleave Angle: 90°± 0.5°
 ♦ Cut Length of Fiber Cable 9~16mm (∮0.25mm),10~16mm (∮0.9mm)
 ♦ Blade Lifetime: 36000 cleaves
