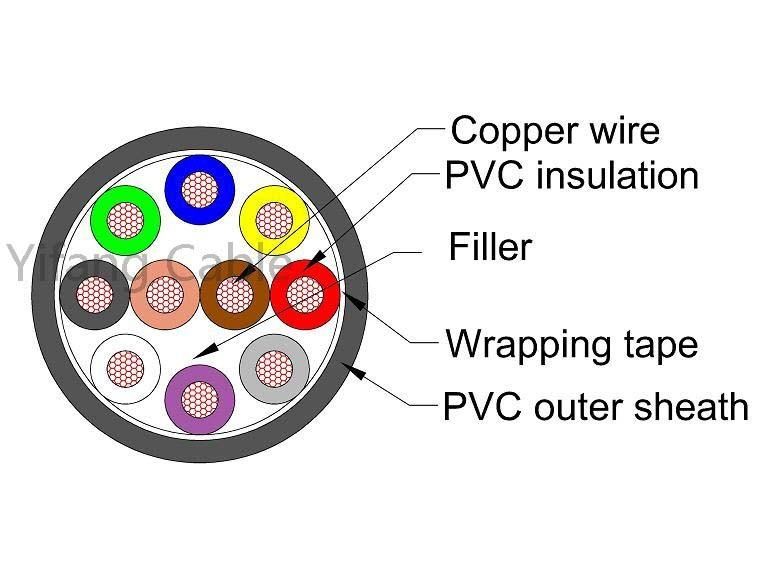

12 Core 1.5mm2 PVC Insulated Copper Control Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Underground, Industrial, Telecommunication
- Voltage：0.6,1kv
- Current：AC Cable
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Control Cable
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE
- Model：Control Cable
- Brand：Yifang Cable
- Standard：IEC 60502
- Color：Black
- Conductor：Stranded Copper Wire
- Shielded：Copper Wire Braiding or Copper Tape
- Transport Package：Drum
- Specification：1.5MM2 2.5MM2
- Trademark：Yifang
- Origin：China
- HS Code：8544492100
- Production Capacity：500, 0 Meters Per Month
Description
Type
0.6 / 1kv control cable Name
Section Area(mm2)
No. of Core
0.6 / 1kv control cable Application Site
KVV
Copper Conductor,PVC Insulated and Sheathed Control Cable
0.75 1.0 1.5 2.5
2-16
Permanent installation indoors,in cable ditches or pipes
4 6
2-14
10
2-10
KVVP
Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable
0.75 1.0 1.5 2.5
2-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
2-14
10
2-10
KVVP2
Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable
0.75 1.0 1.5 2.5
4-10
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
7-61
10
4-10
KVV22
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
4 6
4-14
10
4-14
KVVR
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable
0.5-2.5
4-61
Installation indoors where flexibility and movability are required
KVVRP
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable
0.5 0.75 1.0
4-61
Installation indoors where flexibility shielding and movability are required
1.5 2.5
4-48
KYJV
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
2-16
Permanent installation indoors,in cable ditches or pipes
4 6
2-14
10
2-10
KYJVP
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
2-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
2-14
10
2-10
KYJV22
Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
4 6
4-14
10
4-10
KYJVP2
Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
4-14
10
4-10
KYJVR
Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable
0.5-2.5
4-61
Installation indoors where flexibility and movability are required
KYJVRP
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable
0.5 0.75 1.0
4-61
Installation indoors where flexibility shielding and movability are required
