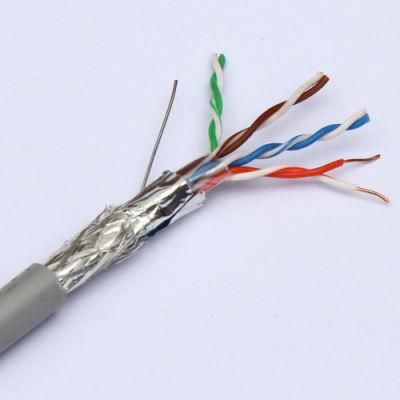

- Model NO.：FTP CAT6A
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Model：FTP CAT6A
- Brand：Hanli

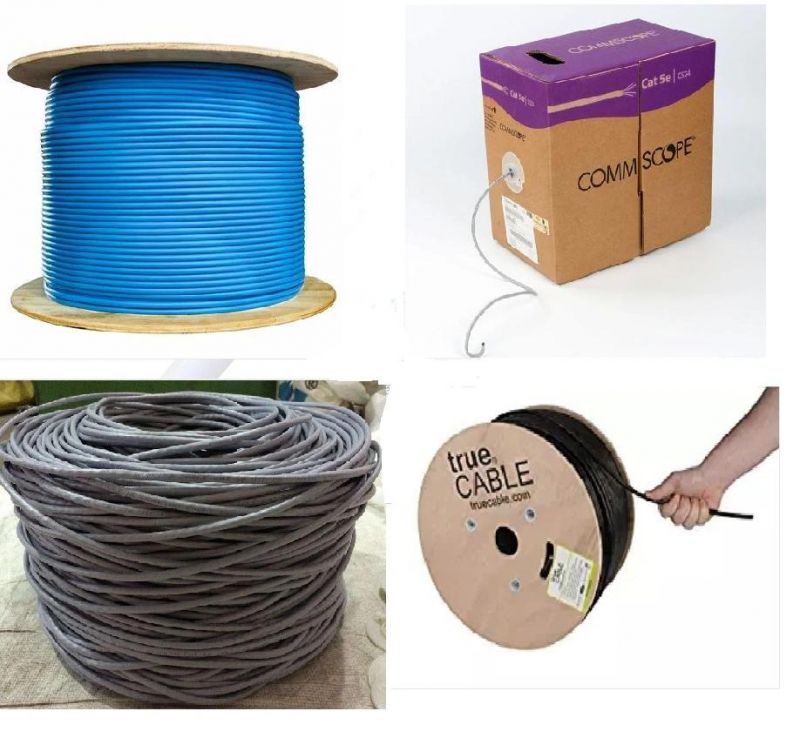

- Transport Package：305m,Roll
- Specification：23AWG
- Trademark：hanli
- Origin：Zhejiang
- HS Code：8544491100
- Production Capacity：3000000m,Month

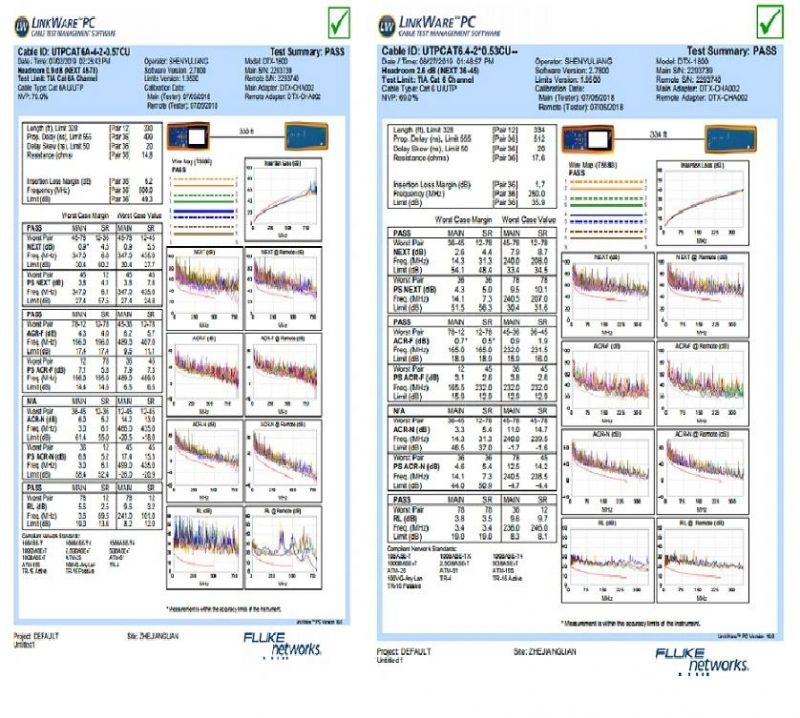

| Product Name/Code: Cat6A PVC | Performance |
| Application: | Frequency | RL | Attenuation | NEXT | PSNEXT |
| 100 Base-T4 | | (MHz) | (dB) | (dB/100m) | | |
| 100 Base-TX | | | min. | max | min (dB) | min (dB) |
| 100VG - AnyLAN | | 1.000 | 20.00 | 2.00 | 80.00 | 77.00 |
| 1000 Base-T (Gigabit Ethernet) | | 4.000 | 23.00 | 3.60 | 80.00 | 77.00 |
| 155 Mbps ATM | | 10.00 | 25.00 | 5.70 | 80.00 | 77.00 |
| 622 Mbps AT | | 16.00 | 25.00 | 7.20 | 80.00 | 77.00 |
| Reference Standard | 20.00 | 25.00 | 8.10 | 80.00 | 77.00 |
| EIA/TIA 568B & ISO/IEC 11801 | 31.25 | 23.60 | 10.10 | 80.00 | 77.00 |

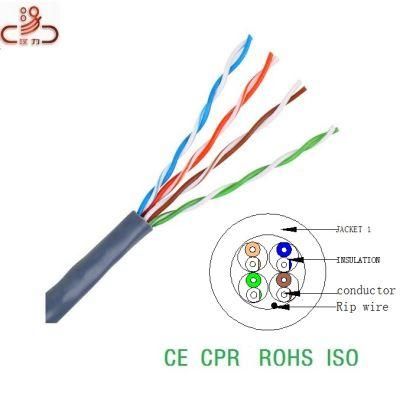

| Cable Construction | 62.50 | 21.50 | 14.50 | 75.50 | 72.50 |
| Conductor | Solid Bare Copper | 100.00 | 20.10 | 18.50 | 72.40 | 69.40 |
| AWG | 22/23 | 200.00 | 18.00 | 26.80 | 67.90 | 64.90 |
| Conductor Diameter(mm) | 0.64/0.574 | 250.00 | 17.30 | 30.20 | 66.50 | 63.50 |
| Insulation | Solid PE | 300.00 | 17.30 | 33.30 | 65.30 | 63.30 |
| 600.00 | 17.30 | 48.90 | 60.80 | 57.80 |
| Average Thickness (mm) | 0.2 | Frequency | ELFEXT | PSELFEXT | | ACR |
| Insulation Diameter(mm) | 1.05 | (MHz) | | | | |
| | | | | | | |
| | | 4.000 | 80.00 | 77.00 | | 76.40 |
| | | 10.00 | 74.00 | 71.00 | | 74.30 |
| | | 16.00 | 69.90 | 66.90 | | 72.80 |
| Sheathing | PVC /FRPVC | 20.00 | 68.00 | 65.00 | | 71.90 |
| Thickness(mm) | 1.4 | 31.25 | 64.10 | 61.10 | | 69.90 |
| Diameter(mm) | 8.1(22 AWG) | 62.50 | 58.10 | 55.10 | | 61.00 |
| 7(23 AWG) | 100.00 | 54.00 | 51.00 | | 53.90 |
| Core Identificatin/Color Code | According to customer request | 200.00 | 48.00 | 45.00 | | 41.10 |
| Bending Radius | 6xOverall Diameter | 250.00 | 46.00 | 43.00 | | 36.30 |
| | | 300.00 | 44.50 | 41.50 | | 32.00 |
| | | 500.00 | 38.40 | 35.40 | | 11.90 |
| Fire Performance | Electrical Performance |
Flame propagation Test to IEC 332 Part 1(PVC)
Flame Propagation Test to IEC 60332 Part 1 and Part 3(FEPVC) | Max.Conductor DC Resistance at 20 ºC(Ω/Km) | <93.8 |
| Operating Temperature( ºC ) | 70 |
| Velocity of propagation | 79% |
| Impedance(ohm) | 100±15 |
