• Model NO.：315-1000
• Transport Package：Industry Packing
• Specification：GB4004-83, JB,T7600.3-94 and DlN46395
• Trademark：ONEREEL
• Origin：China
• HS Code：7326909000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. 315-1000 Transport Package Industry Packing Specification GB4004-83, JB/T7600.3-94 and DlN46395 Trademark ONEREEL Origin China HS Code 7326909000 Production Capacity 1000PCS/Week

Product Description

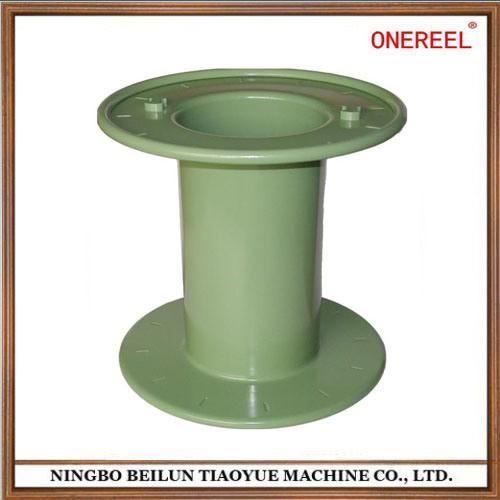

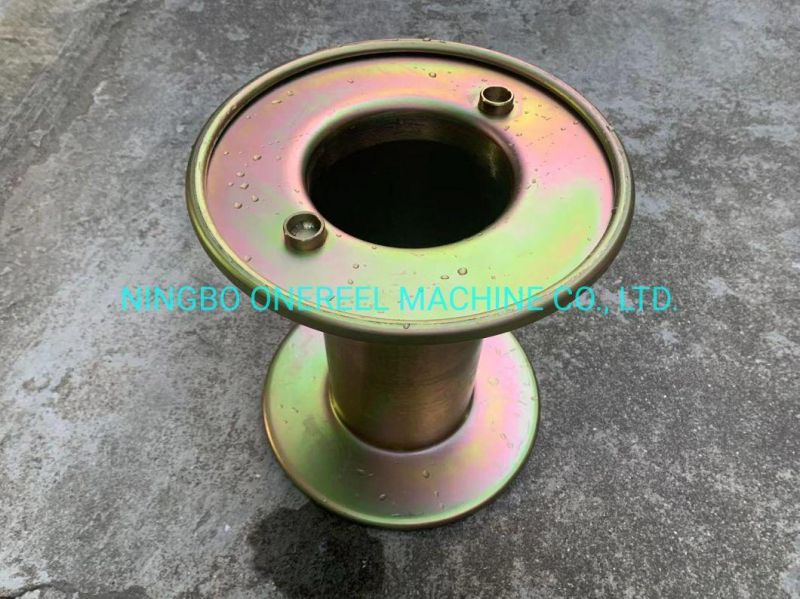

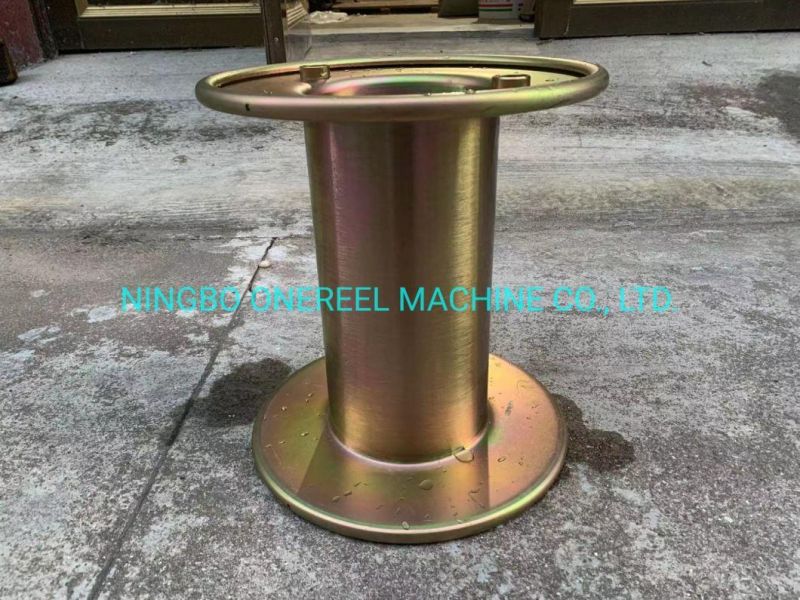

Name: Sawing wire spool TA-20 TA-40 TA-100

In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, the product is formed by pressing and welding common carbon steel Q235 (A3) thin steel plate. The periphery of lateral plate adopts a hemming structure. The product has the characteristics of not only strengthening the strength of lateral plate, but also having higher rigidity and toughness, light weight and fastness, which can be used for drawing-wire machine, buncher, stranding machine, extruder, cabling machine and armouring machine.

Serial Number	Specification Model	Lateral Plate Diameter D1	Major Diameter D2	Axle Hole Diameter D4	Carrying Hole Diameter D5	Center Distance E of Axle Hole and Carrying Hole	External Width L1	Internal Width L2
1	315	315	120	33.5	16	86	238	200
2	400	400	160/200	56	16	71-112	300	250
3	440	440	220	80	16-28	180	316	292
4	450	450	180/224	56	16-28	71-112	335	280
5	500	500	250	56	16-28	142	335	315
6	560	560	224/280	56	16-28	71-112	425	355
7	600	600	250/300	56/60	16-28	71-112	340/3 85	300/3 50
8	630	630	335	80	16-32	140	495	450
9	710	710	355/400	80	28-40	71-112	530	450
10	760	760	355	32.5/54	21-35	64-115 95-126.5	345 315	295 280
11	762	762	355/400	60	25-40	135	360	280
12	787	787	450	127	25.4	120	560	485
13	800	800	450	200	28-40	135	600	500
14	900	900	380	80	28-40	400	764	720
15	1000	1000	500	200	28-40	320	780	660

Our main products

Plastic bobbin
1.For process and recycle usage.
2.Superfine wire bobbin
3.Packing and delivery bobbin

Metal reel:
1.Corrugated reel for process
2.Punching type steel reel
3.Double layer high speed steel reel
4.Flat-plate type steel reel for high speed machine
5.Enhanced welding-type steel reel
6.Aluminum reel


FAQ

Frequently Asked Questions

1) What is your MOQ?
Usually our MOQ is upon your spools type,different spools with different MOQ. But we accept lower quantity for your trial order.

2) Can I get samples ?
According to spool model and material ,we will advice.

3) How long is the sample LEAD TIME?
For existing samples, it takes 2-3 days. If no stock,we will advice lead time.

4) Can you develop new products?
Yes, we have new products developing ability and we are good at developing new mold

5) How much is the freight charge?
 It depends on spool package volume,
if  small qty,volume and urgent goods,we may advise FEDEX or other couriers' charge for your check.
if volume bigger and by seaway suitable,we provide FOB or CIF price to you.

6) What format of the file do you need if I want my own design?
We have our own mould workshop and can provide spool or other plastic product developing and injection service.
 You can provide JPG, PDF,dwg files for check.

Note:  If you can't find the exact products you need, pls feel free to contact us.
After we checked your requirements, we will provide best offer asap.
