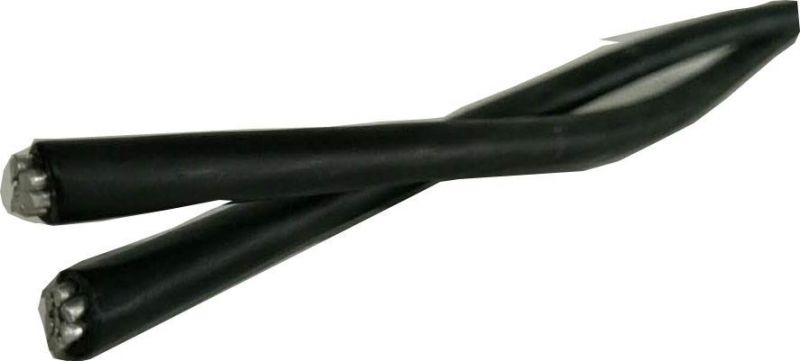

Aluminum Insulated ABC Cable
Henan Hongda Cable Co., Ltd.- Application：Overhead
- Voltage：Low and Medium Voltage Cable
- Current：DC Cable
- Insulation Material：XLPE
- Sheath Material：No Jacket
- Material Shape：Round Wire
Base Info
- Model NO.：ABC
- Wire Core Material：Aluminum
- Certification：ISO, CCC
- Model：ABC
- Brand：Hongda
- Cores：2 3 4 5
- Transport Package：on The Drum or on The Pallent
- Specification：10 16 25 35 50 70 95 120
- Trademark：hongda
- Origin：Henan
- HS Code：8544492100
- Production Capacity：10000m,Day
Description
Cross Section of Conductor
(mm2)
Min.Nos. of Wires for Conductor
(mm)
Insulation Thickness
(mm)
Average Max. O.D.per Single-core
(mm)
Max.Conductor Resistance at 20ºC
(Ω/km)
Min Insulated Resistance at Rated Working Temperature
(MΩ.km)
Cable Tensile Breaking Force
2x10
6
1.00
6.5x13.0
3.08
0.0067
0.67
1650
2x16
6
1.20
8.0x16.0
1.91
0.0065
0.65
2512
2x25
6
1.20
9.4x18.8
1.2
0.0054
0.54
3762
2x35
6
1.40
11.0x22.0
0.868
0.0054
0.54
5177
2x50
6
1.40
12.3x24.6
0.641
0.0046
0.46
7011
2x70
12
1.40
14.1x28.2
0.443
0.004
0.4
10354
2x95
15
1.60
16.5x33.0
0.32
0.0039
0.39
13727
2x120
15
1.60
18.1x36.2
0.252
0.0035
0.35
17339
2x150
15
1.80
20.2x40.4
0.206
0.0035
0.35
21033
2x185
30
2.00
22.5x45.0
0.164
0.0035
0.35
26732
2x240
30
2.20
25.6x51.2
0.125
0.0034
0.34
34679
4x10
6
1.00
6.5x26.0
3.08
0.0067
0.67
1650
4x16
6
1.20
8.0x32.0
1.91
0.0065
0.65
2512
4x25
6
1.20
9.4x37.6
1.2
0.0054
0.54
3762
4x35
6
1.40
11.0x44.0
0.868
0.0054
0.54
5177
4x50
6
1.40
12.3x49.2
0.641
0.0046
0.46
7011
4x70
12
1.40
14.1x56.4
0.443
0.004
0.4
10354
4x95
15
1.60
16.5x66.0
0.32
0.0039
0.39
13727
4x120
15
1.60
18.1x72.4
0.252
0.0035
0.35
17339
4x150
15
1.80
20.2x80.8
0.206
0.0035
0.35
21033
4x185
30
2.00
22.5x90.0
0.164
0.0035
0.35
26732
4x240
30
2.20
25.6x102.4
0.125
0.0034
0.34
34679
