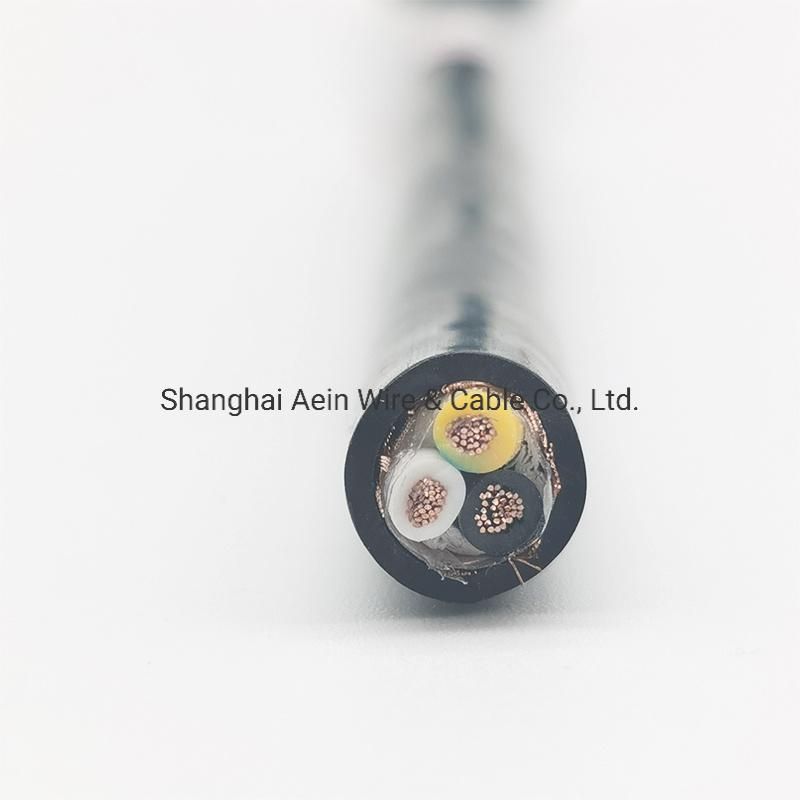

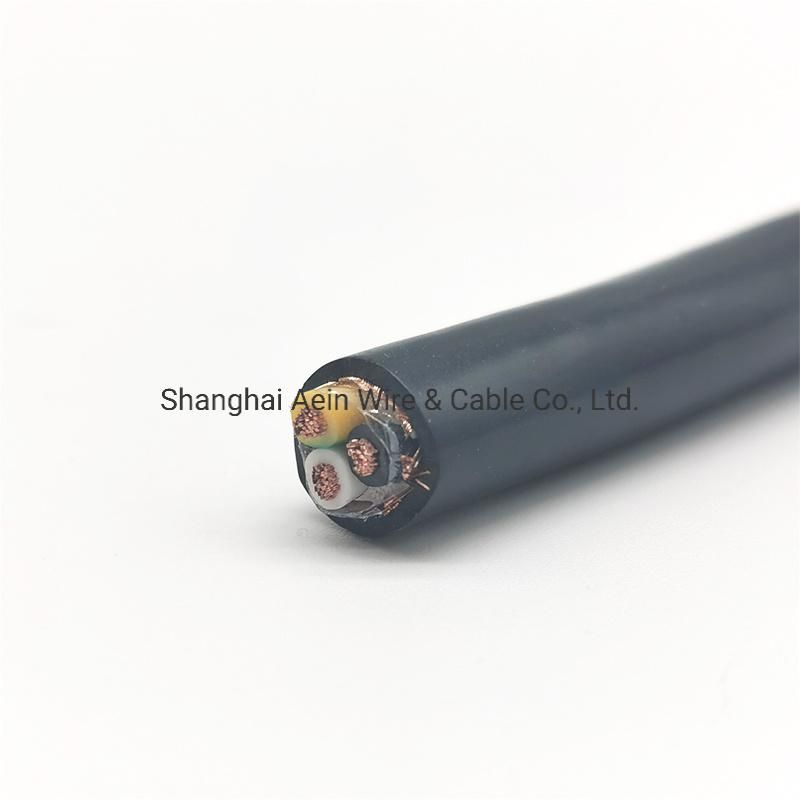

TUV Certified Z1c4z1-K (AS) Cable Lshf Double Screened

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Installation
  • Conductor Material：Copper
  • Sheath Material：Halogen Free Compound
  • Insulation Material：Special Thermoplastic Halogen Free Compound

Base Info

  • Model NO.：Z1C4Z1-K(AS) Cable
  • Material Shape：Round Wire
  • Range of Application：Installation
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multiple core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemZ1C4Z1-K(AS) CableConductorClass 5 flexible copperInsulationSpecial thermoplastic halogen free compound.ScreenBare copper wire braid
Coverage: 60% aprox.SheathHalogen free compoundNominal VoltageU0/U: 0.6/1kVTest voltage2000 VTemperature RangeWorking temperature: -15º C to +70º C
Short circuit temperature: +160º CColorOptionalCertificationTUV,CEApplicationThe screened and halogen free cable is a high security cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended for public places and for all installations where it is necessary avoid electric interference of nearby circuits.
