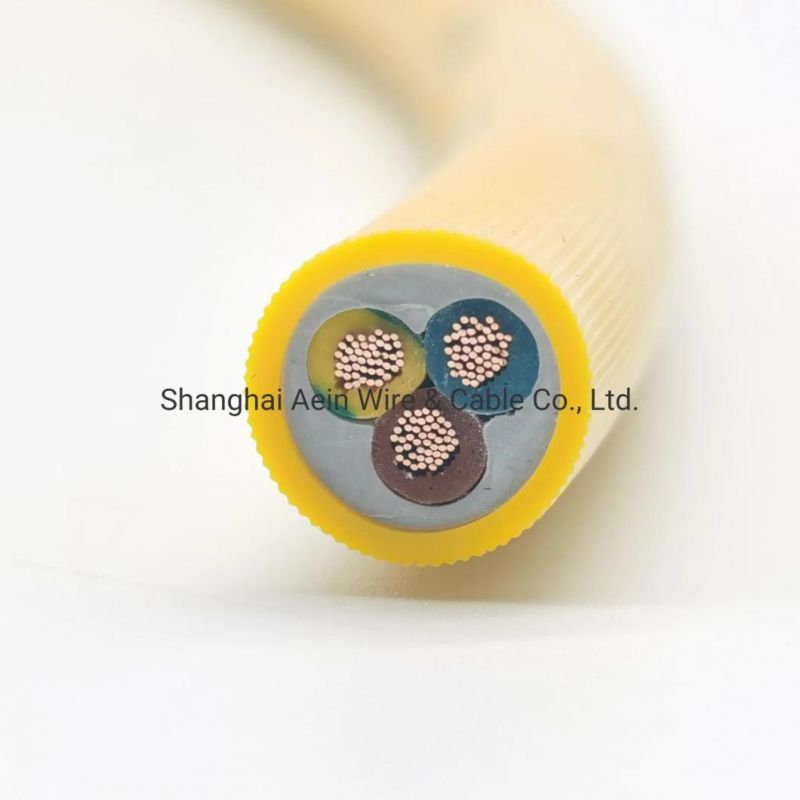

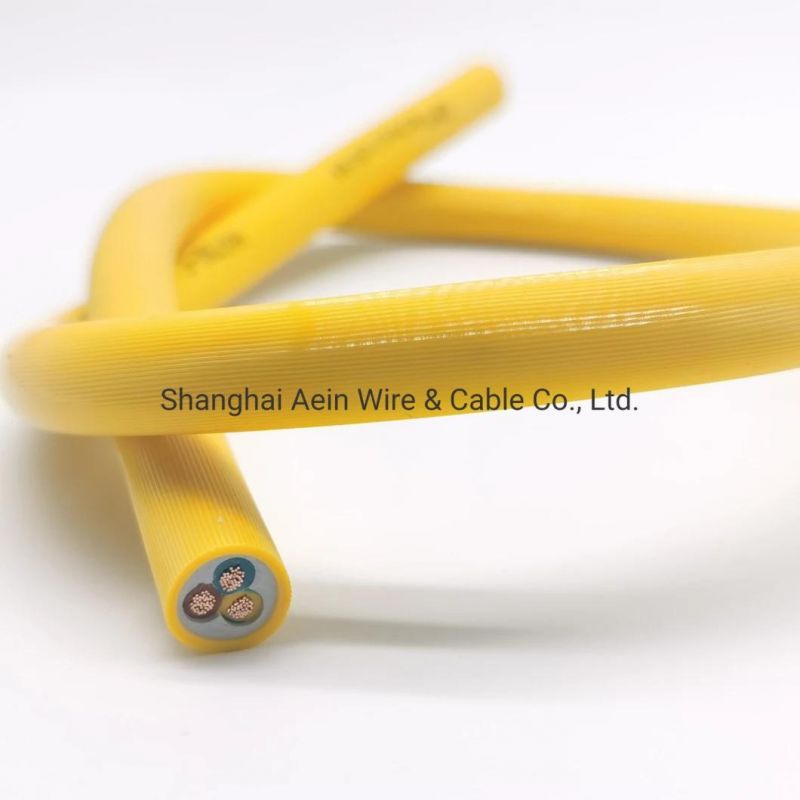

Fg18om16 0.6/1kv Lsoh Signalling Control and Power Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Underground, Industrial Applications
  • Conductor Material：Copper
  • Sheath Material：Lsoh
  • Insulation Material：Rubber

Base Info

  • Model NO.：FG18OM16 Cable
  • Material Shape：Round Wire
  • Range of Application：Industrial Applications
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multiple core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFG18OM16 CableConductorClass 5 flexible copperInsulationRubberInner SheathLSOHOuter SheathLSOH thermoplastic compound type M16Nominal VoltageU0/U: 0.6/1kVTest voltage4000 VTemperature Range-25°C ÷ +90°C on the conductor
Max temp. of short circuit: 250°C on the conductorColorOptionalCertificationTUV, CEApplicationPower cables, indoor use also in wet environments, outdoor installation, fixed laying on bare walls or steel structures, in pipes or underground. In places with risk of fire, to guarantee people safety, like schools, hospitals, hotels, shopping malls, cinemas, offices etc. Cables suitable for electrical power systems in constructions and other civil engineering buildings, in order to limit fire and smoke production and spread, in accordance with the European Construction Product Regulation (CPR) Class B2ca-s1a,d1,a1.
