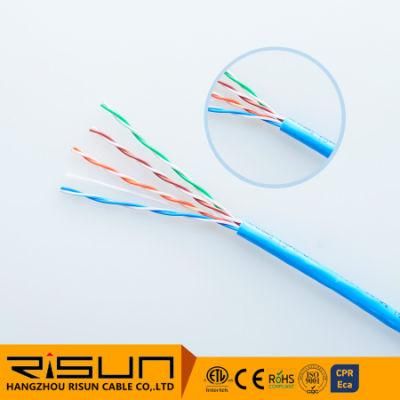

Factory UTP Cat5e Communication Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：UTP Cat5e
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, ETL SGS CPR
  • Color：White
  • Transport Package：3.65kg,Reel
  • Trademark：Risun or OEM
  • Origin：China
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²



Electrical Properties:



Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67%



Technical Performance:



          Attenuation         RL    Next        PS Next       (Mhz)          (dB/100M)        (dB)     (dB)      (dB/100m)       1MHz               2.0         20    65.3          63.5       4MHz               4.1         23    56.3          54.2       8MHz               5.8        24.5    52.4          50.5      10MHz               6.6         25    51.3          49.2      16MHz               8.2         25    49.3          47.4      20MHz               9.3         25    48.8          46.9      25MHz              10.4         24    45.3          43.4   31.25MHz              11.7         23    43.0          41.8     62.5MHz              17.0         21    39.2          37.2     100MHz              22.0         20    36.3          34.4



Packing:
Factory UTP Cat5e Communication Cable

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.



Production line:



Factory UTP Cat5e Communication Cable

RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.


                                                        WELCOME TO RISUN

Risun is a manufacturer and exporter of high quality Lan cable/Network cable,coaxial cable, alarm cable and telephone cable in China.

95% of our goods for the export market. 17 years of experience in this field makes us very familiar with export handling.

We have customer in more than 40 countries all over the world.

In the past 17 years, we have already get ETL, CE, Rohs, ISO9001 certification.



Our Tenet: If we can not be the best, we be the most suitable.
