• Model NO.：SP-MI
• Material Shape：Round Wire
• Range of Application：Temperture Measurement
• Certification：RoHS
• Brand：Ohmalloy,OEM

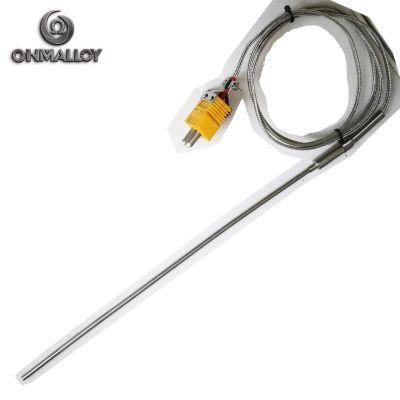

• Name：High Temperature Mineral Insulated Thermocouple Wi
• Mi Length：as Customer Requirement
• Tail Handling：Sealed or Open(as Customer Requirement)
• Transport Package：Plywood Case
• Specification：As customer requirement
• Trademark：OHMALLOY,OEM
• Origin：China
• HS Code：85444929
• Production Capacity：100000 Meters , Month

Wire Diameter(D)

And Tolerance

Sheath Thickness(S)

Mini Value

Wire Diameter(C)

Mini Value

Insulation Thickness(I)

Mini Value

5. Connector:usually this part made by spring to increase bending possibilities.

6. Extension Cable:when chose the compensation/ Extension type, it should in line with the thermocouple index

In actual temperature measurement, usually there are long measuring distance with the measuring device, a thermocouple compensation wire is generated to compensate the temperature difference caused by the temperature change between the measuring device and the thermocouple connecting piece.

The compensation cable has the following advantages: improving thermocouple temperature measurement line physical properties and mechanical properties; improving the measurement line flexibility and making the connection convenient by using multi-strand core or small-diameter compensation wire; easy to shield external interference; reducing measuring lines cost.

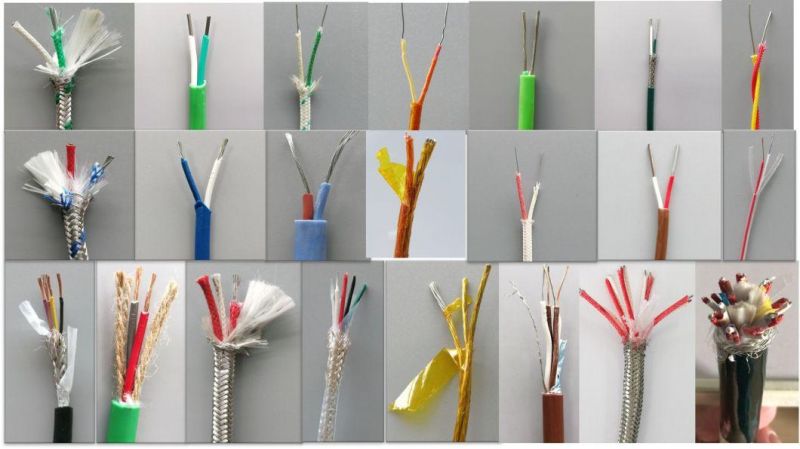

Thermocouple Cable Grade

A:Extension Grade Cable

Whose wire composition is totally as the same as the thermocouple wire, remarked by the letter"X"after the thermocouple symbol number, such as"KX""JX""TX"

B:Compensation Grade Cable

Whose wire composition is different from the thermocouple wire, but its wire electromotive force (EMF) value is the same as thermocouple wire only at 0-100ºC or 0-200ºC. It remarked by the letter"C"after the thermocouple symbol number, such as"KC""JC""TC"
