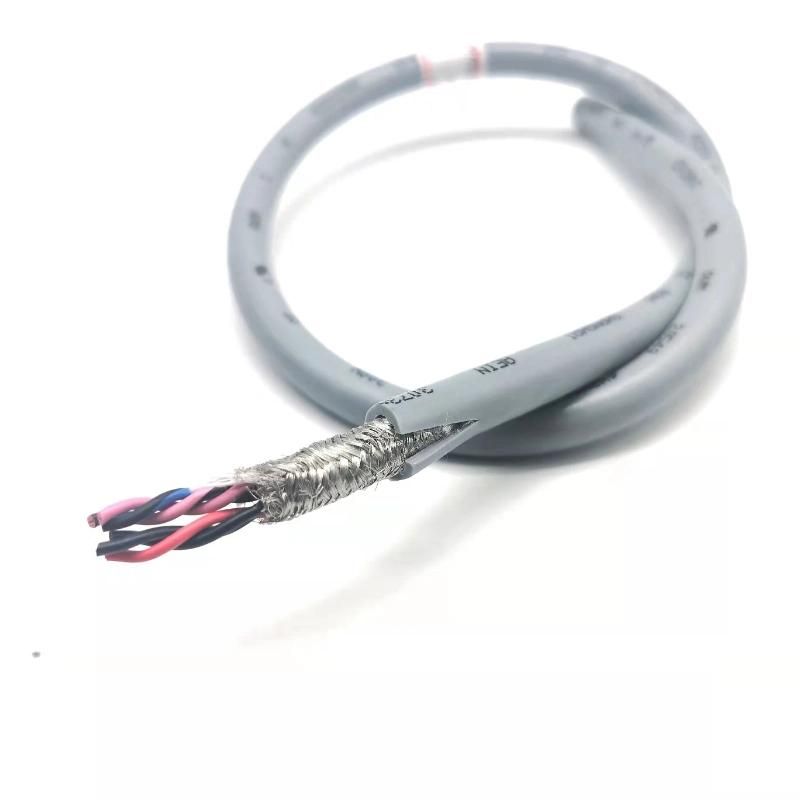

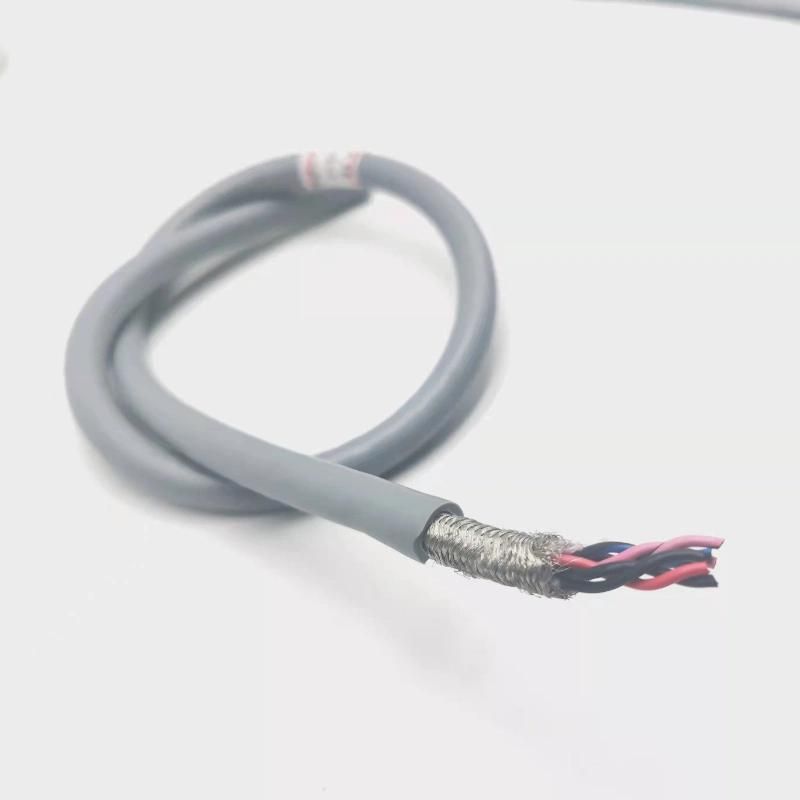

Lihch-Tp Cable Halogen-Free Flame-Retardant Twisted Pair Shield Data Cables

Shanghai Aein Wire & Cable Co., Ltd.

Type：Insulated
Conductor Type：Stranded
Conductor Material：Copper
Sheath Material：Low Smoke and Halogen Free Sheath
Insulation Material：Low Smoke and Halogen Free Insulation
Material Shape：Round Wire

Base Info

Model NO.：LiHCH-TP Cable
Range of Application：Electrical Facilities
Certification：ISO9001, CE, UL, RoHS
Brand：Aein
Transport Package：Optional
Specification：Multicore
Trademark：AEIN
Origin：Shanghai
HS Code：8544492100

Description

ItemLiHCH-TP Cable Halogen-free Flame-retardant Twisted Pair Shield Data Cables ConductorCopper wire bareInsulationSpecial low smoke and halogen free sheathShieldTinned copper wire braided shield,coverage rate 80%Outer sheathSpecial low smoke and halogen free sheathCore NumberMulticores (As client's requirement)Nominal VoltageUo/U 250 VTest Voltage1200 VTemperature-40ºC ~ + 70 ºCColorOptionalApplicationWidely suitable for fixed installation or flexible application in low-mechanical stress, no mechanical tension or load, non-dynamically controlled movable dry environment. The core twisted structure design can effectively reduce the crosstalk inside the cable, and the high-conductivity shielding material can effectively prevent the interference of strong external electric fields and ensure the integrity and stability of data transmission. Commonly used for signal connection, measurement, control, calling and two-way intercom system, clock device, electronic weighing equipment and office electrical equipment. Cables with halogen-free flame-retardant materials will not release toxic or harmful gases in the event of a fire. Usually installed in public buildings, laboratories, trading and transportation centers, but not suitable for outdoor use.
