• Brand：Risun or OEM
• Insulation：HDPE
• Conductor：24AWG
• Pairs：3
• Transport Package：305m,Pull Box, 2box,Carton
• Origin：Hangzhou, Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Brand Risun or OEM Insulation HDPE Conductor 24AWG Pairs 3 Transport Package 305m/Pull Box, 2box/Carton Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

3 Pair 6 wires 0.5mm Telephone Cable 300m/pull box

100% Bare Copper Solid Conductors

This cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime.

Great for Telecommunication Networks

Our 3 Pair 6 wires 0.5mm telephone cable is perfect for any voice communications and telephone networks.

The Quality and Convenience You Need

This cable comes in a pull box for easy pulling, it features color striped pairs for easy identification, and a rip cord for easy stripping.

construction:

conductor	24awg solid CU
insulation	hdpe 0.90±0.02mm
sheath	4.5±0.1mm pvc (fr,rohs,uv)/ lsoh / pe
cores/pairs	6/3

Environmental Specifications:

Rated Temperature	+70 °C ( + 158º F)
Flammability Test	CM, CMR

Mechanical Characteristics:

Before Aging Tensile Strength(Mpa)	≥10.34
Elongation(%)	≥100
Aging Condition	(100.0±1.0)×168
Tensile Strength(Mpa)	≥70% of unaged
Elongation(%)	≥45% of unaged

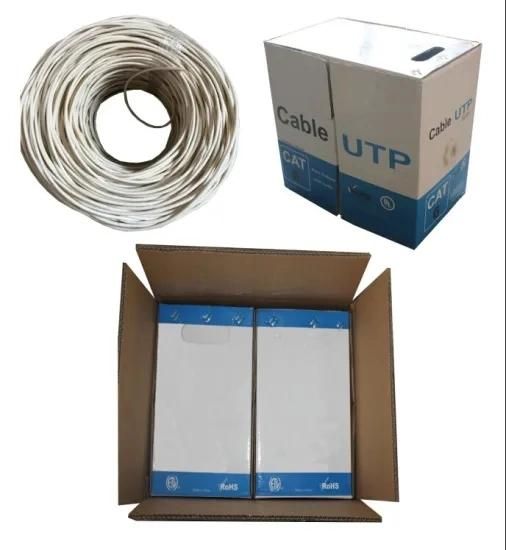

Packing

1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

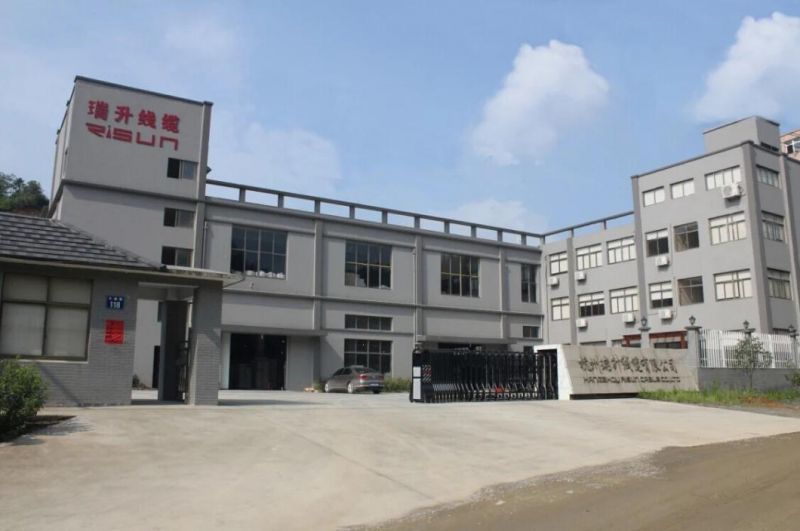

Company Profile

Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china. Our main cables include CAT5E, CAT6,CAT6A, cat7, multiple cores (pairs) of alarm cable and telephone cable, audio cable, Jumper wire, KNX Cable, RG59, RG6, RG11, RG58/U, KX6, RG213 etc.

95% of our goods for the export market. 15 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.In the past 15 years, we have already get ETL,CE,ROHS, ISO9001,CPR certification.

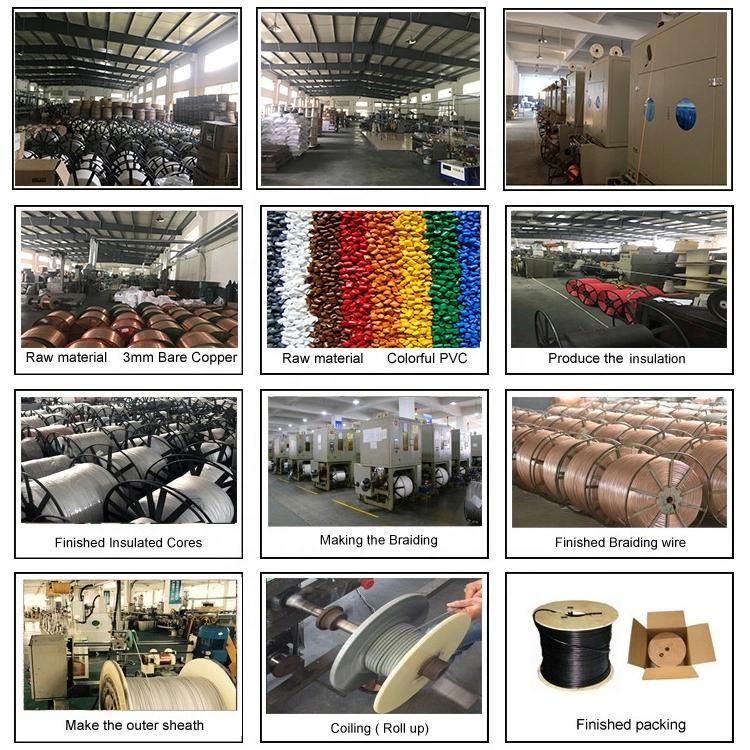

workshop:

Welcome to RISUN,we will be happy to serve you!
