Hcafby-50-5 (PLMR-300) , 50 Ohm Braided Coaxial Cable
Jiangsu Hengxin Technology Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, RF Cable
- Conductor Material：Bonded Aluminum,Polyester,Aluminum Tape+Tc Wire Br
- Cover Material：PE or LSZH
- Type：PE or LSZH
- Material Shape：Flat Wire
- Conductor Type：Bonded Aluminum,Polyester,a
Base Info
- Model NO.：PLMR-300
- Wire Core Material：Physical Foam Polyethylene PE
- Certification：ISO, RoHS
- Model：Plmr-300
- Brand：Hengxin
- Transport Package：Pallet, Cartoon
- Specification：500 METER,PALLET
- Trademark：HENGXIN
- Origin：Jiangsu Province, China
- HS Code：85442000
- Production Capacity：10km Per Day
Description
Construction Product Type HCAFBY-50-5-6(PLMR300) HCAFBYZ-50-5-6(PLMR300) Product Code 2.3.21.01 2.3.22.11 Jacket Colour BLACK Inner Conductor Material CCA( Copper Clad Aluminum) Dielectric Material Physical Foam Polyethylene PE Outer Conductor Material Bonded aluminum/polyester/aluminum tape+TC Wire Braiding Outer Conductor Coverage 80% Jacket Material PE LSZH Dimensions Inner Conductor 1.80±0.02 mm Dielectric 4.80±0.10 mm Shields 5.60±0.20 mm Jacket 7.60±0.20 mm Electrical Property Capacitance 80pF/m Impedance 50±2 Ω Velocity 82.0% Insulation Resistance >5000 MΩ.km Cut-off Frequency 22.8 GHz Withstanding Voltage(AC) 2.0 KV Sparkover Voltage 3.0 KV Peak Power Rating 9.23 KW Screen Efficiency ≥85 dB VSWR 800~1000MHz ≤1.15 1700~2000MHz ≤1.20 2000~2400MHz ≤1.25 Attenuation Frequency(MHz) Attenuation(dB/100 m) Frequency(MHz) Attenuation(dB/100 m) 100 6.3 1500 26.8 150 7.8 1800 29.7 280 10.8 1900 30.6 350 12.1 2000 31.5 400 13.0 2200 33.3 800 18.9 2500 35.8 900 20.2 2800 38.3 1200 23.7 3000 39.9 *Maximum attenuation value shall be 110% of the nominal attenuation value. Environmental and Mechanical Property Operating Temperature Range -40ºC~+85ºC Minmum Bending Radius 75 mm Minmum Bending Temperature -15ºC Standard Conditions: VSWR 1.0, the cable temperature 20 ºC, environment temperature 40 ºC, the inner conductor temperature 100 ºC Marking requirements:HENGXIN TECHNOLOGY HCAFBY(Z)-50-5 XXXXXXXX(series NO.) 0000m Capacity Per Spool:500m;Spool Packing:φ480*φ150*310mm

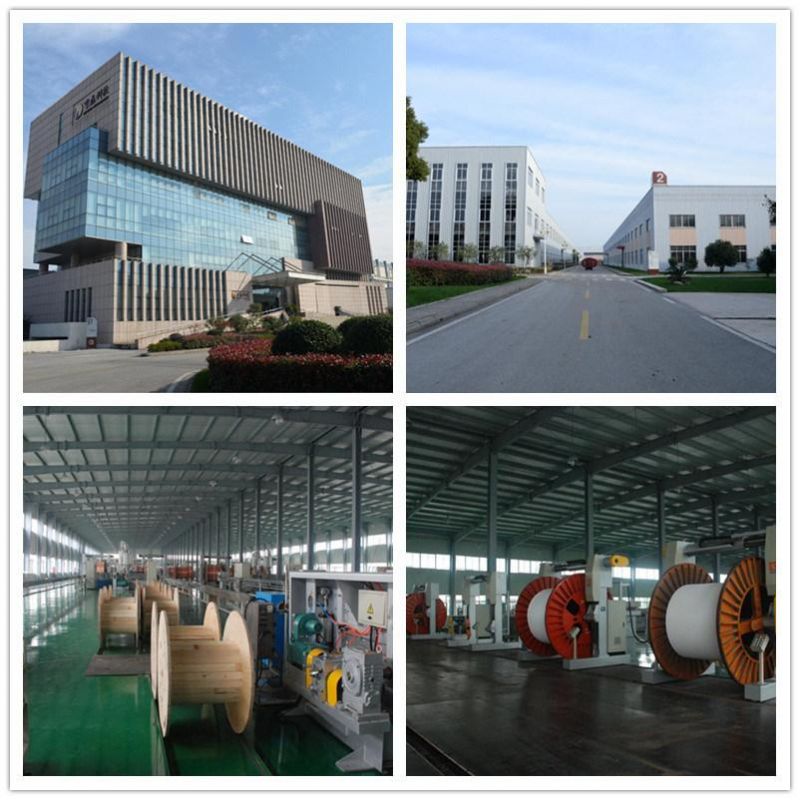

OUR COMPANY/HENGXIN TECHNOLOGY
