Plmr-240, 50 Ohm Braided Coaxial Cable
Jiangsu Hengxin Technology Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, RF Cable
- Conductor Material：Bonded Aluminum,Polyester,Aluminum Tape+Tc Wire Br
- Cover Material：PE or LSZH
- Type：PE or LSZH
- Material Shape：Flat Wire
- Conductor Type：Bonded Aluminum,Polyester,a
Base Info
- Model NO.：PLMR-240
- Wire Core Material：Physical Foam Polyethylene PE
- Certification：ISO, RoHS
- Model：Plmr-240
- Brand：Hengxin
- Transport Package：Pallet, Cartoon
- Specification：500 METER,PALLET
- Trademark：HENGXIN
- Origin：Jiangsu Province, China
- HS Code：85442000
- Production Capacity：10km Per Day
Description
Construction Product Type PLMR-240 PLMR-240 Product Code 2.3.35.01 2.3.36.02 Jacket Colour BLACK Inner Conductor Material C(Copper) Dielectric Material Physical Foam Polyethylene PE Outer Conductor Material Bonded aluminum/polyester/aluminum tape+TC Wire Braiding Outer Conductor Coverage 90% Jacket Material PE LSZH Dimensions Inner Conductor 1.42 ±0.02mm Dielectric 3.81 ±0.10mm Shields 4.50±0.20 mm Jacket 6.10±0.20 mm Electrical Property Capacitance 78 pF/m Impedance 50±2 Ω Velocity 85.0% Insulation Resistance >5000 MΩ.km Cut-off Frequency 31 GHz Withstanding Voltage(AC) 1.5 KV Sparkover Voltage 5.0 KV Peak Power Rating 5.52 KW Screen Efficiency ≥90 dB VSWR 800~1000MHz ≤1.15 1700~2000MHz ≤1.20 2000~2400MHz ≤1.25 Attenuation Frequency(MHz) Attenuation(dB/100 m) Frequency(MHz) Attenuation(dB/100 m) 100 8.0 1800 35.6 150 9.9 1900 36.5 220 12.0 2000 37.7 450 17.3 2200 39.5 900 24.8 2500 42.4 1200 28.7 2800 44.8 1500 32.4 3000 46.5 *Maximum attenuation value shall be 110% of the nominal attenuation value. Environmental and Mechanical Property Operating Temperature Range -40ºC~+85ºC Minmum Bending Radius 61 mm Minmum Bending Temperature -15ºC Standard Conditions: VSWR 1.0, the cable temperature 20 ºC, environment temperature 40 ºC, the inner conductor temperature 100 ºC Marking requirements:HENGXIN TECHNOLOGY PLMR-240-3 XXXXXXXX(series NO.) 0000m Capacity Per Drum:500m;Drum Packing:Ф440*Ф150*230mm

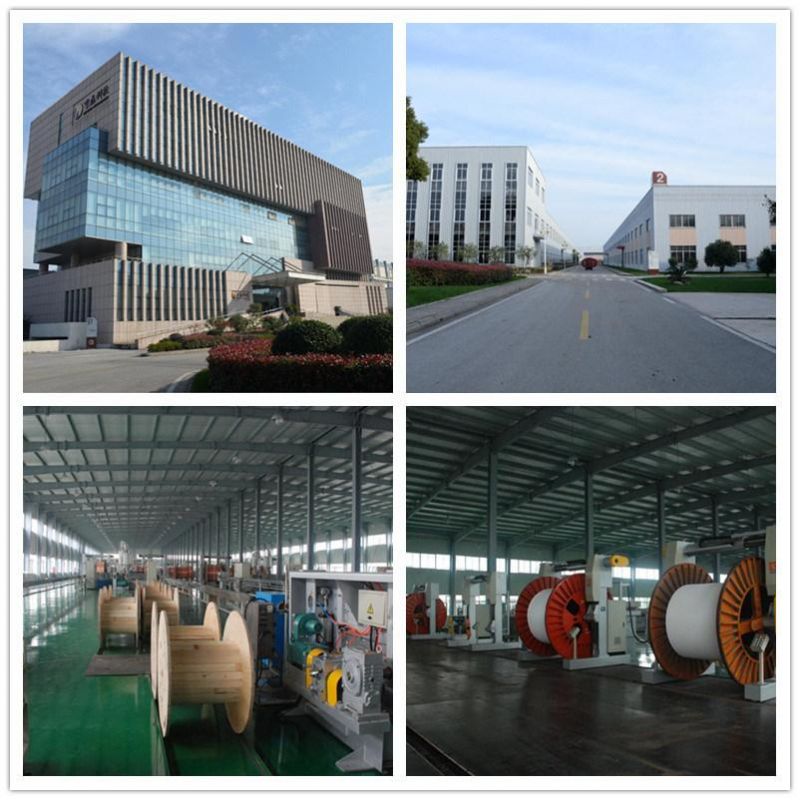

OUR COMPANY/HENGXIN TECHNOLOGY
Hengxin was listed on the Main Board of the Singapore Exchange Securities Trading Limited (SGX-ST) on 11 May 2006, and was primarily dual listed on the Main Board of The Stock Exchange of Hong Kong Limited (SEHK) on 23 December 2010. Founded in 1996 with its manufacturing base in Yixing City alongside Taihu Lake, Jiangsu Province, China, it is involved in the research, manufacture and sale of antennas, RF Cables and accessories for wireless communication applications, accessories consisting of connector, jumper cable, arrester, coupler and splitter, etc. Quality and safety are handled with the highest regard by Hengxin. Since 1996, it has been certified with ISO9001 Quality Management System Certification, ISO14001 Environment Management System, OHSAS 18001 Occupational Health and Safety Management Certification, and has also been appraised as a Hi-Tech Enterprise of China National Torch Planning , obtained 29 utility type patents from the Property Rights Bureau of National Information.
OUR EXHIBITIONS
OUR CERTIFICATES
FAQ
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available. Q: May I visit your factory?
A: Sure, welcome any time with prior notice. Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us. Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity. Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you. Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.
