• Model NO.：J-GSIGSI
• Material Shape：Round Wire
• Range of Application：High Temperature Environments
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Fongming
• Name：Thermocouple Wire
• Conductor：Fe,Cu-Ni
• Size：2*26-2*14AWG
• Color：as Requirements
• Insulation：High Silica Braid
• Jacket：High Silica Braid
• Lead Time：5-7 Days
• Model：J-Gsi-Gsitype
• Transport Package：Carton Packing
• Specification：2*26-2*14AWG
• Trademark：FONGMING
• Origin：Yangzhou, Jiangsu Province, China
• HS Code：8544492100
• Production Capacity：10000000m Per Year

Basic Info.

Model NO. J-GSIGSI Material Shape Round Wire Range of Application High Temperature Environments Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Fongming Name Thermocouple Wire Conductor Fe,Cu-Ni Size 2*26-2*14AWG Color as Requirements Insulation High Silica Braid Jacket High Silica Braid Lead Time 5-7 Days Model J-Gsi-Gsitype Transport Package Carton Packing Specification 2*26-2*14AWG Trademark FONGMING Origin Yangzhou, Jiangsu Province, China HS Code 8544492100 Production Capacity 10000000m Per Year

Product Description

J Type high temperatue Fiberglass braid insulation high silica braid jacket thermocouple cable

Description
Name:Thermocouple wire
Model:J-GSi-GSiType
Size:2*26-2*14AWG

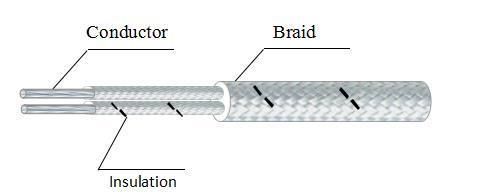

Structure
Conductor:Fe,Cu-Ni
Insulation:High Silica Braid and Silicone Resin Coating
Color:Positive White With Black Stripe Negative White
Jacket:High Silica Braid Braid and Silicone Resin Coating
Color:White White With Black Stripe

Application
For use as high temperature lead wire for internal wiring of appliances, electronic equipment, and lighting fixtures.

Model


Specification

Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3±0.2*2.0±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4±0.2*2.2±0.2
2*22	7/0.25	0.75	0.2	1.2	0.2	1.6±0.2 *2.6±0.2
2*20	11/0.25	0.96	0.2	1.4	0.2	1.8±0.2 *3.0±0.2
2*18	17/0.25	1.19	0.2	1.6	0.2	2.0±0.2 *3.4±0.2
2*16	27/0.25	1.50	0.2	1.9	0.2	2.3 ±0.2*4.0±0.2
2*14	42/0.25	1.87	0.2	2.3	0.2	2.7 ±0.2*4.8 ±0.2

Certificates:


UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.



Packaging & Shipping



1. Package length	200meres 305meter 500meter As customers requirement
2. Package method	Rolls, spool or coil, Pallets if need.
3: Shipping port	Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port

Company Information

Factory Size (Sq.meters):	25,000-30,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	7
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered
