• Model NO.：YJV72 BL40
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Yjv72
• Brand：Yifang

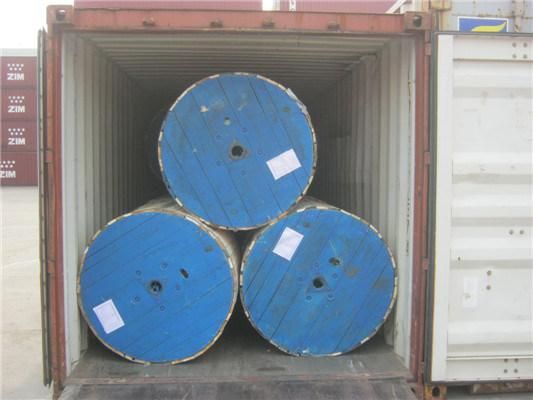

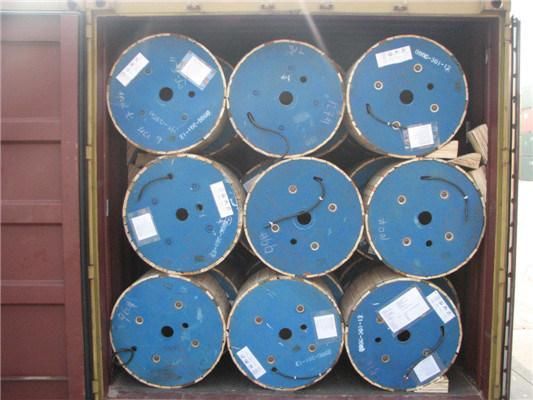

• Transport Package：Wooden Drum or Wooden&Steel Drum
• Specification：630mm2
• Trademark：Yifang
• Origin：Henan Province, China
• HS Code：8544601200
• Production Capacity：500 Kilometers,Month

Conductor Material:CopperConductor Identification:Coloured tape under screenConductor Shape:CircularConductor Flexibility:Stranded class 2Material of the Inner Semi-conductor:Semi-conducting compoundInsulation:XLPE (Chemical)Armour Type:Aluminium wiresScreen:Copper tapeOuter Sheath:PVCInner Sheath:PVCMaterial of the External Semi-conduct:Extruded strippableColour:RedLead Free:YesRated Voltage Uo/U (Um):6350/11000V to BS6622 & IEC 60502-2Installation Temperature:Minimum: 0°C
Maximum: 60°CInstallation Type:Direct burial or in ductsOperating Temperature:Minimum: -15°C
Maximum: 90°CShort-circuit Maximum Conductor Temperature:250°CFlame Retardant:Yes, IEC 60332-1Bending Radius:15 x Ø



Part numberCross section
mm²Stranding
mmApprox weight kg/kmApprox overall diameterGland size mmSingle cleatNom. Max. DC-resist conductor 20°C
ohm/kmCurrent rating laid direct
amp

1 Core: Brown Tape

11KVPVC1X501 x 5019/1.781,21028.5321.20.38722111KVPVC1X701 x 7019/2.141,50030.5321.20.26827011KVPVC1X951 x 9519/2.521,70032.4321.40.19332111KVPVC1X1201 x 12037/2.032,10534.2401.40.15336311KVPVC1X1501 x 15037/2.252,50536.4401.60.12441011KVPVC1X1851 x 18537/2.522,90037.7401.60.099145511KVPVC1X2401 x 24061/2.253,53240.650s1.60.075452011KVPVC1X3001 x 30061/2.524,23042.750s1.80.0601580

1 Core: Brown Tape

11KVPVC1X4001 x 40061/2.855,14546.450s2.00.047065011KVPVC1X5001 x 50061/3.206,45051.0502.00.036671011KVPVC1X6301 x 630127/2.527,95059.963sR90.028376111KVPVC1X8001 x 800127/2.859,72060.063R100.022181211KVPVC1X10001 x 1000127/3.211,86064.075sR110.0176868

Certificates:
