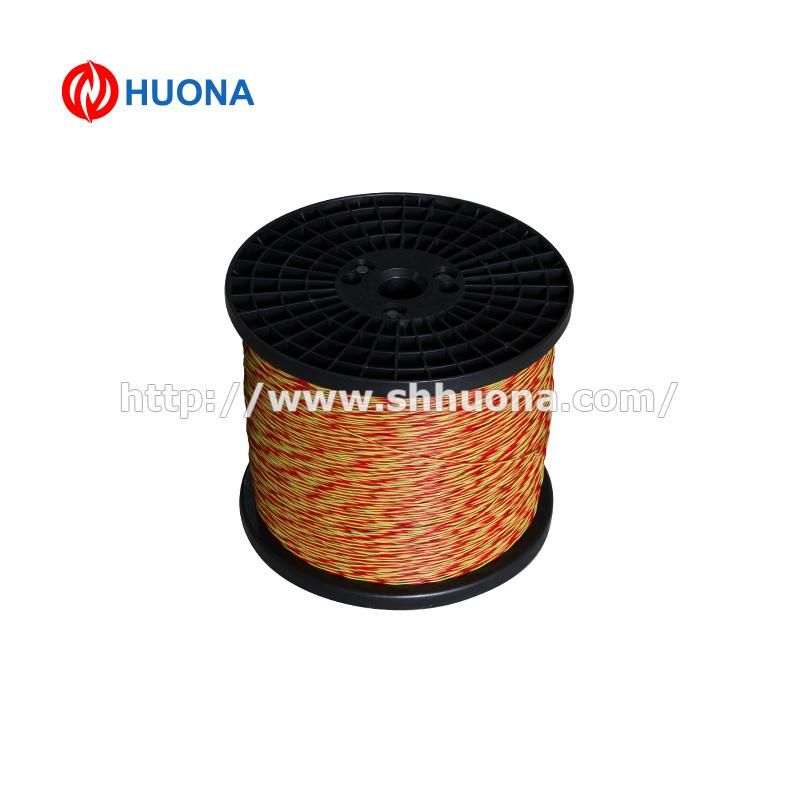

AWG 28 Type K Thermocouple Extension Wire with PTFE Insulation Twisted Thermocouple Cable Red and Yellow
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：7*0.2mm
- Application：Heating, -
- Conductor Material：Kc
- Sheath Material：Fiberglass
- Insulation Material：Fiberglass
Base Info
- Model NO.：KX
- Material Shape：Round Wire
- Range of Application：Compensation
- Certification：ISO9001, CE, RoHS
- Brand：Huona
- Section Area：0.5mm2, 0.75mm2, 1.0mm2
- Grade：I, II, III
- Usage：Thermocouple Sensors
- OEM：Yes
- Types：K,T,J,N,B,S,R
- Shape：Single, Pair, Stranded
- Insulation：Fiberglass, PVC, PTFE, Silicon Rubber
- Temperature Range：-60-1100
- Shield：Avaiable

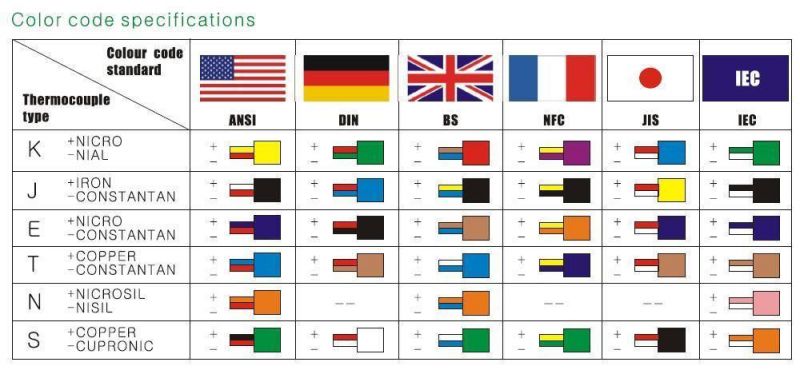

- Colour：IEC, ANSI, BS
- Transport Package：on Reel, Carton Box
- Specification：According to clients requirements
- Trademark：Huona
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：1000 Tons, Year
Description
Negative
Name
Code
Name
Code
S
SC
copper-constantan 0.6
copper
SPC
constantan 0.6
SNC
R
RC
copper-constantan 0.6
copper
RPC
constantan 0.6
RNC
K
KCA
Iron-constantan22
Iron
KPCA
constantan22
KNCA
K
KCB
copper-constantan 40
copper
KPCB
constantan 40
KNCB
K
KX
Chromel10-NiSi3
Chromel10
KPX
NiSi3
KNX
N
NC
Iron-constantan 18
Iron
NPC
constantan 18
NNC
N
NX
NiCr14Si-NiSi4Mg
NiCr14Si
NPX
NiSi4Mg
NNX
E
EX
NiCr10-Constantan45
NiCr10
EPX
Constantan45
ENX
J
JX
Iron-constantan 45
Iron
JPX
constantan 45
JNX
T
TX
copper-constantan 45
copper
TPX
constantan 45
TNX
The insulation material can be tailor made as per your request.
Application:
Please feel free to contact us if there is any inquiry or purchase plan on thermocouple extension wires or cables.
