• Model NO.：STA Armoured Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Steel Wire Armour Cable
• Brand：Yifang
• Cores：Multi Cores
• Standards：IEC,BS,Ieca
• Outer Sheath Color：Black
• Armour Material：Galvanized Steel Wire

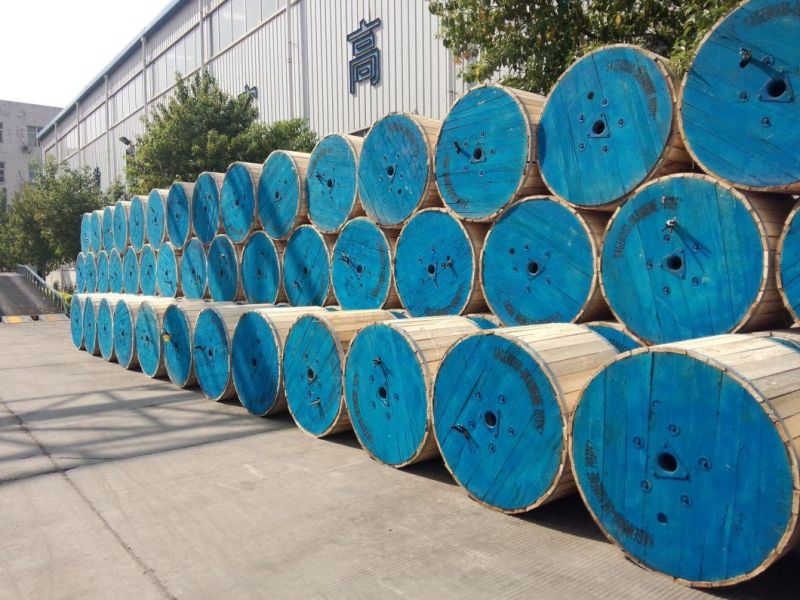

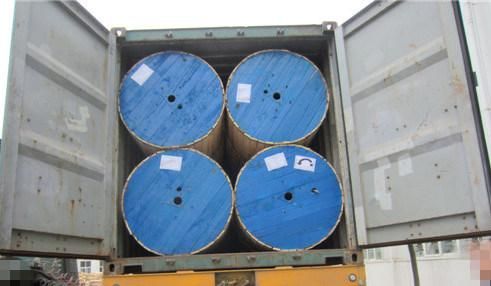

• Transport Package：Drum, Steel Drum
• Specification：1.5-800mm2
• Trademark：Yifang cable
• Origin：Zhengzhou Henan
• HS Code：8544492100
• Production Capacity：5000km,Year

Basic Info.

Model NO. STA Armoured Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model Steel Wire Armour Cable Brand Yifang Cores Multi Cores Standards IEC/BS/Ieca Outer Sheath Color Black Armour Material Galvanized Steel Wire Transport Package Drum, Steel Drum Specification 1.5-800mm2 Trademark Yifang cable Origin Zhengzhou Henan HS Code 8544492100 Production Capacity 5000km/Year

Product Description

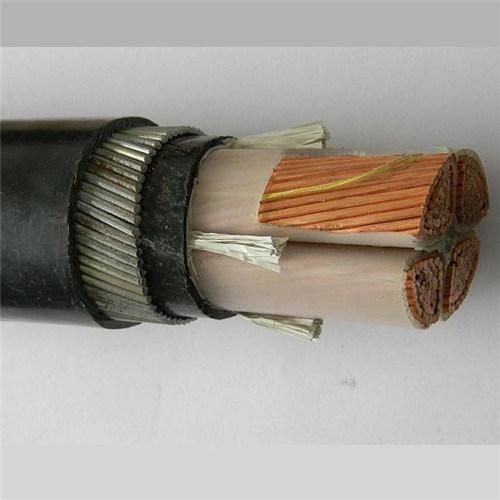

Copper Wire XLPE Insulation Electrical Galvanized Steel Wire Armour Cable

Application and Description:

0.6/1KV, copper conductor, XLPE/PVC insulated power cable is for Iindustrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.

Standards: IEC 60502 / BS 5467 / DIN / ICEA


Design

Conductor: Stranded circular copper - class 2 according to IEC 60228 / BS EN 60228: 2005

Cores: 1C, 2C, 3C, 4C, 5C, 3C+1E, 4C+1E, 3C+2E

Insulation: XLPE / PVC

Filler: Laying up with fillers

Inner sheath: PVC / LSZH

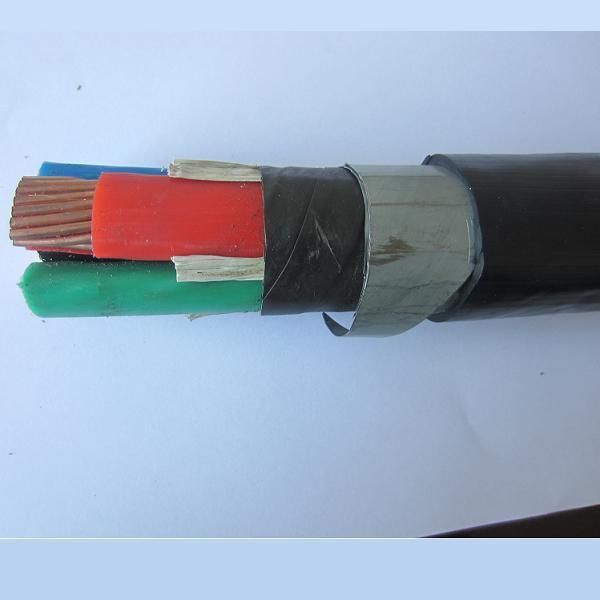

Armour: Steel or steel tapes ( aluminium wires or aluminum tape can be customized)

Outer sheath: PVC / LSZH

Rated Voltage Uo/U (Um): 0.6/1 KV

Range of Nominal cross section: 1.5 mm2 ~ 630 mm2

8AWG~4/0AWG, 300MCM, 500MCM, 750MCM, 1000MCM

Mechanical characteristics:

Mechanical resistance to impacts: Excellent

Cable flexibility: Rigid

Usage characteristics:

Max. Conductor temperature in service: 70° C(PVC insulation), 90° C(XLPE insulation)

Short-circuit max. Conductor temperature: 250° C

Operating temperature, range: -25...60° C

Weather resistance: Very good

Flame retardant: C2, NF C 32-070

Chemical resistance: Accidental

Water proof: Intermittent

Packaging: Cut to length



Dear friends, we can design and produce power cable with International and national standards according to your request.

Type	Description	Number of cores	Nominal cross section of conductor
YJV32	CU/XLPE/SWA/PVC Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
YJLV32	AL/XLPE/SWA/PVC Power Cable
YJV72	CU/XLPE/Non-magnetic SWA or AWA/PVC Power Cable	1	1.5~1000mm2
YJLV72	AL/XLPE/Non-magnetic SWA or AWA/PVC Power Cable
YJV33	CU/XLPE/SWA/PE Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
YJLV33	AL/XLPE/SWA/PE Power Cable
Z-YJV32	CU/XLPE/SWA Flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
Z-YJLV32	AL/XLPE/SWA Flame-retardant Power Cable
WDZ-YJY33	CU/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
WDZ-YJLY33	AL/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable
N-YJV32	CU/XLPE/SWA Fire-resistant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
