• Model NO.：Flat Electric Cable
• Material Shape：Round Wire
• Range of Application：House Building
• Certification：ISO9001, CE, UL, CCC
• Brand：Yifang
• Standards：Bs 6500,Bs7919,309 Y,Ts 9760, IEC 227, VDE 0281
• Conductor：Class 2 , Class 5
• Cores Number：1~5
• Bs Size：3092y,3093y,3094y,3095y

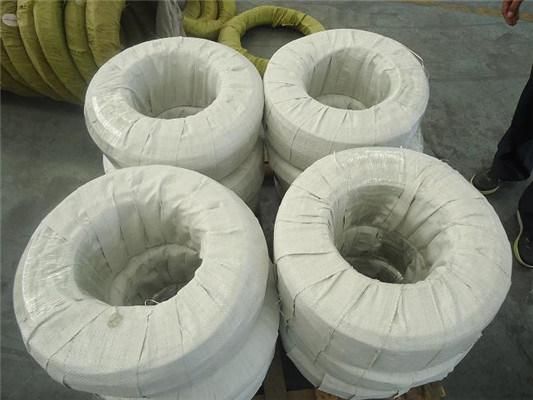

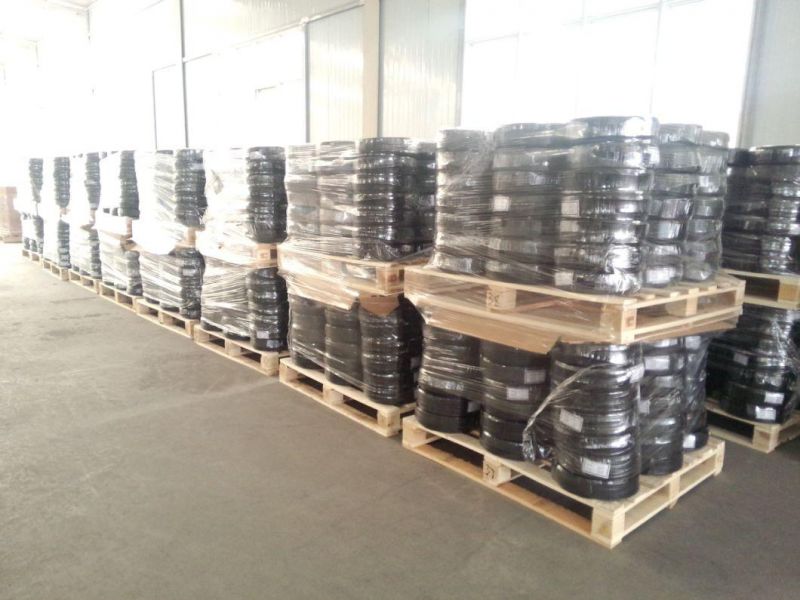

• Transport Package：Coil, Roll, Reel, Drum. 100m,Roll or More
• Specification：3x2.5
• Trademark：Yifang cable
• Origin：China
• HS Code：8544492100
• Production Capacity：60000km,Year

Nominal section(mm²)Number of conductorsToplimit of overall diameter(mm)Maximum DC resistance(20ºC)(Ω/km)Minimum insulation resistance(70ºC)(MΩ.km)Recommended value of carrying capacity(A)Reference weight(kg/kmm)2x0.7514.6x7.124.50.01213422x1.014.8x7.418.10.01116492x1.515.3x8.512.10.01120652x2.516.2x10.17.410.01027972x416.7x11.14.610.0085381402x617.5x12.53.080.0070501922x1029.5x16.21.830.0065693063x0.7514.6x9.624.50.0129.5603x1.014.8x10.118.10.01111703x1.515.3x11.712.10.01113953x2.516.2x14.07.410.010211423x417.0x15.84.610.0085272133x617.5x17.53.080.0070342843x1029.5x23.01.830.006555457
