• Model NO.：Interlock armored cable
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001
• Brand：Topnet
• Sheath Material：PVC
• Fiber Type Sm：G652D, G657A1, G657A2, G657b3
• Fiber Type mm：Om1, Om2, Om3, Om4, Om5

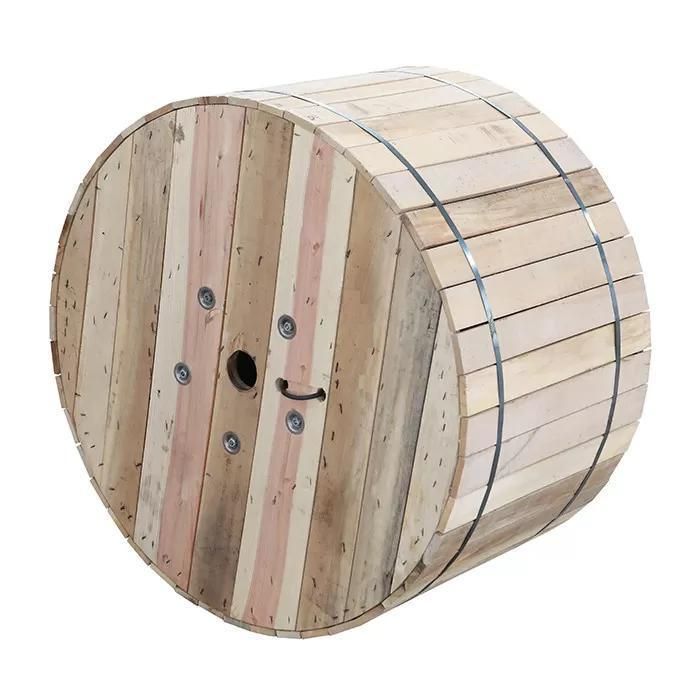

• Transport Package：Wooden Drum
• Specification：11.6mm
• Trademark：Topnet
• Origin：China
• HS Code：8544700000
• Production Capacity：5000km Per Month

Basic Info.

Model NO. Interlock armored cable Core Multicore Certification RoHS, UL, CE, ISO9001 Brand Topnet Sheath Material PVC Fiber Type Sm G652D, G657A1, G657A2, G657b3 Fiber Type mm Om1, Om2, Om3, Om4, Om5 Transport Package Wooden Drum Specification 11.6mm Trademark Topnet Origin China HS Code 8544700000 Production Capacity 5000km Per Month

Product Description

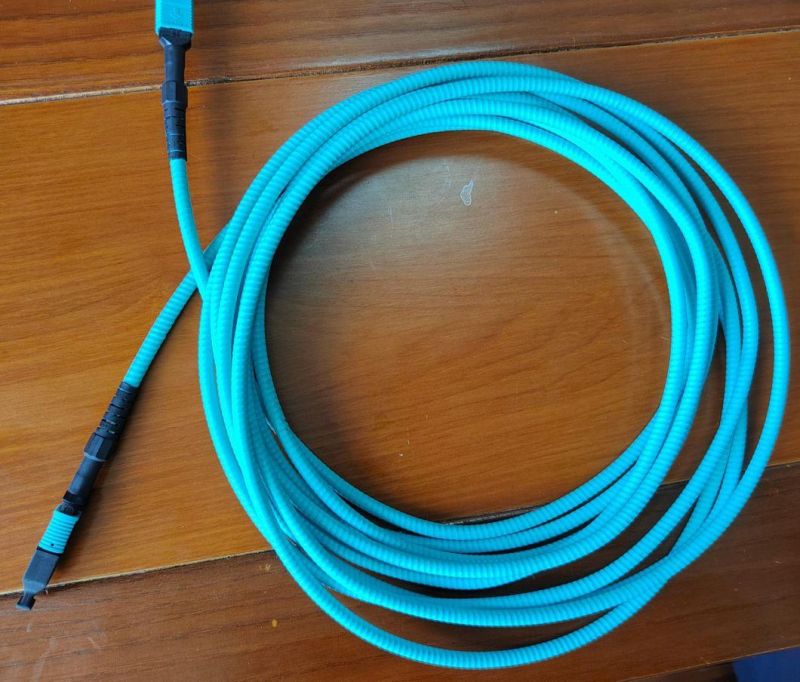

Indoor rated Interlock armored Multimode fiber Optical optic cable




Description
Aluminum Interlocking Armored (AIA) Micro Distribution cable consists of either a Riser or Plenum overall jacket with 2-144 fibers and water blocking Kevlar® yarns.
Aluminum Interlocking Armored is indoor rated.

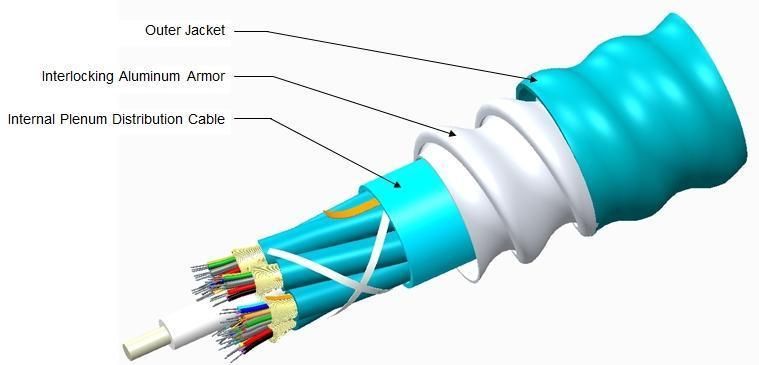

Aluminum Interlocking Armored cable is designed to protect the encased fibers. The cable's spirally wrapped internal aluminum strip provides high crush resistance, as well as helping to prevent damage from rodents and rugged environments.


Features

• High crush resistance and rodent resistance
• Internal spirally-wrapped aluminum strip
• Installation without additional inner duct/conduit
• Indoor only

Specifications

FIBER
Fiber Count	2, 6, 12, 24, 48, 72, 96, or 144 OM3 or OS2
Fiber Type	OM3 or OS2
Fiber Coating	250 µm "Soft Peel" S-Type Coating
Color Coding	Per TIA

JACKET
Jacket Type	Plenum Rated PVC (Indoor)
Outer Diameter	Varies by part number
Jacket Color	OM3 = Aqua / OS2 = Yellow
Jacket Markings	Sequential Per Foot
Strength Member	Kevlar + water blocking yarns
Subunits	3.0 mm Loose Tube

PHYSICAL DATA
Storage Temperature	-40°C to +70°C
Operating Temperature	-20°C to +70°C
Max Tensile Load (Installation)	800 N (180 lbf)
Max Tensile Load (Long Term)	600 N (135 lbf)
Rating	FT6 - Plenum

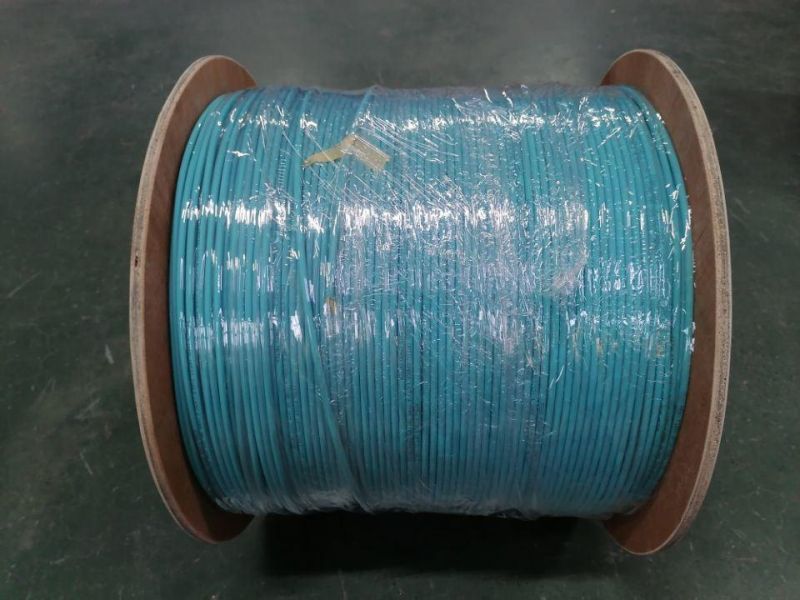

Package
