Aerial Bundled Cable Caai-S 0, 6/1 Kv with Public Lighting

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Industrial
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：No Sheath
  • Material Shape：Round Wire

Base Info

  • Model NO.：CAAI-S
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC
  • Model：Conductores Caai Y Caai-S
  • Brand：OEM
  • Product Name：LV Aerial Bundled Cable Caai-S 0, 6,1 Kv
  • Cable Type 1：Conductores Caai Y Caai-S
  • Cable Type 2：Caai-S 0, 6,1 Kv Con Alumbrado Público
  • Cable Type 3：Los Cables Autoportantes Multi-Conductores De Alum
  • Cable Tipo：Cai-S Y Cai O
  • Cable Tipo 2：Caai-S Y Caai
  • Transport Package：Wooden Drum
  • Specification：1 core, 2 core, 3 core, 4 core, 5 core
  • Trademark：OEM
  • Origin：China(Mainland)
  • HS Code：8544492100
  • Production Capacity：500 Kilometer,Month

Description

TYPEDescriptionRangeof Sectional Area(mm2)CAICopper conductor ,xlpe insulated power cable10-300CAI-SCopper conductor ,xlpe insulated power cable, steel supporting10-300CAAIAluminum conductor, xlpe insulated power cable, with support cable aluminum alloy (The bracket can be nude "ND" or isolated "NA").10-300CAAI-SAluminum conductor, xlpe insulated power cable, with support cable Galvanized steel protected with XLPE.10-300

DATA FOR ORDERS

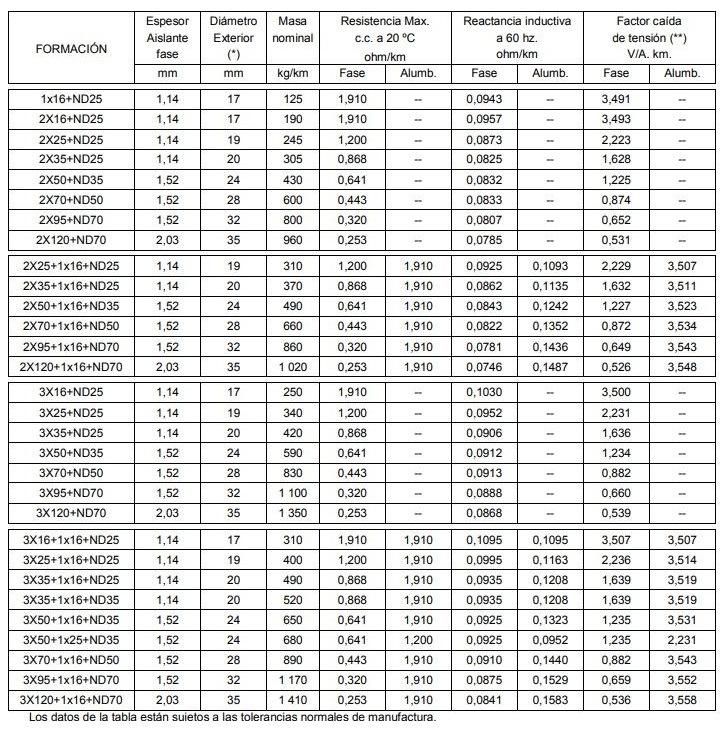

CAAI CABLE (ND)
DIMENSIONAL AND ELECTRICAL CHARACTERISTICS
Aerial Bundled Cable Caai-S 0, 6/1 Kv with Public Lighting

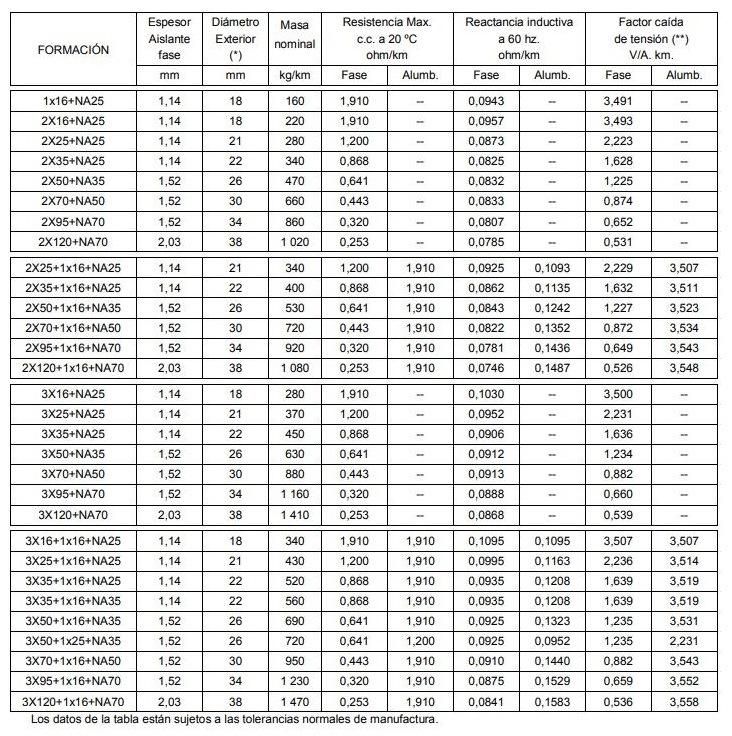

CAAI CABLE (NA)
DIMENSIONAL AND ELECTRICAL CHARACTERISTICS
Aerial Bundled Cable Caai-S 0, 6/1 Kv with Public Lighting

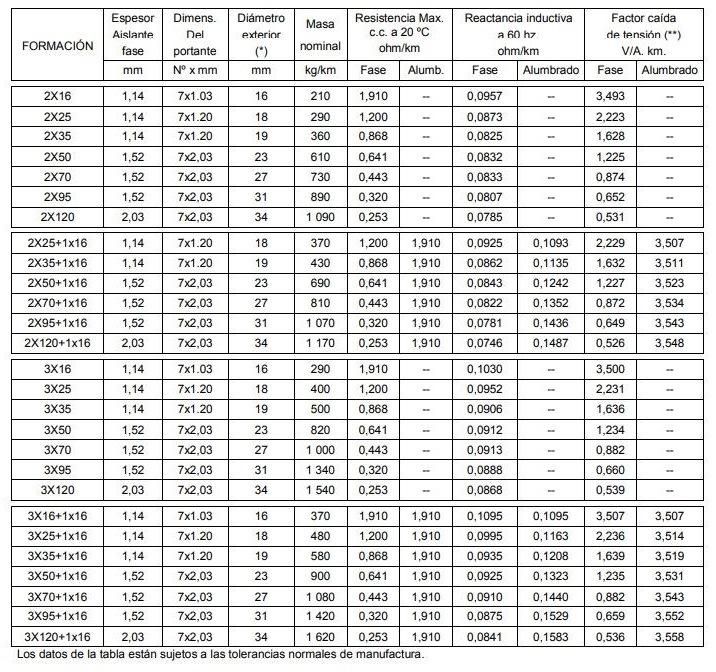

CAAI-S CABLE
DIMENSIONAL AND ELECTRICAL CHARACTERISTICS
Aerial Bundled Cable Caai-S 0, 6/1 Kv with Public Lighting
(*) Outside diameter of the conductors meeting considered for the mechanical design of the line.
(**) Voltage drop factor, for three-phase current, power factor = 0.8 and load factor 100%.
Aerial Bundled Cable Caai-S 0, 6/1 Kv with Public Lighting*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
