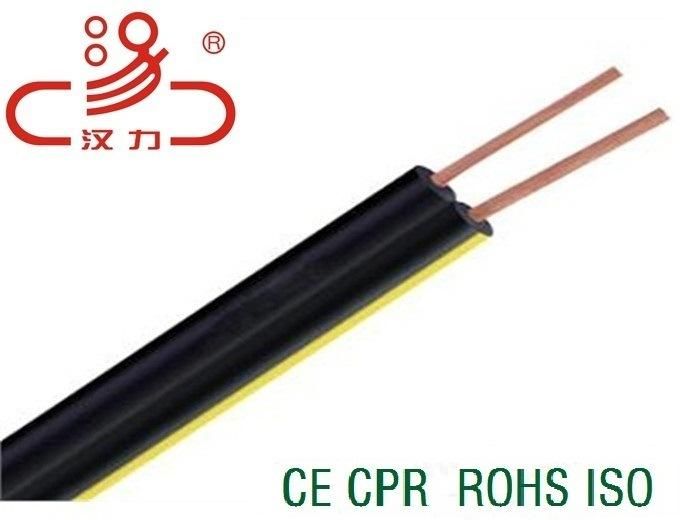

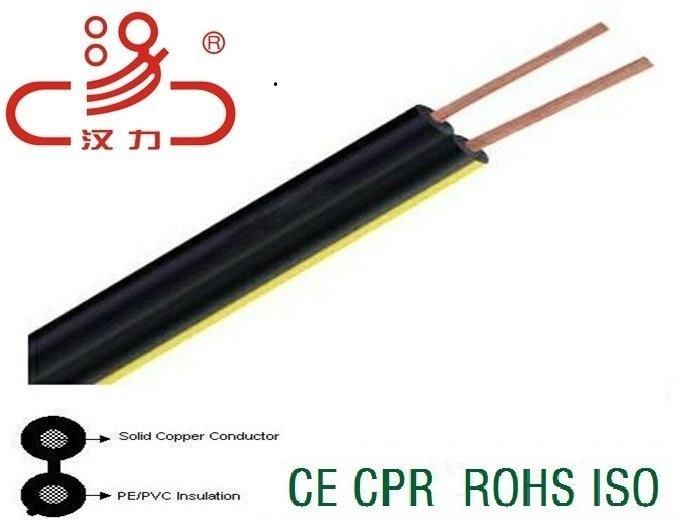

Drop Wire 2*0.8mm, 2*0.71mm, 2*1.0 mm Drop Wire

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable, Long Distance Symmetric Cable, Submarine Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Drop Wire
  • Material Shape：Hollow Line
  • Conductor Type：Solid

Base Info

  • Model NO.：Drop wire
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, RoHS
  • Model：Drop Wire
  • Brand：Hanli
  • Transport Package：300,500m
  • Specification：2x0.8
  • Trademark：hanli
  • Origin：Zhejiang
  • Production Capacity：3000000m,Month

Description

Product Description
Electrical Characteristics:
Conductor Conductivity (CCS)%≥30
DC Resistance Unbalance%≤2.5
DC Test Voltage for 3 sec, (between conductors) 2500
Working Capacitance ≤65.0
20ºC Conductor D.C, Resistance(ohms) ≥80.4


Physical Properties
Conductor Elogation  %≥15
Conductor Tensile Strength( CCS)  MPa≥310
Insulation Elongation  %≥600
Insulation Tensile Strength  MPa≥14

Test Results
Conductor Diameter  mm0.8+/-0.03
Insulation Thickness  mm1
Jacket Elongation  %≥100
Insulation Resistance  MΩ*KM≥92
Outer Diameter  mm3.8X5.8(H*W)

Application: Used as wiring between the cable terminal or DP and the station protector 100 Base-TX

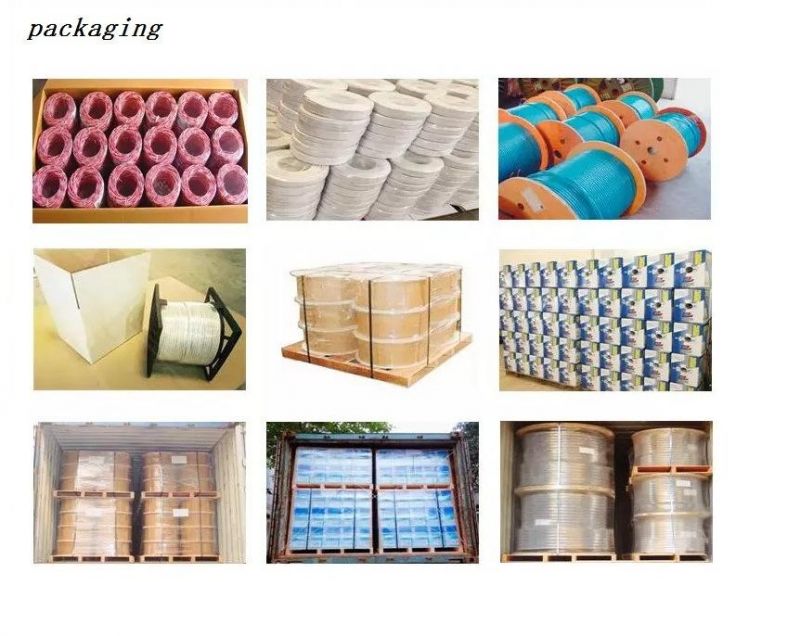

Packing: 150/ 300/ 500m/ drum ( per request)

Our Services
Welcome to visit our factory and  get our samples.
 Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel  free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.19 years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)


Drop Wire 2*0.8mm, 2*0.71mm, 2*1.0 mm Drop Wire

Drop Wire 2*0.8mm, 2*0.71mm, 2*1.0 mm Drop Wire


Drop Wire 2*0.8mm, 2*0.71mm, 2*1.0 mm Drop Wire
Drop Wire 2*0.8mm, 2*0.71mm, 2*1.0 mm Drop Wire
Drop Wire 2*0.8mm, 2*0.71mm, 2*1.0 mm Drop Wire
Drop Wire 2*0.8mm, 2*0.71mm, 2*1.0 mm Drop WireOur Services
Welcome to visit our factory and  get our samples.
 Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel  free to contact me ,we will do our best for you.


Q1. What kind of products can your company supply?
 A: We specialize in supplying network cable, coaxial cable, fiber optical cable, telephone cable, speaker cable and etc.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
 A: Yes, we can.
