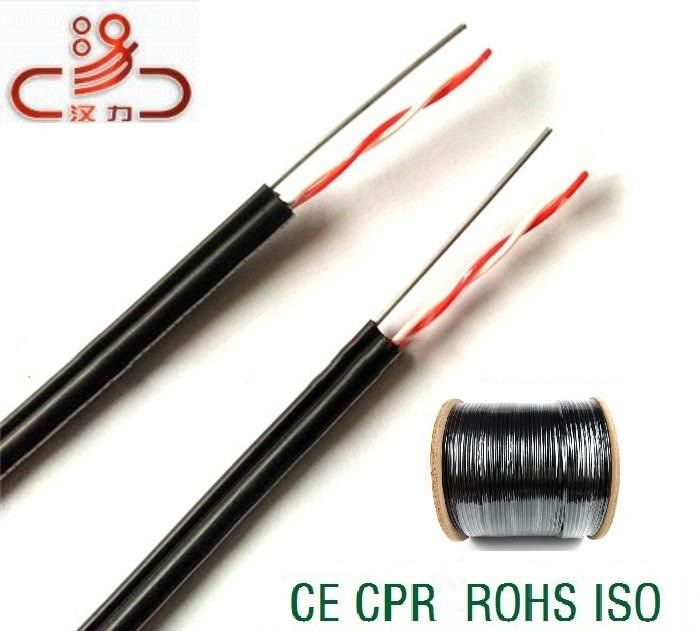

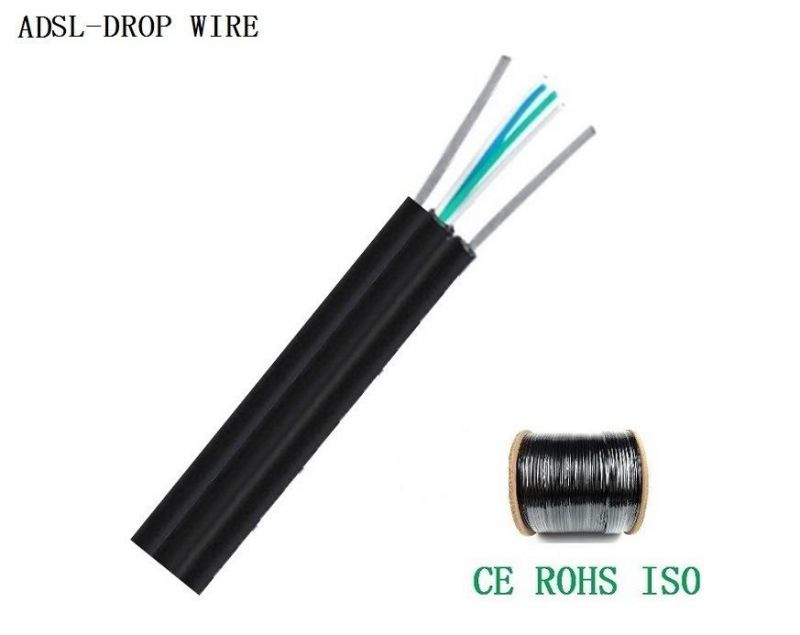

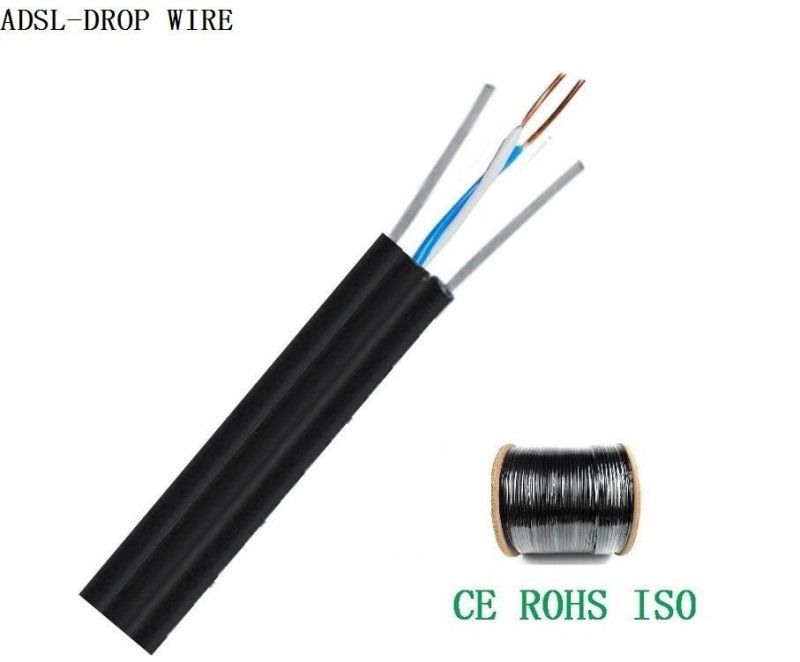

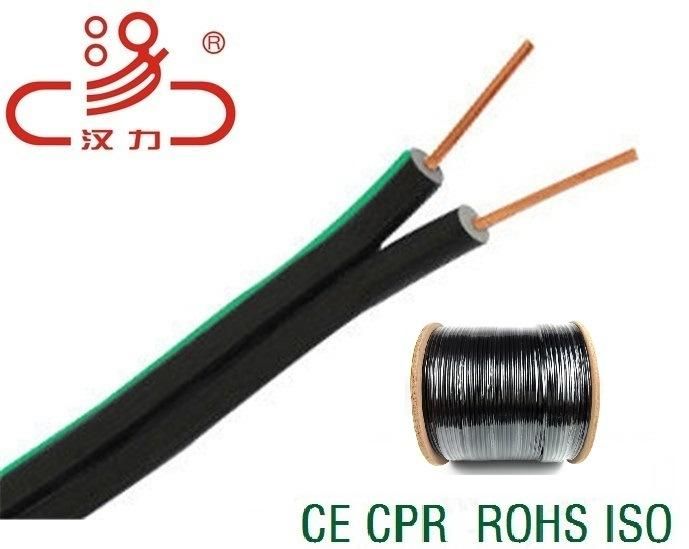

ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable, Long Distance Symmetric Cable, Submarine Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Drop Wire
  • Material Shape：Hollow Line
  • Conductor Type：Solid

Base Info

  • Model NO.：Drop wire
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Model：Drop Wire
  • Brand：Hanli
  • Transport Package：300,500m
  • Specification：2x0.8cu
  • Trademark：hanli
  • Origin：Zhejiang
  • Production Capacity：3000000m,Month

Description

Product Description
Electrical Characteristics:
Conductor Conductivity (CCS)%≥30
DC Resistance Unbalance%≤2.5
DC Test Voltage for 3 sec, (between conductors) 2500
Working Capacitance ≤65.0
20ºC Conductor D.C, Resistance(ohms) ≥80.4


Physical Properties
Conductor Elogation  %≥15
Conductor Tensile Strength( CCS)  MPa≥310
Insulation Elongation  %≥600
Insulation Tensile Strength  MPa≥14

Test Results
Conductor Diameter  mm0.8+/-0.03
Insulation Thickness  mm1
Jacket Elongation  %≥100
Insulation Resistance  MΩ*KM≥92
Outer Diameter  mm3.8X5.8(H*W)

Application: Used as wiring between the cable terminal or DP and the station protector 100 Base-TX

Packing: 300/ 500m/ drum ( per request)
Our Services
Welcome to visit our factory and  get our samples.
 Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel  free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.19 years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)


ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG
ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG
ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG
ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG
ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG

ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG
ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG
ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG
ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG
ADSL Drop Wire Telephone Cable 20AWG, 22AWG, 24AWG


Our Services
Welcome to visit our factory and  get our samples.
 Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel  free to contact me ,we will do our best for you.


Q1. What kind of products can your company supply?
 A: We specialize in supplying network cable, coaxial cable, fiber optical cable, telephone cable, speaker cable and etc.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF term.

Q6. What's your conventional packing ?
A: 305m/plastic or wooden drum, 500-1000m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
 A: Yes, we can.
