• Model NO.：welding cable
• Material Shape：Round Wire
• Range of Application：Welding Machine
• Certification：ISO9001, CE, UL
• Brand：Rne Da
• Voltage：600V
• Cross Section：6AWG 4AWG 3AWG 1,0AWG 2,0AWG 3,0AWG 4,0AWG
• Sheathed：EPDM
• Certificate：UL

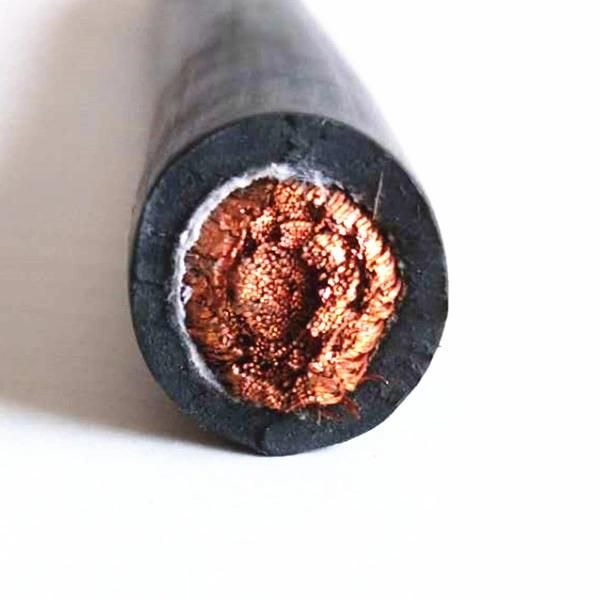

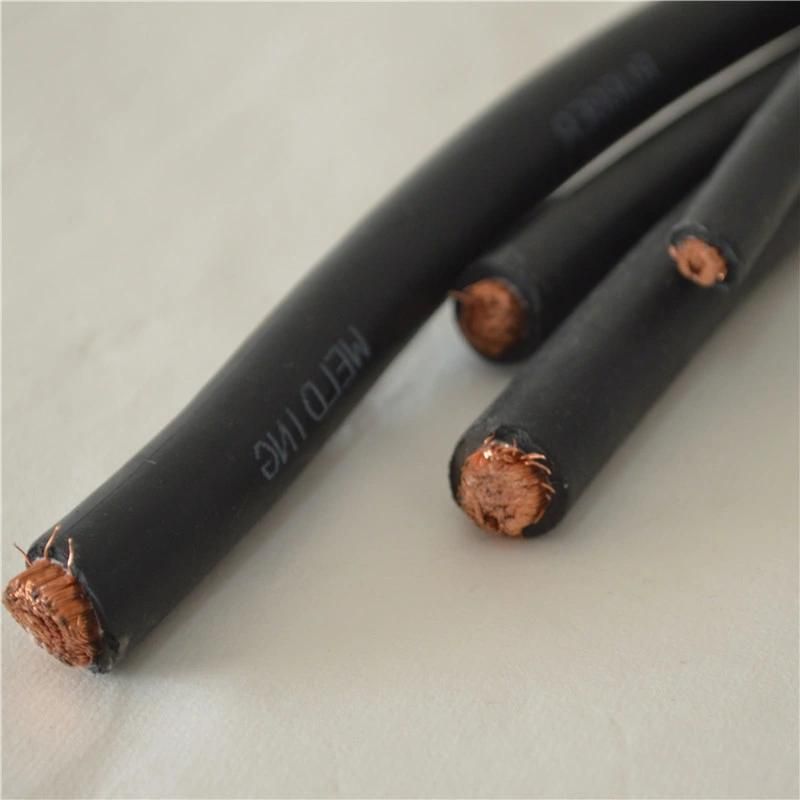

• Product：Welding Cable

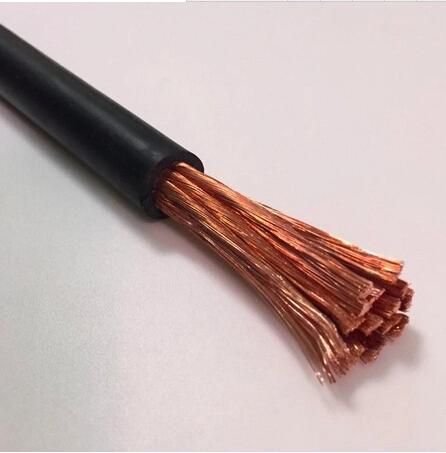

• Conductor：Flexible Copper Wire
• Standard：UL1276
• Transport Package：Soft Packing in Coil,100m,Roll,or as Your Requests
• Specification：UL1276
• Trademark：RNE DA
• Origin：Hebei, China
• HS Code：85444921
• Production Capacity：500km,Month

Size No of wire/size
(AWG)Diameter of
conductorThickness of
Wrap tape Thickness of
InsulationDiameter WeightMaximum conductor
resistance at temperature 20ºC --mm mm mm mm Kg/Km Ω/km 6AWG 260/30 5.10.11.859.71871.384AWG 374/30 6.10.11.8510.22490.8652AWG 625/30 8.10.11.8511.93830.5491AWG 778/30 90.11.8512.74620.4361/0AWG 990/30 10.10.12.2114.75940.3452/0AWG 1251/30 11.50.12.2115.77290.2763/0AWG 1586/30 12.90.12.6717.39370.2194/0AWG 2055/30 14.70.12.6719.311770.173250MCM 2496/30 16.20.13.0222.614350.147350MCM 3432/30 18.90.13.0527.219100.106500MCM 5054/30 23.10.13.0530.527180.074

5 Packing of welding cable:Soft packing or standard export drum

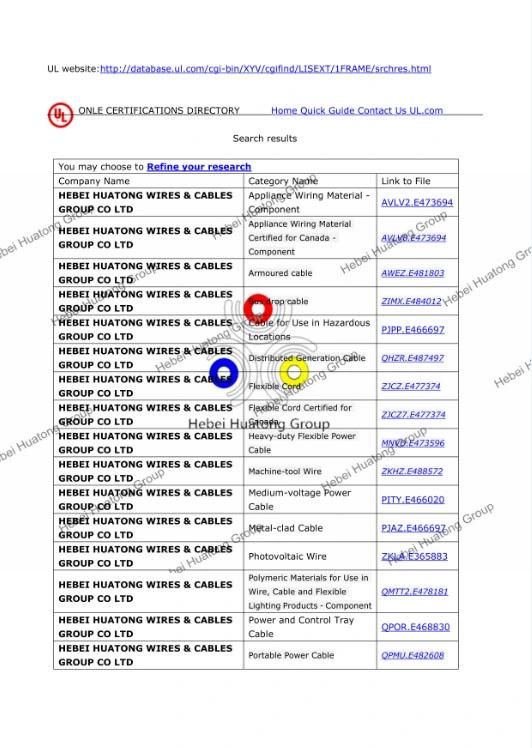

6 Certificate
USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable  and so on

7 Company information:

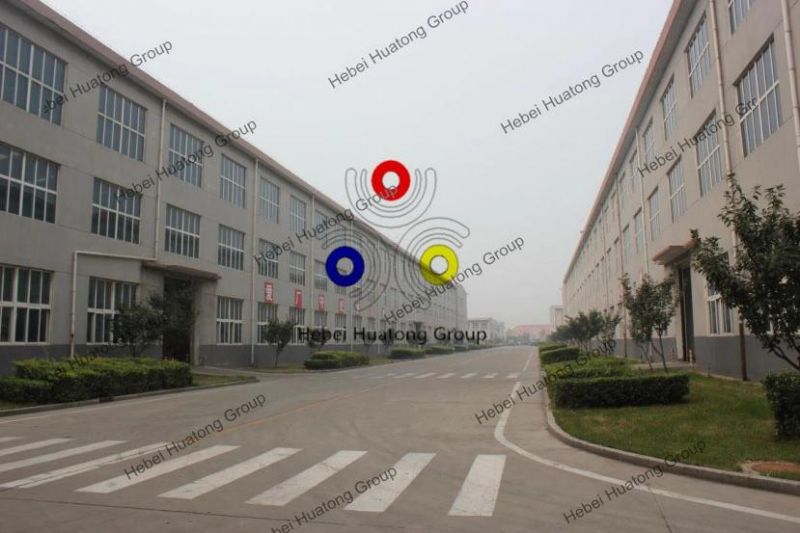

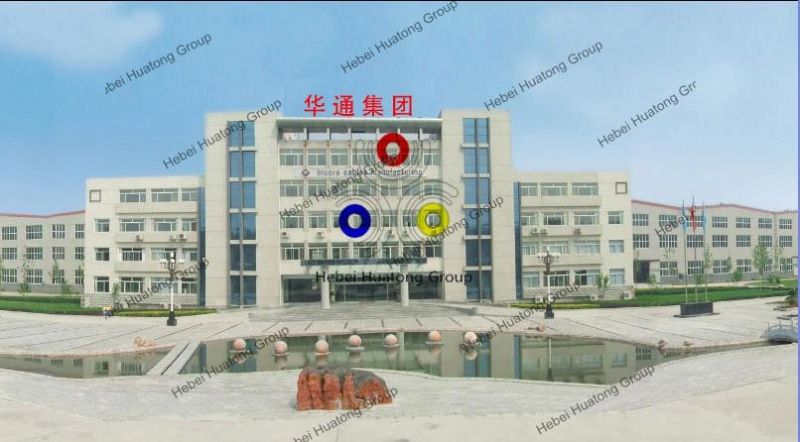

Hebei Huatong Wires and Cables Group Co., Ltd.It was established in 1993.
Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters,owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 1000 employers in our company, among which more than 150 are technicians.
TWO FACTORIES IN CHINA ! ONE FACTORY IN Tanzania!
Yearly Export Amount 200Millon

Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.
We are top cable manufacture of rubber serious cables . Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.



8 Our service:

1.22 years production experience and 13 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.
