UL Certification 35kv 2/0AWG Copper Conductor Type Urd Power Cable

Hebei Huatong Wires & Cables Group Co., Ltd.
  • Application：Underground Distribution
  • Voltage：High Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE or Epr
  • Sheath Material：PVC or PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：urd cable
  • Wire Core Material：Bare Aluminium or Copper, Stranded Class B Compres
  • Certification：ISO, CCC, CE, UL
  • Model：Mv-90 Cable
  • Brand：Ren Da
  • Product Name：Mv-90 Cable
  • Standard：UL 1072
  • Number of Cores：Single Core
  • Cross Section：8AWG-1000 Kcmil
  • Rated Voltage：5kv,8kv,15kv,35kv
  • Main Market：South American, USA
  • Shield：Copper Wire or Copper Tape
  • Jacket：Black Sunlight Resistance and Flame Retardant Poly
  • Sample：Free
  • Transport Package：Standard Export Drum
  • Specification：8 AWG (6 AWG Aluminum) up to 1000 kcmil.
  • Trademark：REN DA
  • Origin：Hebei Province, China
  • HS Code：8544492100
  • Production Capacity：1000km,Month

Description

 Total WithJacket Insulation Shield Wires Encaps. Jkt. Neutral Jacket  1/0  19 wire  9  14  0.37  1.12  1.23  1.35  1.46  325.8  119.2  659  4926  2/0  19 wire  11  14  0.42  1.17  1.27  1.40  1.50  410.9  146.3  775  808  3/0  19 wire  14  14  0.47  1.22  1.32  1.48  1.59  518.1  185.9  900  923  4/0  19 wire  11  12  0.53  1.28  1.38  1.54  1.71  653.3  228.0  1110  1055  250  37 wire  13  12  0.57  1.33  1.44  1.64  1.81  771.9  282.1  1330  1292  350  37 wire  12  10  0.68  1.44  1.54  1.70  1.89  1081  398.0  1633  1519  500  37 wire  17  10  0.81  1.57  1.72  1.88  2.04  1544  543.5  2002  1886  750  61 wire  25  10  0.99  1.76  1.93  2.11  2.28  2316  801.5  2650  2289  1000  61 wire  33  10  1.14  1.92  2.06  2.27  2.43  3088  1058  3847  2960

Certificate

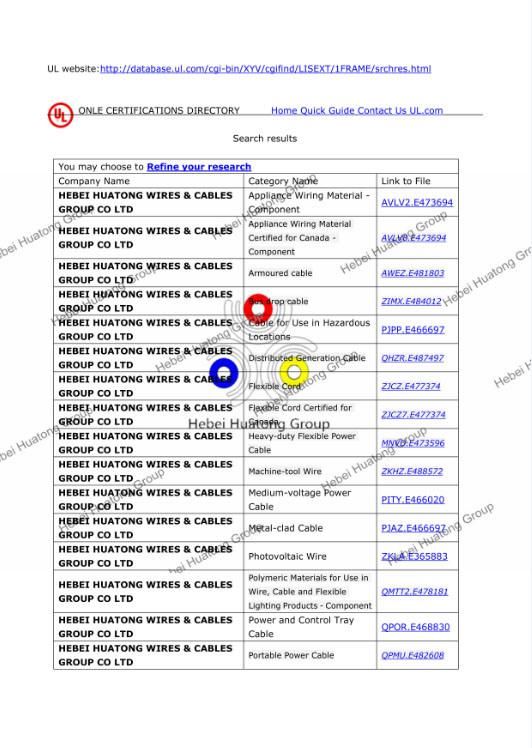

USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cabl,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable  and so on
UL Certification 35kv 2/0AWG Copper Conductor Type Urd Power Cable
Company information:
1 Location:
 Hebei Huatong wires and cables group co., ltd. is Located inTangshan, 100 Km to TianjinXingang sea port, 150Km to the Capital city Beijing China.
2 About Huatong:
Founded in 1993 Registered capital: CNY294 Million Equal to: US$45 Million
Floor space: 220,000 square meter  Employees: 950 Production capacity:US$500Million
3 Production and inspection facility:
Drawing machine : 50 sets
Conductor stranding machine: 30sets
CCV and CV extruding line: 30sets
Insulation and sheath extruding machine: 40sets
Cabling machine: 30sets
Braiding machine:40sets
Other auxiliary machine: 150stes
MV cable partial discharge
equipment: 4sets
Other test machine:100sets
4 Enterprise Principle:
Strengthening Huatong /Benefiting employees /Serving our country and society/Aiming to be a world-renowned enterprise
UL Certification 35kv 2/0AWG Copper Conductor Type Urd Power Cable
UL Certification 35kv 2/0AWG Copper Conductor Type Urd Power Cable
Our Service:


1.22 years production experience and 13 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.
