• Model NO.：SAC
• Wire Core Material：AAC
• Certification：ISO, CCC, CE
• Model：Tree Wire
• Brand：Grandcable
• Transport Package：Fumigated Drum
• Trademark：Grandcable
• Origin：Jiangsu, China
• HS Code：8544601200
• Production Capacity：78000 Km Per Year

DescriptionUnitDataSystem VoltagekV33ConductorType of conductor-Aluminum Nominal cross-sectional areamm²5095120185Stranding-Compact StrandedOutside diameter ±1%mm8.3311.4512.9515.98Calculated breaking strength Min.N7890143801911029600Volume resistivity of aluminum wire at 20°C  Max.Ω.mm²/m0.028264DC resistance at 20°C Max.Ω/km0.5920.3130.2450.161Conductor
ShieldThickness, not less than
0.0635
0.3DC Volume resistivity at 90°C Max.Ω-cm50000InsulationThicknessmm4.445JacketThicknessmm3.175CableOverall outside diameter, approx.mm24.627.729.232.2Electrical test VoltageAC test voltage for 5 minuteskV49DC test voltage for 5 minuteskV125

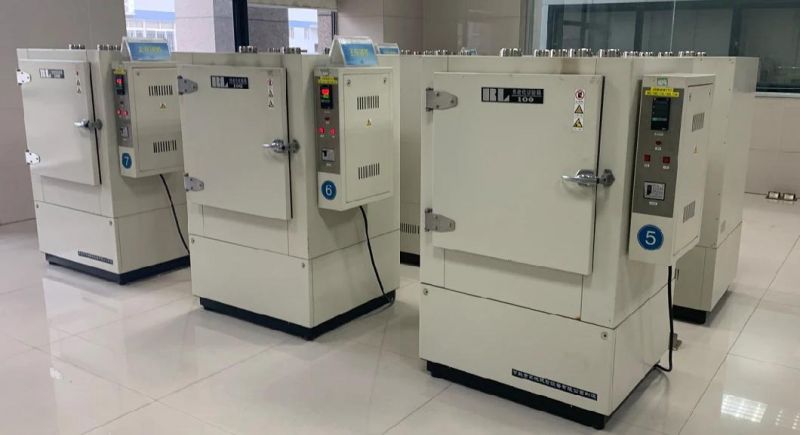

Tesing Facilities:

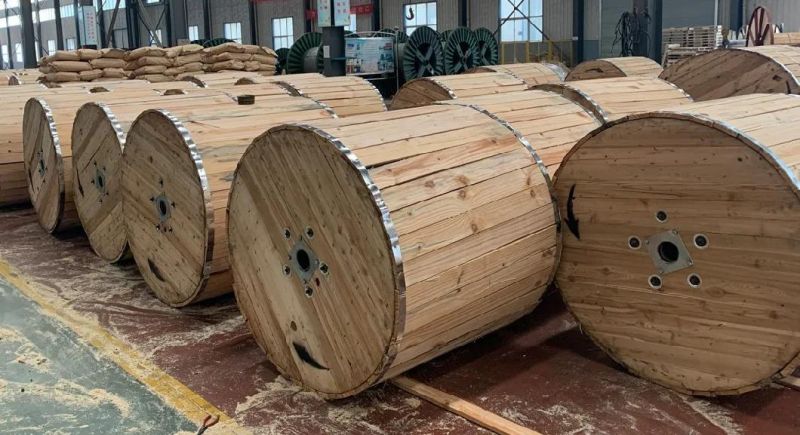

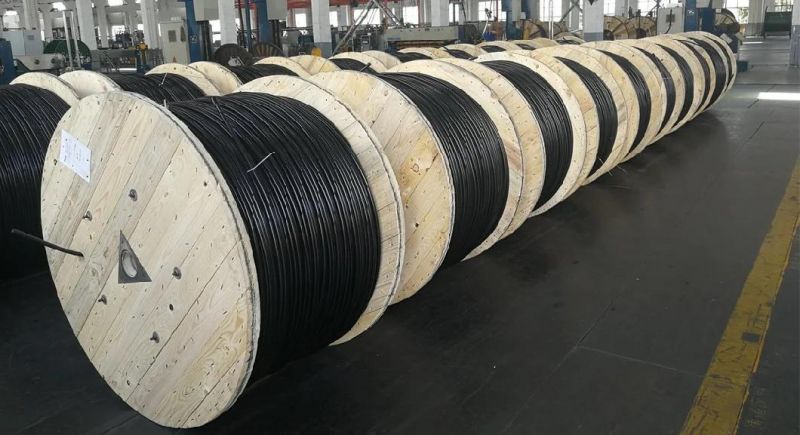

Packaing Photos:

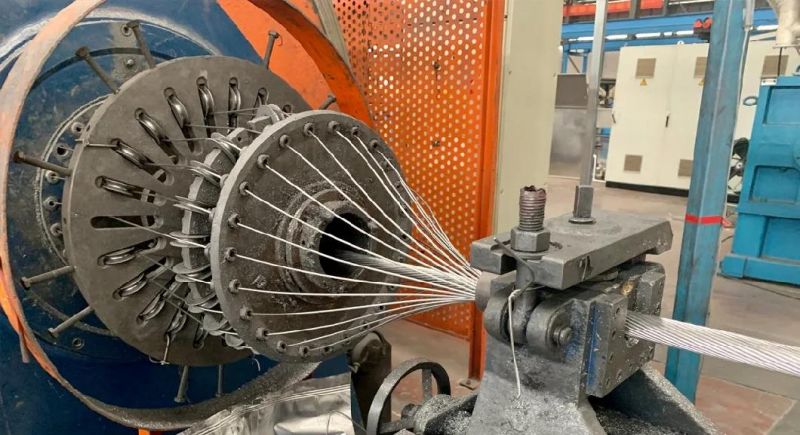

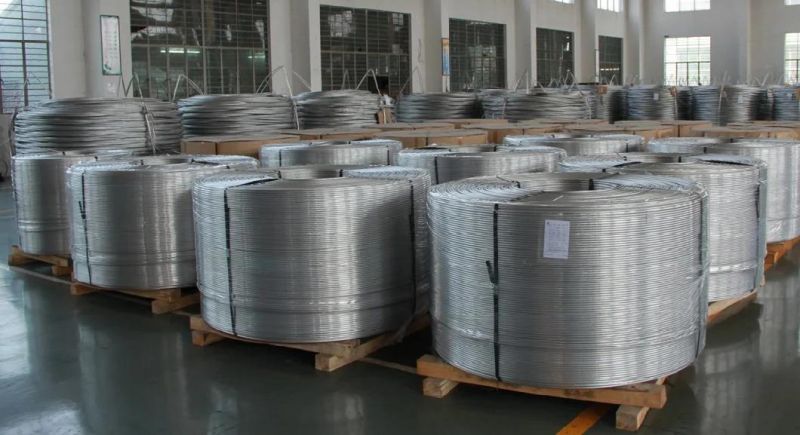

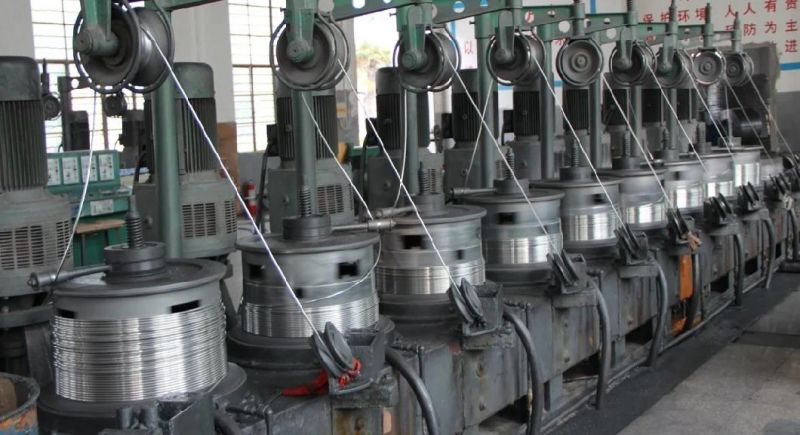

Workshop Views:

About us:

Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.

With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.

FAQ:

Q:  How long does it take get my inquiry replied?

A:  Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.

Q:  Can I get samples before placing the order?

A:  You will get a sample for free if we have the storage of that cable.

Q:  What's the MOQ of your product?

A:  The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.

Fore More Information, Please do feel free to contact us!
