PVC Insulated Electrical Wire with UL Certificate
Ningbo A-Line Cable & Wire Co., Ltd.- Conductor Type：Stranded
- Application：Overhead
Base Info
- Model NO.：UL1015, 1007, 1569
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, UL, RoHS
- Brand：A-Line
- Materials：PVC
- Conductor：Copper
- Environmental Standard：RoHS
- Reference Standard：UL758 UL1581
- Color：as Per Customer′s Requirement
- Length of Cable：as Per Customer′s Requirement
- Testing：Passes UL VW-1 Vertical Flame Test
- Rated Voltage：600V
- Transport Package：in Export Carton
- Specification：RoHS
- Trademark：A-Line
- Origin：China
- HS Code：8544422100
- Production Capacity：300000
- Package size per unit product：20.00cm * 20.00cm * 6.00cm
- Gross weight per unit product：2.000kg
Description
ConductorInsulation Maximum
Resistance
At 20ºC
Ω/km Packing Spec
AWG Conductor
construction
No./φmm Diameter
(mm) Nominal
thickness
(mm) Nominal outer
diameter
(mm) M/Coils 30 7/0.102 0.3 0.80 1.90 381 610 28 7/0.127 0.38 0.81 2.00 239 610 26 7/0.16 0.48 0.81 2.10 150 305 24 11/0.16 0.61 0.82 2.25 94.2 305 22 17/0.16 0.76 0.82 2.40 59.4 305 20 26/0.16 0.94 0.81 2.55 36.7 305 18 41/0.16 1.18 0.81 2.80 23.2 305 16 26/0.254 1.49 0.81 3.10 14.6 200 14 41/0.254 1.88 0.81 3.50 8.96 200 12 65/0.254 2.36 0.82 4.00 5.64 200 10 105/0.254 3.00 0.85 4.70 3.546 100

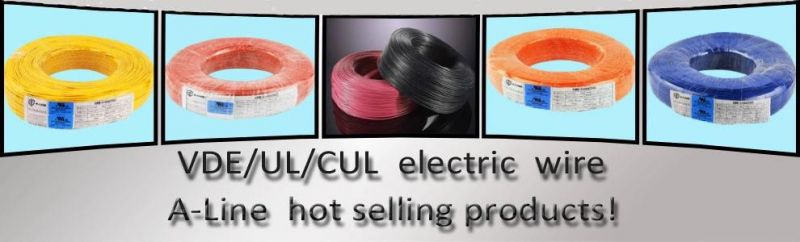

HOT PRODUCTS
CERTIFICATE

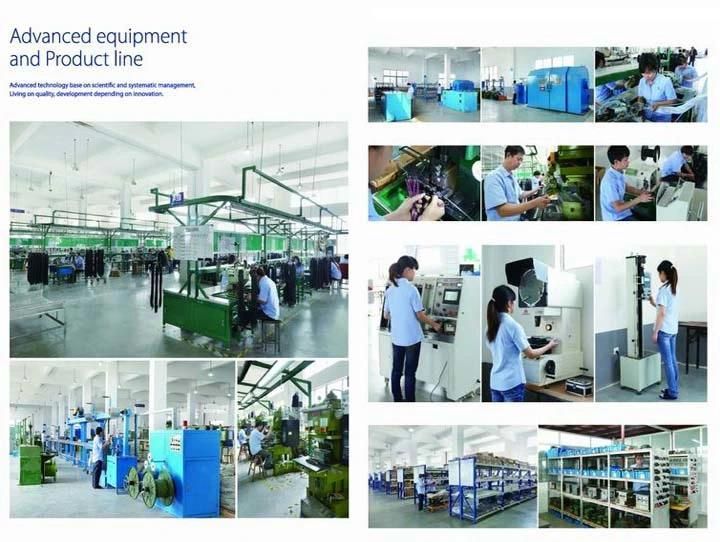

FACTORY SHOW
