GYFTY Loose Tube Fiber Optical Cable G652D 2-216 Core FRP Strength Member

Hanyang (Hangzhou) Cable Co., Ltd.
  • Application：Communication, Outdoor Cabling (Ducts, Conduits or Aerial Pipe)
  • Type：Single-mode Fiber
  • Connection Structure：No
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：1000,3000 N,100mm
  • Allowed Tensile Strength：1000,3000 N

Base Info

  • Model NO.：GYFTY
  • Core：Multicore
  • Certification：RoHS, UL, CE, ISO9001, CCC
  • Brand：Superlink ,OEM
  • Sheath Material：PE
  • Fiber Count：2-216 Core
  • Strength Member：FRP
  • Loose Tube：PBT
  • Transport Package：Wooden Drum , Pallet
  • Specification：Outdoor optical cable GYFTY
  • Trademark：SUPERLINK , OEM
  • Origin：Zhejiang, China
  • HS Code：85447000
  • Production Capacity：80000km,Month

Description

GYFTY Loose Tube Fiber Optical Cable G652D 2-216 Core FRP Strength MemberOur service
1. All kinds of cable products & one-stop experience.
2. Quality & competitive price.
3. Order process will be shared via photo and video.
4. On-time delivery & After-sales problems solved before sales.
5. 24/7 hours response.
 All start here

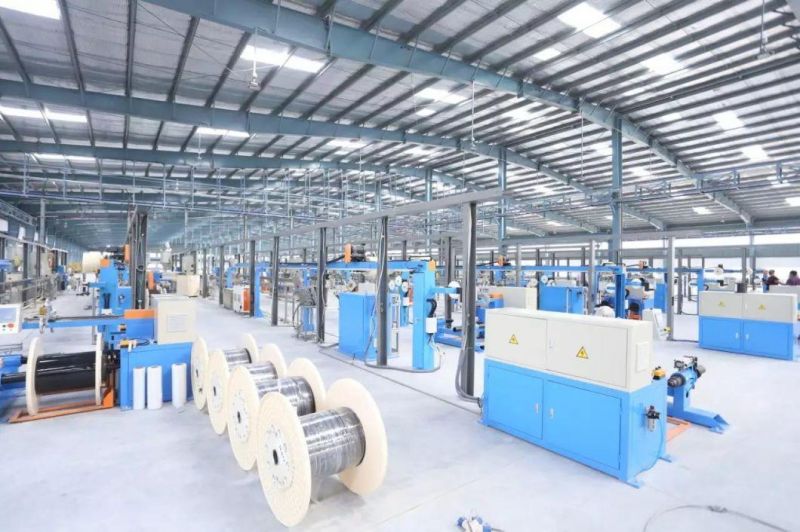

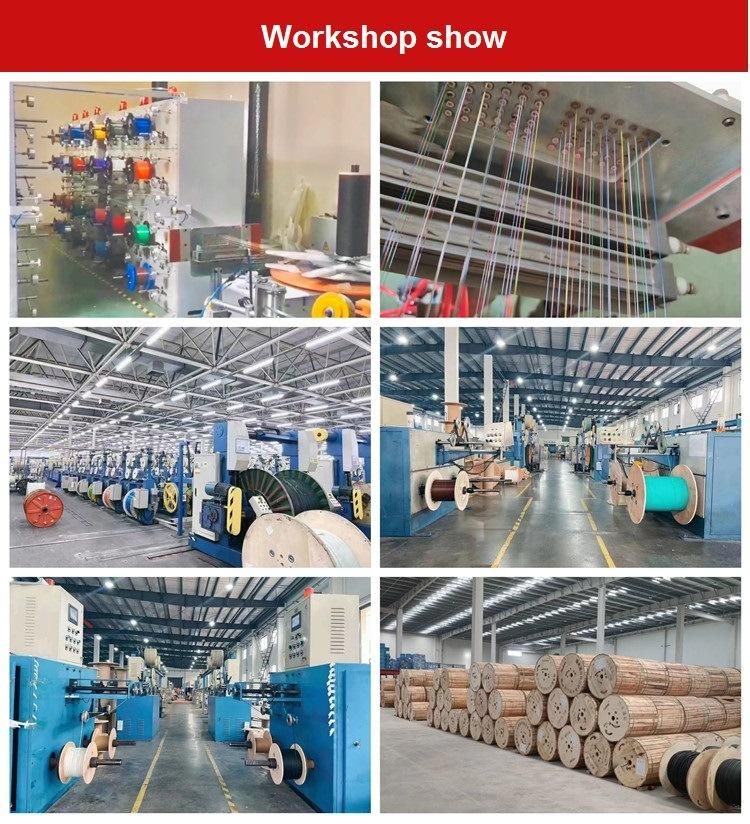

We have three factories located in Hangzhou, Shenzhen and Vietnam. The total production base exceeds 300,000 square meters. We plan to set up offices in all coastal port cities in China to achieve fast delivery.GYFTY Loose Tube Fiber Optical Cable G652D 2-216 Core FRP Strength MemberGYFTY Loose Tube Fiber Optical Cable G652D 2-216 Core FRP Strength MemberConnect the world
1. Hangzhou factory: "Quality first" pass tests.
2. Shenzhen factory: "Price first"
3. Vietnam factory: Export to EU, America, no tariffs, anti-dumping.Our capability
1. 17 years of production experience, quality first, customer first, service first.
2. Swiss moulds with high precision are selected for production equipment.
3. Complete supply chain. We have our own raw material factory, from materials to finished products, offer more competitive pricing with good quality for customer.
 GYFTY Loose Tube Fiber Optical Cable G652D 2-216 Core FRP Strength Member

GYFTY Loose Tube Fiber Optical Cable G652D 2-216 Core FRP Strength Member

Description:

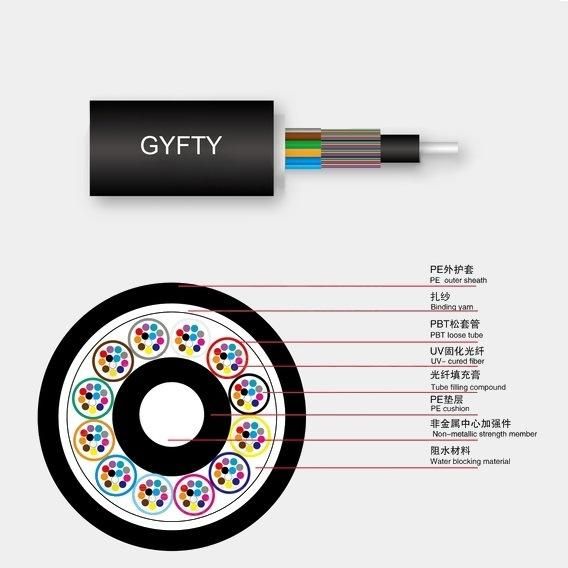

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound. A fibre reinforce plastic locates in the center of core as a non-metallic strength member. The tubes (and the fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress. The cable is completed with a PE(LSZH) sheath.



Technical parameters
Cable TypeFiber CountLoose tube countFiller countCable Diameter
   Mm		Cable Weight
  Kg/km		Tensile Strength
Long/short term
         N		Crush Resistance
Long/short term   N/100mm		Bending
Radius
Static/dynamic       mm
GYFTY-2~62~6149.088800/1500500/1000  15D/30D
GYFTY-8~128~12239.088800/1500500/100015D/30D
GYFTY-14~1814~18329.088800/1500500/100015D/30D
GYFTY-20~2420~24419.088800/1500500/100015D/30D
GYFTY-26~3026~30509.088800/1500500/100015D/30D
GYFTY-32~3632~36509.088800/1500500/100015D/30D
GYFTY-38~4838~48509.088800/1500500/100015D/30D
GYFTY-50~6050~60509.088800/1500500/100015D/30D
GYFTY-62~7262~72609.51001000/2000500/100015D/30D
GYFTY-74~8474~847110.51201000/2000500/100015D/30D
GYFTY-86~9686~968010.51201500/2500500/100015D/30D
GYFTY-98~10898~1089111.51501500/2500500/100015D/30D
GYFTY-110~120110~12010012.01501500/2500500/100015D/30D
GYFTY-122~144122~14412013.01501500/2500500/100015D/30D
GYFTY-146~216146~21618013.01501000/2000500/100015D/30D

 Note: Storage/Operating Temperature : -40ºC to + 70ºC

Characteristics:
1.Excellent mechanical and temperature performance
2.Special tube filling compound ensure a critical protection of fibre and resist the water
3.100% core filling water prevent cable jelly to ensure the cable watertight
4.Single FRP as the central strength member to withstand axial loads
5.Outer sheath protects cable from ultraviolet radiation

Installation: Duct, Non self-supporting aerial
Applications: Long distance, LAN communication
Standards: YD/T 901 / IEC 60794-3-10
Temperature Range: Transportation:-40ºC~+70ºC;Installation:-5ºC~+50ºC;In use:-40ºC~+70ºC

GYFTY Loose Tube Fiber Optical Cable G652D 2-216 Core FRP Strength Member
GYFTY Loose Tube Fiber Optical Cable G652D 2-216 Core FRP Strength Member
GYFTY Loose Tube Fiber Optical Cable G652D 2-216 Core FRP Strength Member
GYFTY Loose Tube Fiber Optical Cable G652D 2-216 Core FRP Strength Member 1. What's your company MOQ?
- Our MOQ is 30km. But MOQ of stocks are 1 pcs.

2. Can you do our design?
- Of course, your customized design (OEM) is available.

3. What's the lead-time for order delivery?
- Within 10~30days.

4. Can you send a sample for us?
- Yes, we can provide free samples.

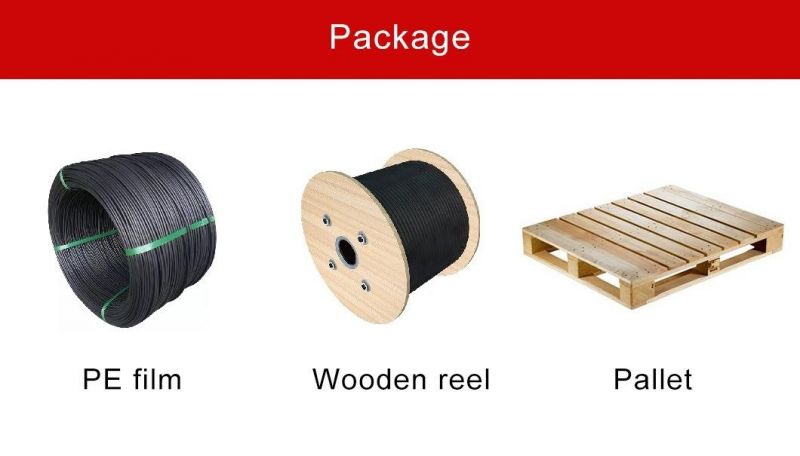

5. What is your packaging?
- Our packaging includes PE film, shrink bag, pull box, paper reel, plastic reel, wooden reel. Depends on what you want!

6. Delivery time and transportation method?
- Shipment can be arranged immediately. By express, by sea, by air, you can ship whatever you want.

7.Payment method?
- T/T, L/C, we also accept most other convenient methods of payment.
