• Model NO.：H07VV-F Cable
• Wire Core Material：99.99% Copper
• Certification：ISO, CCC, CE, RoHS, UL
• Model：Rvv,H07VV-F
• Brand：Hongda
• Armor：Steel Tape,Wire Armor
• Conductor Material：Copper Wire (Class 5)
• Standard：IEC60227
• Quality Guarantee：Ten Years
• Core：Multicores
• Insulated Color：as Your Requirement
• Sheath Color：Black
• Sample：Yes
• Manufacture：Yes
• Transport Package：Wooden Drum
• Specification：LV power cable
• Trademark：Hongda
• Origin：China, Henan
• HS Code：8544492100
• Production Capacity：3000km,Per Months

Model

Name

RV

Copper Core PVC Insulation Flexible Wire

RVB

Copper Core PVC Insulation Flat Flexible Wire

RVS

Copper Core PVC Insulation Twisted Flexible Wire

RVV

Copper Core PVC Insulation Sheath Round Flexible Wire

RVVB

Copper Core PVC Insulation Sheath Flat Flexible Wire

RV-90

Copper Core Heat-resistak Losc PVC Flexible Wire

 4.3x4 5x4 5x10 5x6 PVC insulation and sheath Flexible H07VV-F RVV TTR Cable Specification Size and Technical Data

Nominal Section (mm²)

Core Structure No./Dia.(mm)

Max Dia.(mm)

Reference Weight(kg/km)

0.3

16/0.15

2.3

6.4

0.4

23/0.15

2.5

8.1

0.5

16/0.2

2.6

9.1

0.75

24/0.2

2.8

12.2

1.0

32/0.2

3.0

15.1

RV 450/750V

Nominal Section (mm²)

Core Structure No./Dia.(mm)

Max Dia.(mm)

Reference Weight(kg/km)

1.5

30/0.25

3.5

21.4

2.5

49/0.25

4.2

24.5

4

56/0.20

4.8

51.8

6

84/0.30

6.4

74.1

10

138/0.30

8.0

12.4

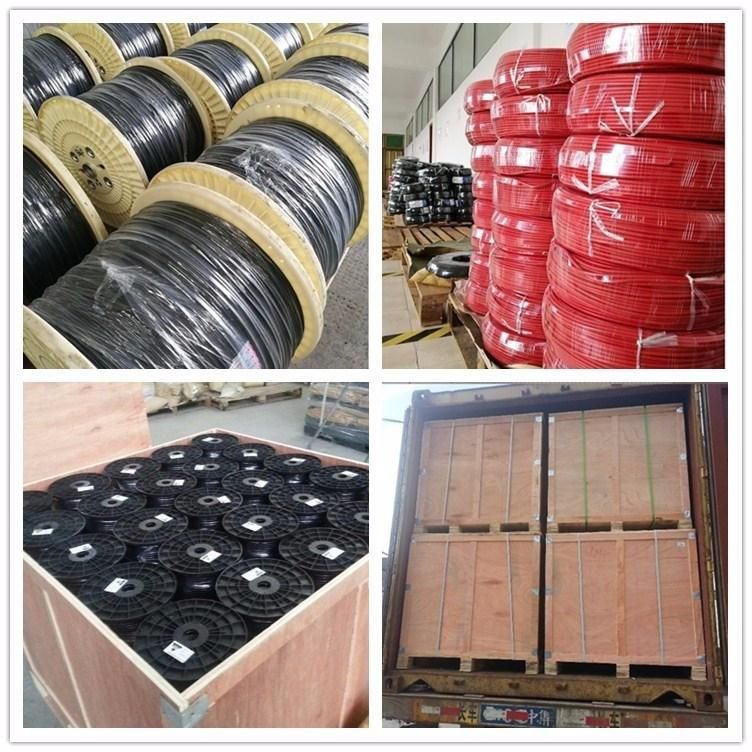

Packaging Details:Rolls,Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 20 days(detailly depend on the order quantity)

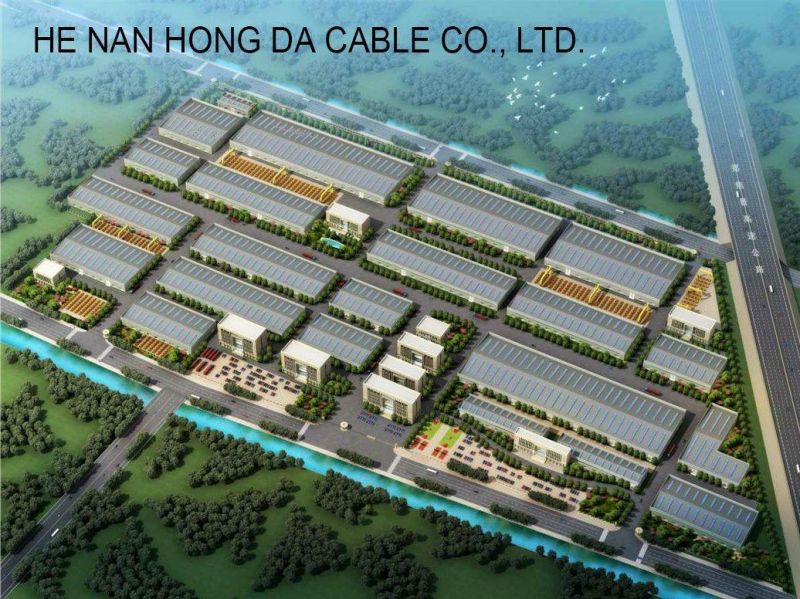

Factory and product

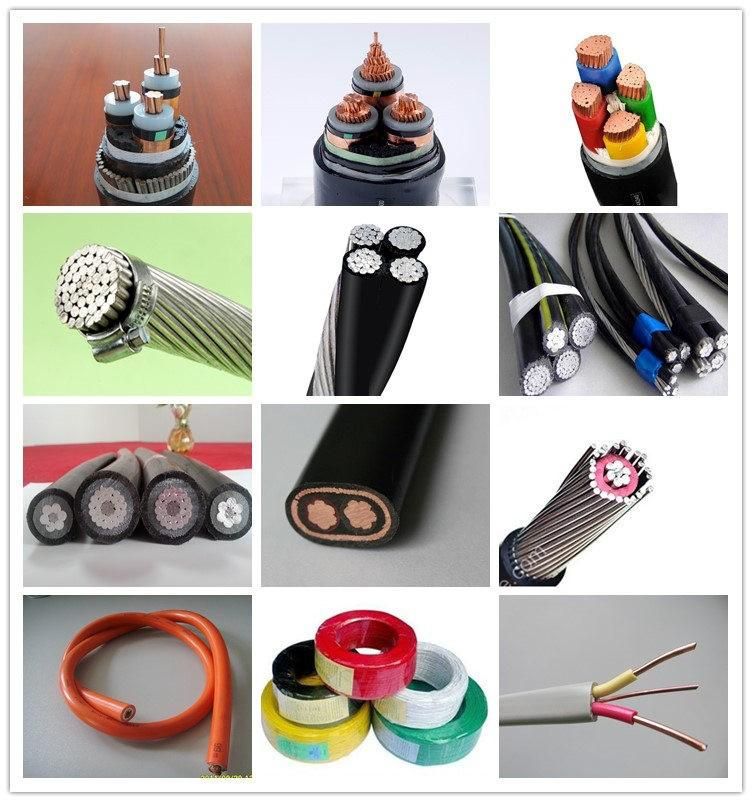

Main products
