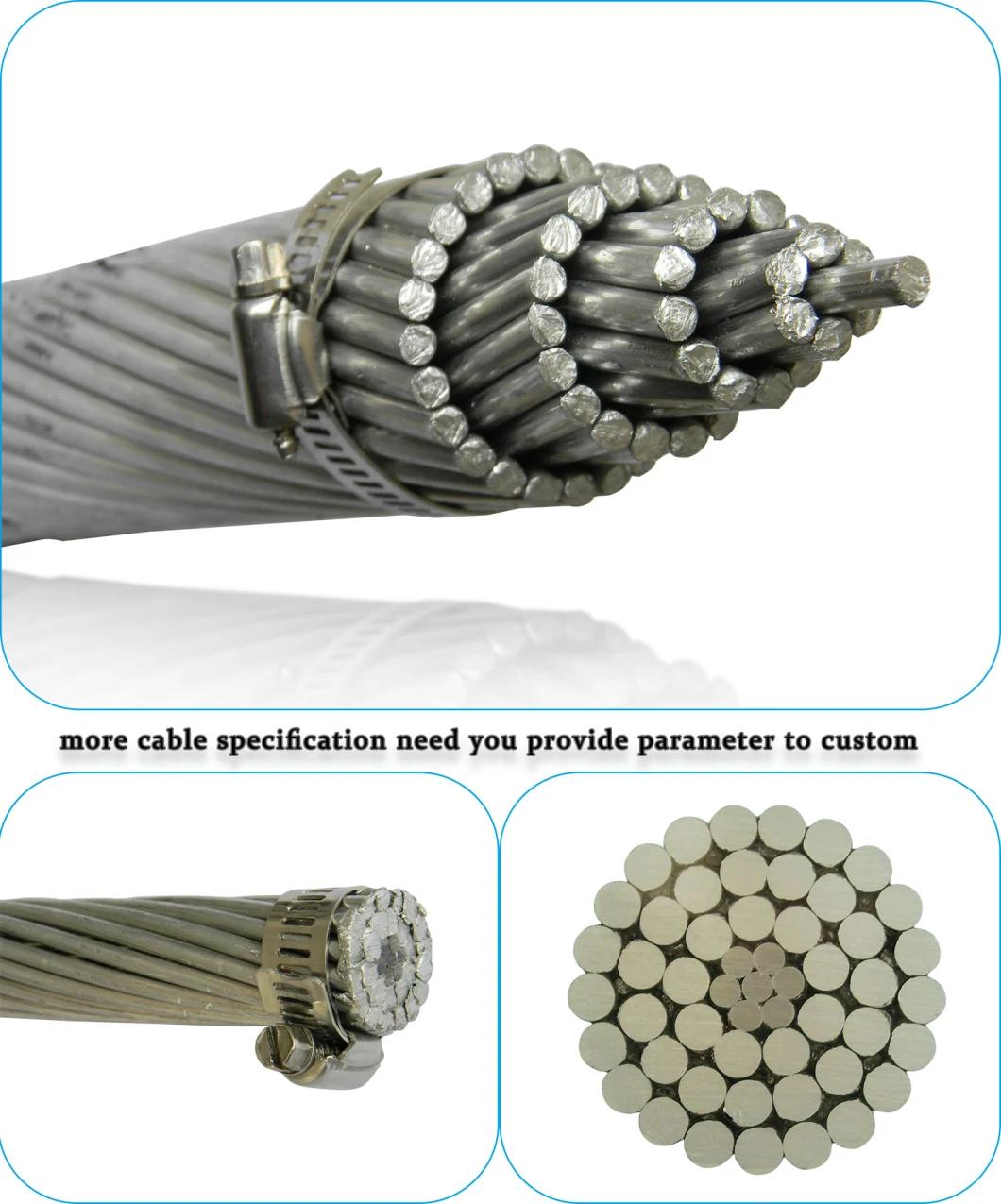

Rabbit Drake ACSR Bare Conductor ACSR Dog Conductor AAC AAAC Cable
YIFANG ELECTRIC GROUP INC.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Insulation Material：Bare
- Certification：ISO9001
Base Info
- Model NO.：LGJ LJ
- Product Name：Conductor ACSR
- Transport Package：Drum, Reel or According to Customers′ Request
- Specification：IEC, BS, NFC, ASTM, DIN, etc
- Trademark：Yifang
- Origin：Zhengzhou, Henan, China
- HS Code：8544492100
- Production Capacity：50, 000km Per Month
Description
Code NumberStranding& Wire Diameter Approx Sectional Area ApproxWeight Breaking Load DC Resistance Overall Al Steel Diameter Al Steel Total mm mm mm mm 2 mm 2 mm 2 Kg/km KN Ohm/km 16 6/1.84 1/1.84 5.53 16 2.67 18.7 64.6 6.08 1.7934 25 6/2.30 1/2.30 6.91 25 4.17 29.2 100.9 9.13 1.1478 100 6/4.61 1/4.61 13.8 100 16.7 117 403.8 34.33 0.2869 125 18/2.97 1/2.97 14.9 125 6.94 132 397.9 29.17 0.2304 160 18/3.36 1/3.36 16.8 160 8.89 169 509.3 36.18 0.18 250 22/3.80 7/2.11 21.6 250 24.6 275 880.6 68.72 0.1154 400 54/3.07 7/3.07 27.6 400 51.9 452 1510.3 123.04 0.0723 450 54/3.26 7/3.26 29.3 450 58.3 508 1699.1 138.42 0.0643 500 54/3.43 7/3.43 30.9 500 64.8 565 1887.9 153.8 0.0578 560 54/3.63 19/2.18 32.7 560 70.9 631 2103.4 172.59 0.0516 630 54/3.85 19/2.31 34.7 630 79.8 710 2366.3 191.77 0.0459 710 54/4.09 19/2.45 36.8 710 89.9 800 2666.8 216.12 0.0407 800 72/3.76 7/2.51 37.6 800 34.6 835 2480.2 167.41 0.0361 900 72/3.99 7/2.66 39.9 900 39.9 939 2790.2 188.33 0.0321
Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
