PVC H07rn-F Transmission Cable RF Radiation Leaky Communication Feeder Cable for Railway and Metro System
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground
- Conductor Material：Copper
- Sheath Material：LDPE
- Insulation Material：PE
Base Info
- Model NO.：Railway Cable
- Material Shape：Round Wire
- Range of Application：Railway Signal Network
- Certification：ISO9001, CE, CCC
- Brand：Fengda
- Color：Customized
- OEM / ODM：Available
- Whether Quality Inspection：Provide Inspection Certificate
- Whether It Is Environmentally Friendly：Yes
- Standard：Customized Based on Specified National Standard
- Core：Single Core and Multicore
- Transport Package：Drum
- Specification：International General Specifications
- Trademark：FengDa
- Origin：China
- HS Code：854449210
- Production Capacity：5000000 Km , Year
Description
Railway Signal Cable
Application: This cable is specially designed for railway signal network,suitable for direct buried and pipeline laying.

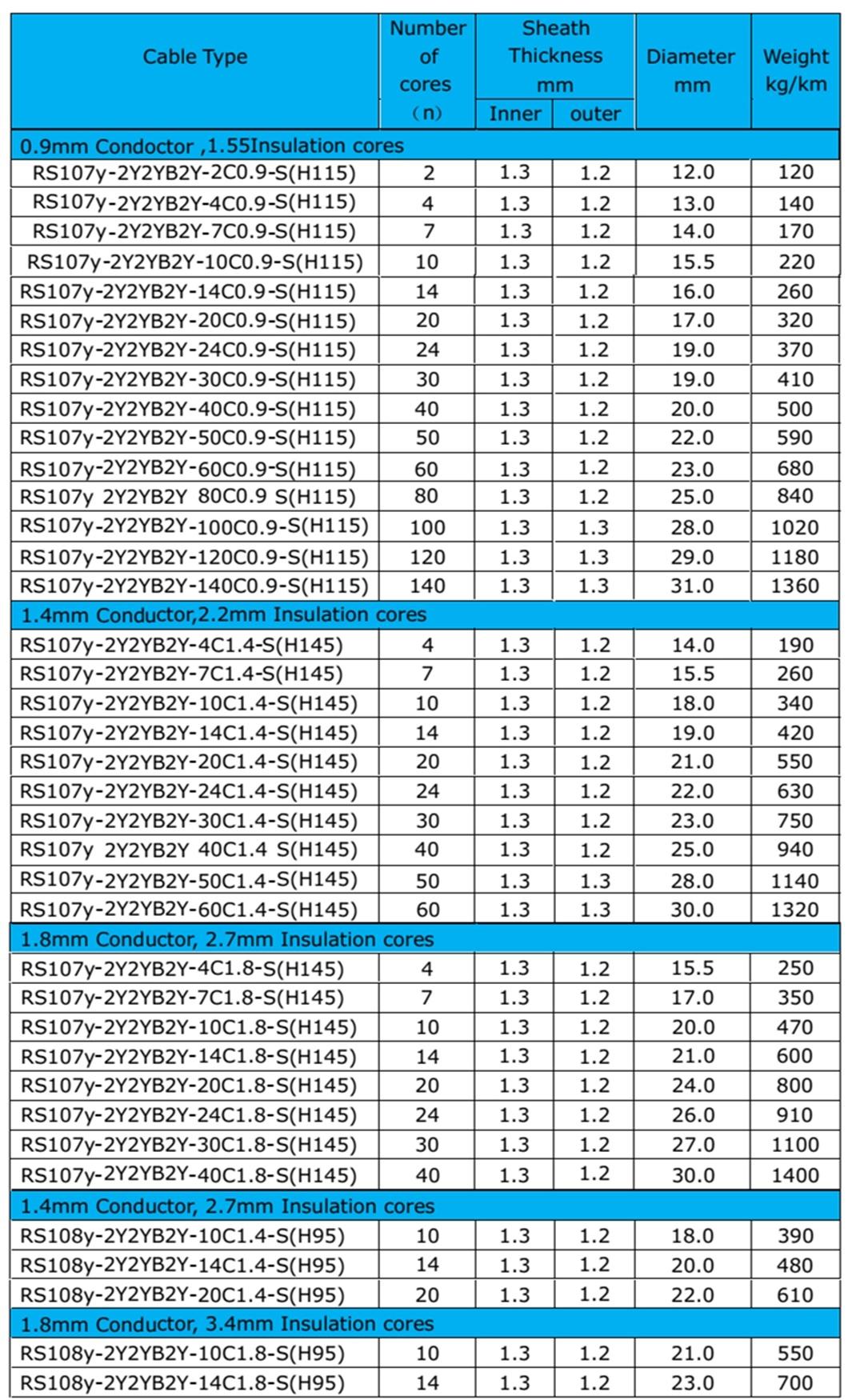

Type: A-2Y2YB2Y S (H115) / S (H145) / S (H95)
Standard: Dlk 1.013.107y / Dlk 1.013.108y / Dlk 1.013.110y
Conductor: Solid annealed copper conductor, nominal diameter 0.9 / 1.4 / 1.8 mm
Insulation: polyethylene
Inner sheath: Low-density polyethylene
Armored: Galvanized steel strip
Outer sheath: Low-density polyethylene
Electrical performance at 20 ° C
Minimum bending radius: 10Xod
Temperature range: -40 ° C to + 60 ° C (in operation) / -10 ° C to + 60 ° C (in installation)
| Nominal conductor diameter | mm | 0.9 | 1.4 | 1.8 |
| Conductor resistance | Ω/km | 28.9 | 11.9 | 7.2 |
| Working voltage AC / DC | V | 420/600 | 420/600 | 420/600 |
| Between cores | V | 2500 | 2500 | 2500 |
| Between core and shield | V | 2500 | 2500 | 2500 |
