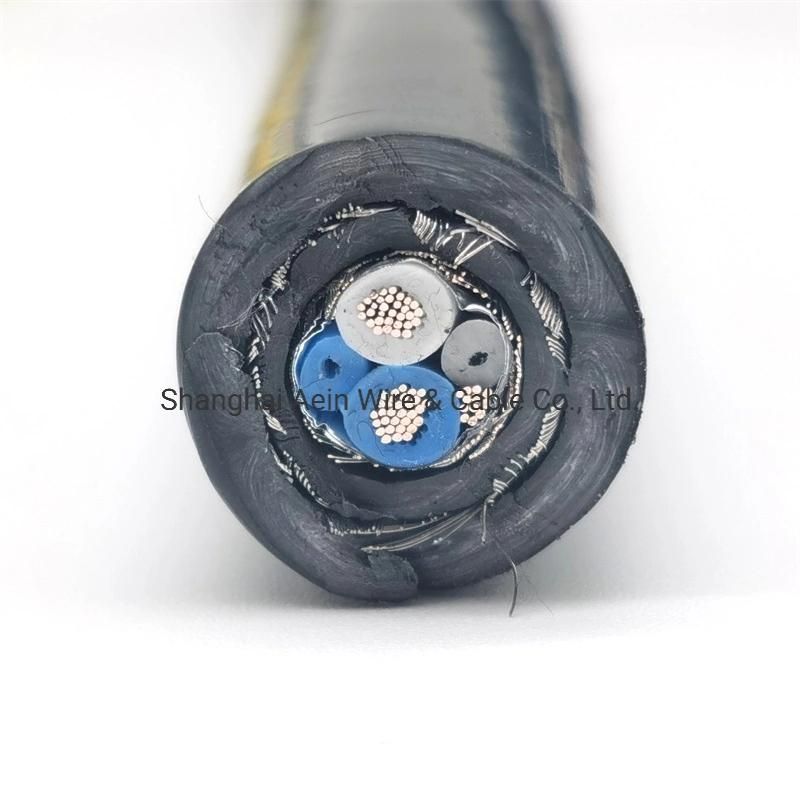

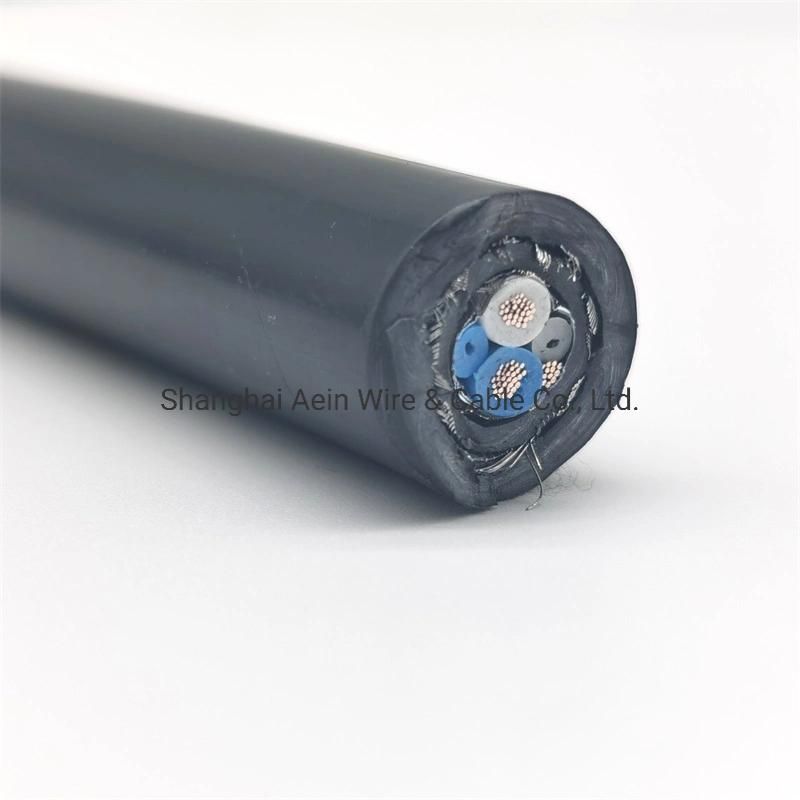

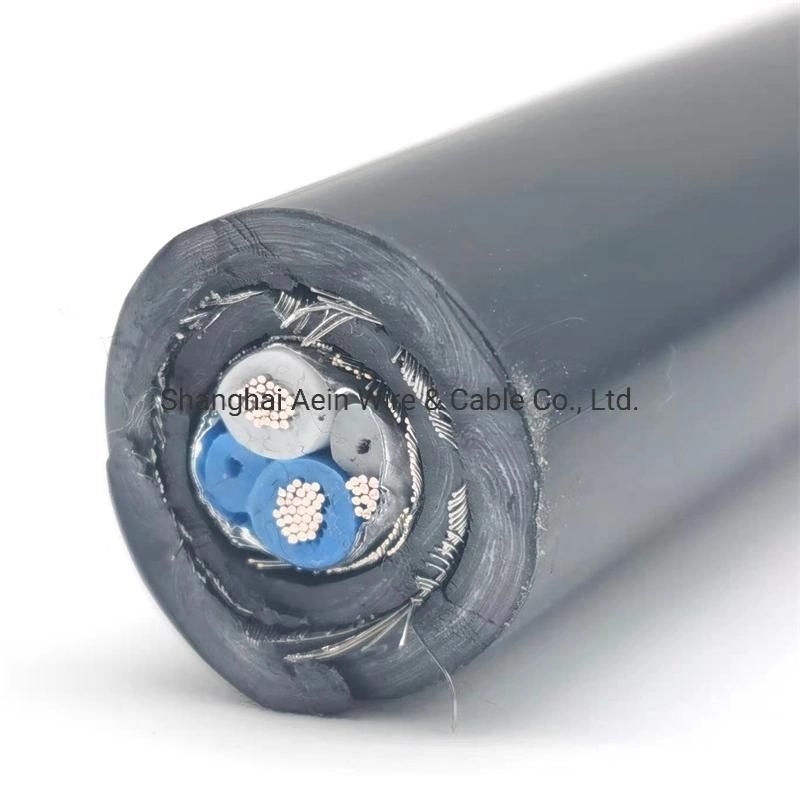

S 86 C Cable Flexible Control Cable with Numbered Cores and Overall Copper Screen

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：S 86 C Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemS 86 C Cable Flexible Control Cable with Numbered Cores and Overall Copper ScreenConductorBare copper stranded condutorInsulationPVCStrandingSpecially adjusted layering with non-woven tape over each layerInner sheathPVCScreenTinned copper braidingWrappingNon-woven tapeOuter sheathPVCCore numberMulticores (As client's requirement)Nominal voltageUo/U 300/500 VTesting voltage

Core/core 3000 V

Core/screen 2000 V

Min. bending radius fixed Continuously flexible: 7,5 x dTemperature range

Fixed laying: -40/+70°C

Flexible application: +5/+70°C

Fire performanceFlame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2ApplicationS 86 C is a shielded drag chain cable with numbered cores and overall copper screen as well as good EMC characteristics. The high flexible cable is recommended for use in wood working and packaging machines, assembly lines, and automation plants.
