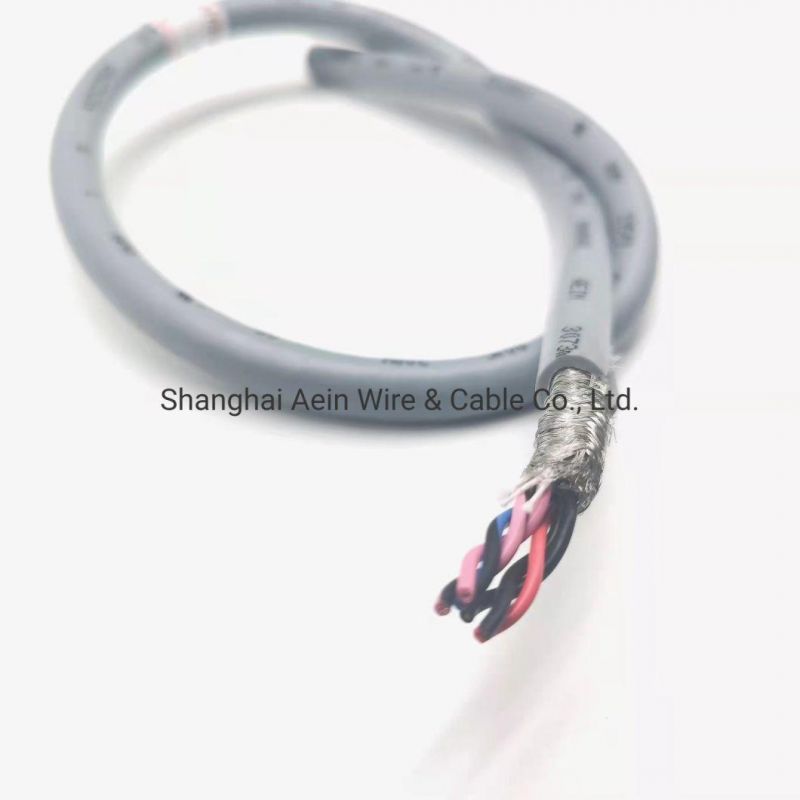

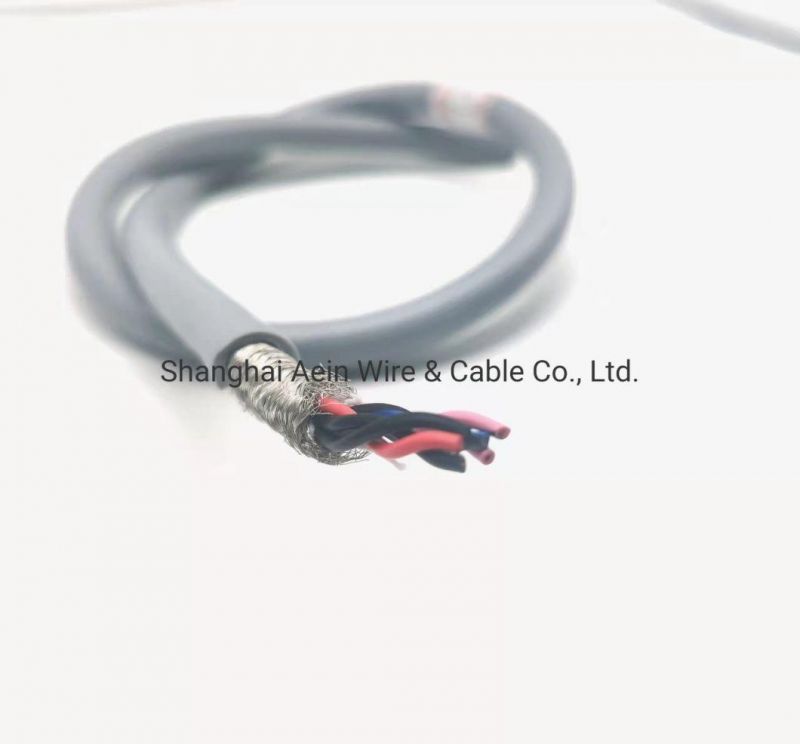

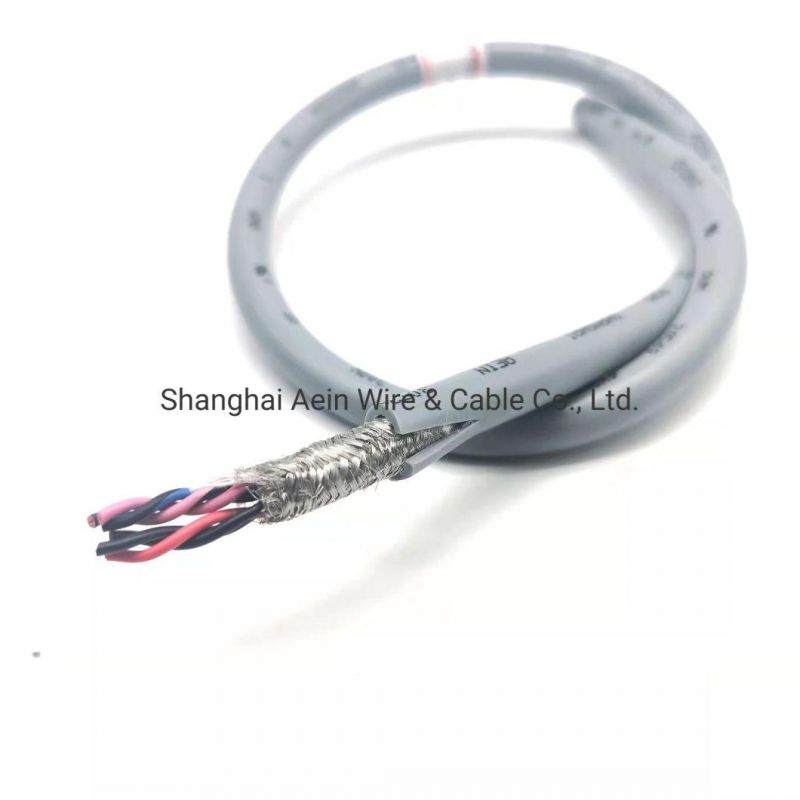

SD 86 C Tp Cable Paired Data Cable with Overall Copper Screen Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：SD 86 C TP Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemSD 86 C TP Cable Paired Data Cable with Overall Copper Screen CableConductorBare copper stranded condutorInsulationPVCStrandingCores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layerScreenTinned copper braidingWrappingNon-woven tapeOuter sheathPVCCore numberMulticores (As client's requirement)Peak operating voltageMax. 350 V acc. to VDE 0812Testing voltage

Core/core 1500 V

Core/screen 1200 V

Min. bending radius fixed Continuously flexible: 7,5 x dTemperature range

Fixed laying: -30/+70°C

Flexible application: -5/+70°C

Fire performanceFlame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2ApplicationSD 86 C TP is a continuously flexible twisted paired PVC data cable for cable drag chains with overall copper screen as well as a small bending radius. This drag chain cable is recommended for use in wood working and packaging machines, assembly lines, and automation plants.
