• Model NO.：YJSV BL46
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Yjsv
• Brand：Yifang

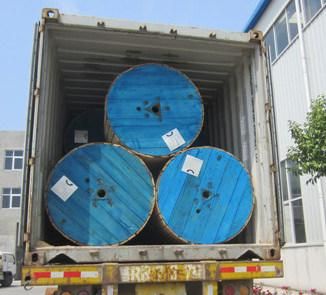

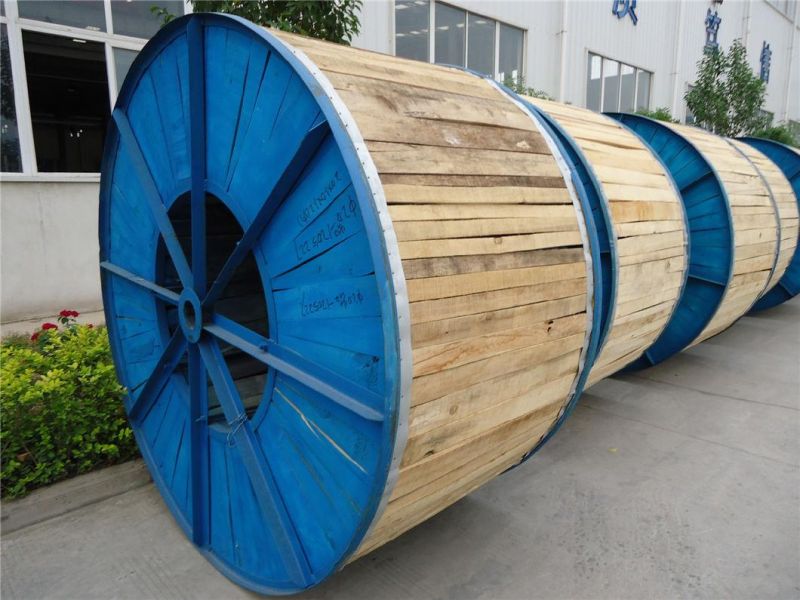

• Transport Package：Wooden Drum or Wooden&Steel Drum
• Specification：630mm2
• Trademark：Yifang
• Origin：Henan Province, China
• HS Code：8544601200
• Production Capacity：500 Kilometers,Month

Basic Info.

Model NO. YJSV BL46 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Yjsv Brand Yifang Transport Package Wooden Drum or Wooden&Steel Drum Specification 630mm2 Trademark Yifang Origin Henan Province, China HS Code 8544601200 Production Capacity 500 Kilometers/Month

Product Description

Copper Core Copper Wire &Copper Tape Screen PVC Jacket Single Core Cable

Product Description

The cable design conforms to IEC 60502 part 2. However if requested, we can separately offer guaranteed technical particulars for cables as per different international specifications or specific customer needs.

CONSTRUCTIONAL FEATURES
12/20 (24) Kv Single CU/XLPE/Copper Wire+Copper Tape Screen (CWS+CTS) /PVC Power Cable (IEC 60502-2)
Conductor
Aluminum Conductors upto 1000 sq mm will be circular compacted & stranded and shall comply with IEC-60228 Class 2.

Conductor screen
This will be an extruded layer of semiconducting XLPE applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen.

Insulation
This will be an extruded layer of insulating grade XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.

Insulation screen
This will be a layer of semiconducting XLPE which will be applied by tripe extrusion process over the insulation.

Metallic screen
It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer's requirement can also be provided on request.

Inner Sheath (Bedding)
Extruded layer of PVC or PE is applied over the laid-up cores. PVC is normally of grade ST2 or PE of grade ST7 as per IEC 60502 Part 2.

Outer sheath
An extruded layer is applied over the armour in case of armoured cables and over the laid up cores in case of unarmoured cables. Outer sheath material can be either PVC of grade ST2 or PE of grade ST7 as per IEC-60502 Part 2.

Section	Conductor diameter	Conductor weight	Insulation thickness	Outer sheath thickness	Overall diameter	Cable weight	Minimum bending radius	Max. DC resistance of conductor at 20 °C
mm2	mm	kg/km	mm	mm	mm	kg/km	mm	ohm/km
25	5.9	67	4.5	1.8	22.0	505	440	1.20
35	6.9	92	4.5	1.8	23.0	560	460	0.868
50	8.1	125	4.5	1.8	24.0	625	480	0.641
70	9.7	182	4.5	1.8	25.5	730	510	0.443
95	11.4	251	4.5	1.8	27.5	850	550	0.320
120	12.9	317	4.5	1.9	29.0	975	580	0.253
150	14.3	390	4.5	1.9	30.5	1090	610	0.206
185	16.0	493	4.5	2.0	32.5	1255	650	0.164
240	18.4	646	4.5	2.0	34.5	1485	690	0.125
300	20.6	803	4.5	2.1	37.0	1725	740	0.100
400	23.3	1027	4.5	2.2	40.5	2085	810	0.0778
500	26.3	1307	4.5	2.3	43.5	2480	870	0.0605
630	30.0	1721	4.5	2.4	47.5	3035	950	0.0469
800	34.2	2188	4.5	2.5	52.5	3715	1050	0.0367
1000	38.2	2759	4.5	2.7	57.0	4480	1140	0.0291
