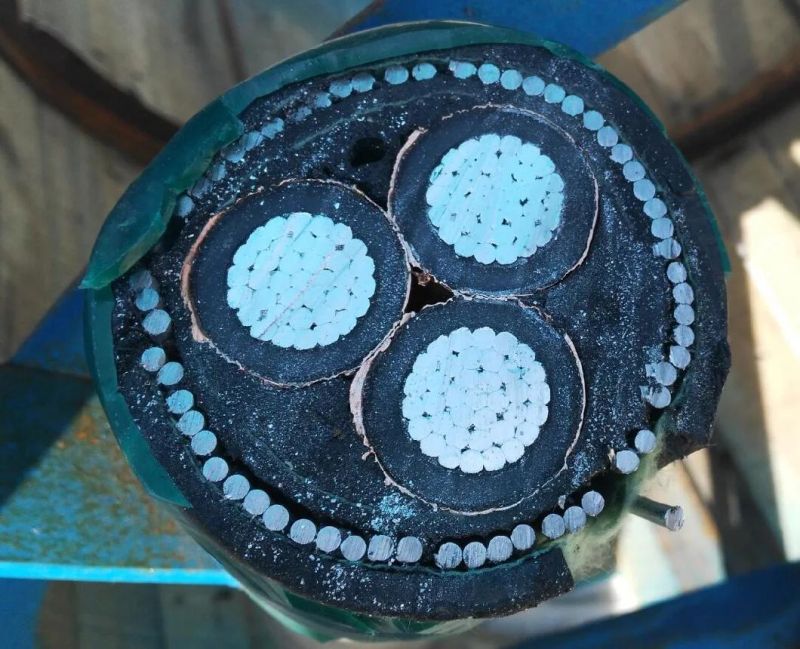

• Model NO.：11kV SWA cable BM31
• Wire Core Material：Aluminum Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：YJLV22
• Brand：Yifang
• Option Conductor：Copper
• Transport Package：Wooden or Wooden-Steel Drum
• Specification：3x70mm2
• Trademark：Yifang Cable
• Origin：Zhengzhou, China
• HS Code：8544492100
• Production Capacity：300km,Month

Reference Standards:IEC60502-2, IEC 60228, IEC60332 -1/2/3, BS6622, BS7835, VDE0276, AS/NZS 1429.1, GB/T 12706, etc.Rated Voltage:6/10kV, 6.35/11kV (12kV), 8.7/15kV, 12/20kV, 18/30kV,19/33kVCore Number:Single Core or Three Core 3x16mm2 power cable (1C or 3C)Available Dimensions:25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.Codes Available:N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY, N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRYYJV, YJLV, YJSV, YJLSV, YJV72, YJLV72, YJSV72, YJLSV72, YJV22, YJLV22, YJSV22, YJLSV22, YJV32, YJLV32, YJSV32, YJLSV32Application: 3x 300 sq mm power cables is used for power networks, underground, outdoors and in cable ducting. 3x 300 sq mm power cables is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected during installation.Construction: Conductor:Stranded round compacted copper or aluminum conductor (Cu / Al ), copper wire annealed.Conductor Screen:Semi-conducting materialInsulation:XLPE (Cross-Linked Polyethylene)Insulation Screen:Semi-conducting materialMetallic Screen:Copper tape screen or copper wire screen (CTS / CWS )Filler:PP ropeSeparator:Binding tapeBedding:PVC (Polyvinyl Chloride)Armouring:Single Core: Aluminium Wire Armoured (AWA) Multi-core: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA)Sheath:PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFRColour:Red or BlackTemperature Rating:0°C to 90°CMinimum Bending Radius:Single Core: 15 x overall diameter Three Core: 12 x overall diameter (Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)
