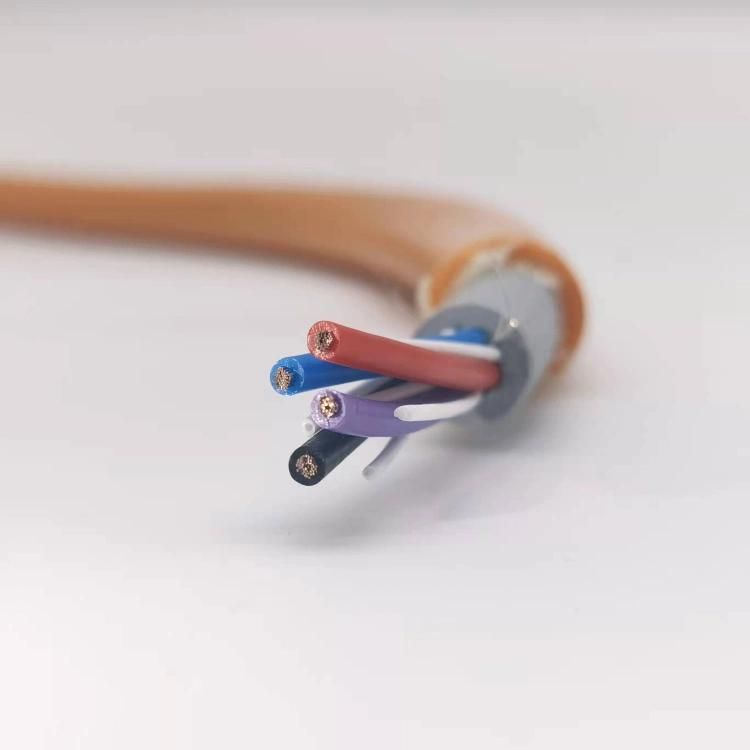

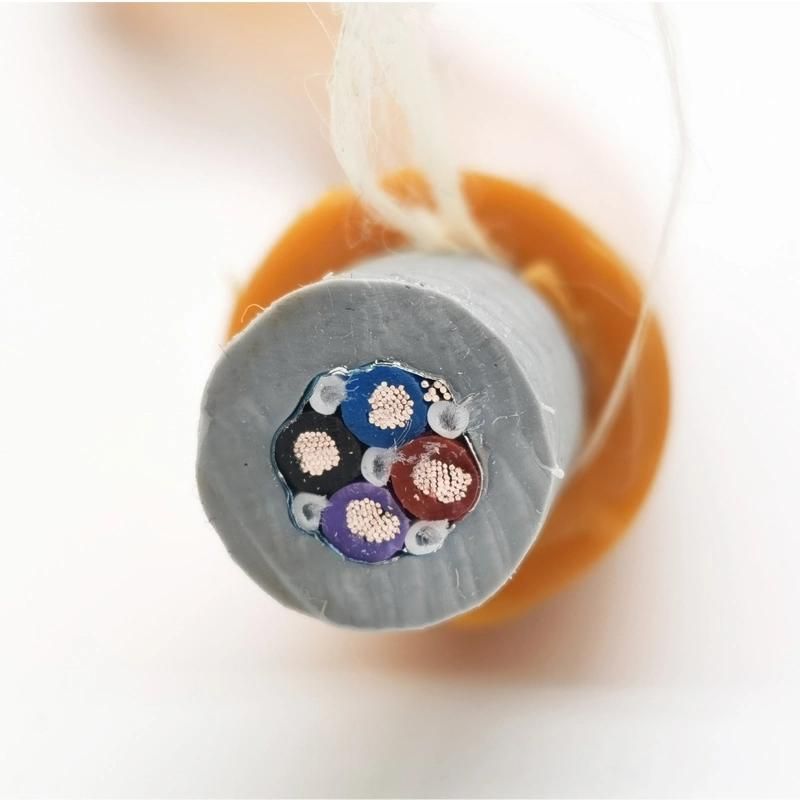

Fg16m16 Cable LSZH Thermoplastic Sheathed Power and Control Cable 0.6/1kv

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：LSZH
  • Insulation Material：Hepr
  • Material Shape：Round Wire

Base Info

  • Model NO.：FG16M16 Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFG16M16 Cable ConductorFine wired copper conductor, class 5InsulationHEPR insulation G16Filler Not fibrous and not hygroscopic fillerOuter SheathLSZHCore NumberMulti-coresTemperature rangeWorking temp fixed min/max [C]: -15°C to +90°CTemp at conductor max.90°CNominal Voltage600/1000 VColorOptionalApplicationPower and control use outdoor and indoor applications, even wet. Suitable for fixed installations at open air, in tube or canals, masonry, metals structures, overhead wire and for direct or indirect underground wiring. The mort important property of this kind of cable is its protection against smokes, toxic and corrosive gases in case of fire.
