• Model NO.：sftp cat6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Brand：Fuu
• Color Availability：Additional Cable Colors Available.
• Transport Package：305m
• Specification：0.55mm conductor
• Trademark：FUU
• Origin：China
• HS Code：8544200000
• Production Capacity：5000km,Month

Construction

Conductor:

23 AWG Solid Bare Copper

Pairs:

4 Pairs

Insulation:

1.02 mm FEP

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Filler:

Cross Filler

Shield 1:

PET

Drain Wire:

0.40±0.005mm TC

Shield 2:

Al/PET Foil,Foil face out

Shield 3:

Tinned Copper Braid

Rip Cord:

Cotton

Out Jacket:

8.1±0.2 mm  PVC CMP

Electrical Characteristics

Impedance

1 - 250MHz 100±15 Ohms

Insulation Resistance

>5000MΩ*KM

Dielectric strength

DC  2500V  2S

Max.Conductor DC
Resistance 20ºC

8.4 Ohms/100m

Res. unbalance (%)

Max. 2.5

Pair to Ground
Capacitance Unbalance

330 pF/100m

Transfer Impendance

Max 10 mOhms/m  @100Mhz

Installation temp.

 -30 - 50ºC

Operation temp.

 -20 - 75ºC



 Application

•  Exceeds ANSI/TIA-568-C.2 and ISO 11801 2nd Edition Class E Category 6 channel standards.

•  Exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156·5 Category 6 component standards.

•  Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

•  Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.

•  Descending length cable markings enable easy identification of remaining cable
   which reduces installation time and cable scrap.

•  Color Availability: Additional cable colors available.



Performance Characteristics

Frequency

RL                     (Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

20.0

2.2

590.0

62.0

74.3

72.3

67.8

64.8

4

23.0

4.1

572.0

62.0

65.2

63.2

55.7

52.7

10

25.0

6.5

565.0

62.0

59.3

57.3

47.8

44.8

16

25.0

8.2

563.0

62.0

56.2

54.2

43.7

40.7

20

25.0

9.3

562.0

62.0

54.7

52.7

41.7

38.7

31.25

23.6

11.5

560.0

62.0

51.8

49.8

37.9

34.9

62.5

21.5

16.2

558.0

62.0

47.3

45.3

31.8

28.8

100

20.1

20.4

557.0

62.0

44.3

42.3

27.8

24.8

200

18.0

29.2

556.0

62.0

39.7

37.7

21.7

18.7

250

17.3

33.8

555.0

62.0

38.3

36.3

19.8

16.8

Note: The above transmission performance tor the 100M, 20±2ºC under the conditions tested.



Order Informations

Marking

SF/UTP CAT6 4PR 23AWG PVC CMP
XXX (or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Our Service:

   1) Quick Response --All inquiries will be replied within 24 hours.
   2) Professional Quotation --All prices will be quote according to customers' detailed
   specifications & requirements.
   3) OEM & ODM Service
   4) Can print your own brand on the jacket printing with foot or meter marking.
   5) Make customized designs for stickers, drums, outer cartons, etc.
   6) Stable Quality --All materials and products passed restrict QC procedures,comply with
   international standards.
   7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
   Confirmation in usual.

Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.

FAQ:

Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

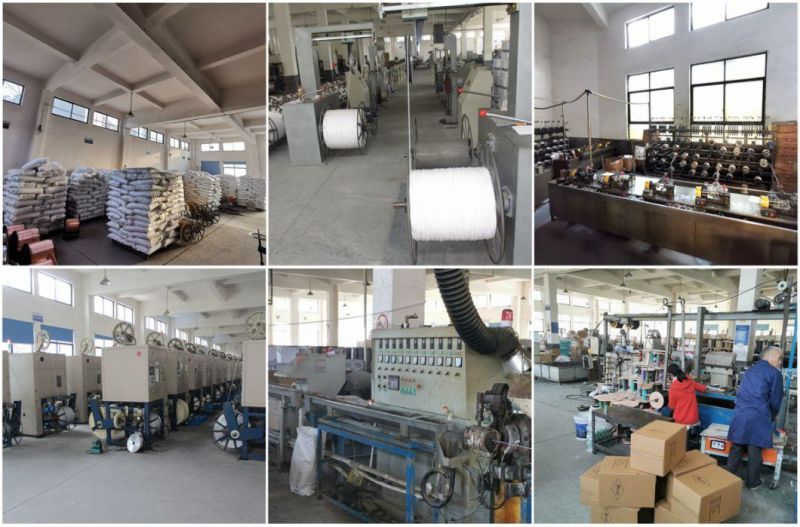

Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
