• Model NO.：FR-N1XD9-AR
• Wire Core Material：Aluminium
• Certification：ISO, CCC, CE, VDE
• Model：Fr-N1xd9-Ar
• Brand：Yifang
• Product Name：Cable Aerial Bundle Fr-N1xd9-Ar NFC 33 209
• Transport Package：Wooden Drum, Wooden Iron Drum, Steel Drum, etc
• Specification：IEC, BS, DIN, ASTM, JIS, GOST, ETC
• Trademark：Yifang
• Origin：China
• HS Code：8544492100
• Production Capacity：1, 000km Per Month

Basic Info.

Model NO. FR-N1XD9-AR Wire Core Material Aluminium Certification ISO, CCC, CE, VDE Model Fr-N1xd9-Ar Brand Yifang Product Name Cable Aerial Bundle Fr-N1xd9-Ar NFC 33 209 Transport Package Wooden Drum, Wooden Iron Drum, Steel Drum, etc Specification IEC, BS, DIN, ASTM, JIS, GOST, ETC Trademark Yifang Origin China HS Code 8544492100 Production Capacity 1, 000km Per Month

Product Description

Product Details

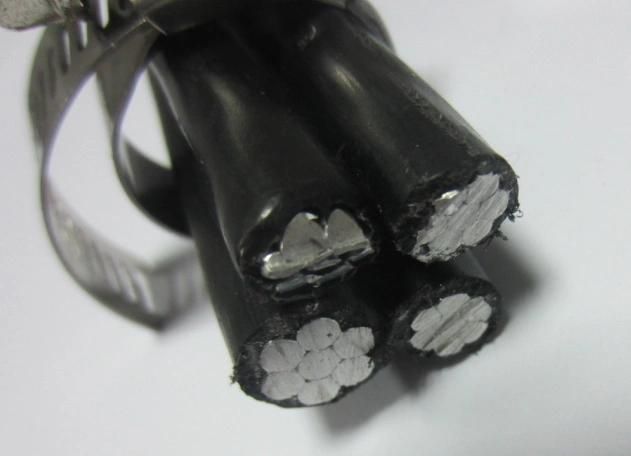

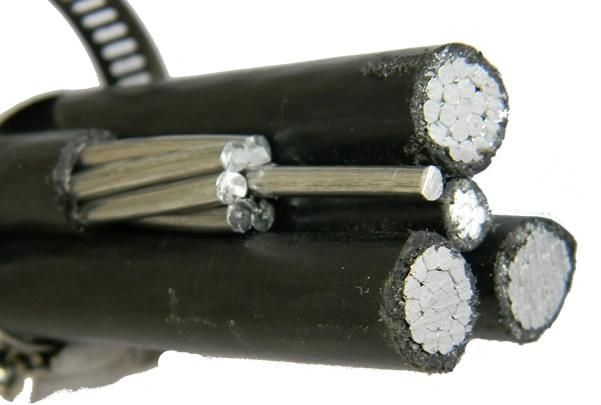

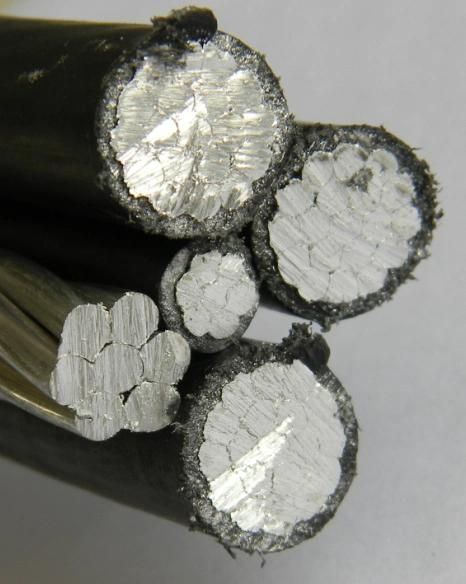

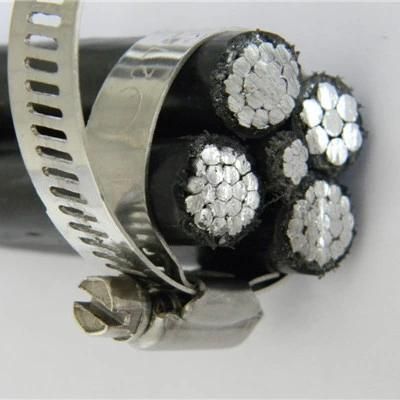

Cable Aerial Bundle NFC 33 209 with Carrier 54,6mm2
The insulated neutral carrier network twist NF C 33-209 is intended for rural and public low voltage supply.



It also has the following properties:

resistance to ultraviolet radiation;
ozone resistance;
high dielectric strength;
lightness and maneuverability.

POSE:

The requirements of standard NF C 11-201 determine the installation criteria for low-voltage overhead lines.
Their laying in the ground, even under conduit is PROHIBITED.

DESCRIPTION:
The torsade comprises an insulated aluminum core crosslinked polyethylene, it has a very good behavior over time and at high temperature.


Product Introduction




CARRIER CHARACTERISTICS:

Core: AGS Aluminum Alloy Wired Circular
insulation: black crosslinked polyethylene
nominal section: 54.6 mm²
diameter on the core: 9.2 to 9.6 mm
diameter on insulation: 12.3 mm min, 13.0 max
minimum breaking load: 1660 daN
modulus of elasticity: 62000 MPa
linear expansion coefficient: 23 * 10-6 ° C-1
MARKING:
Neutral:
Manufacturer Name Cable Size Voltage NF C 33-209, "metric marking" in ink, Year, etc..
Phase 1, 2, 3:
the number of the phase is printed and marked on the insulation

ELECTRICAL SPECIFICATIONS :
Test voltage: 4 kV AC,
Shock resistance: 1.2 / 50 μs of positive or negative polarity with a peak value of 20 kV.
Product Parameters

Size	Twist Dia.(mm)	Tension(daN)	Standard Length(m)
3x25+54.6	24.0	1660	1000
3x35+54.6+16	28.0	1660	1000
3x35+54.6+2x16	30.0	1660	1000
3x35+54.6	27.0	1660	1000
3x50+54.6	29.0	1660	500
3x50+54.6+16	30.0	1660	500
3x50+54.6+2x16	32.0	1660	500
3x70+54.6+16	33.0	1660	500
3x70+54.6+2x16	35.0	1660	500

Product Details Show
