• Model NO.：RG 11
• Brand：General Clad
• Dielectric Material：Foam FEP
• Jacket Material：PVC
• Shield (Braid) Coverage：50 %
• Shield (Braid) Material：Aluminum
• Shield (Tape) Material：Aluminum,Poly, Bonded
• Inner Shield (Braid) Material：Tinned Copper
• Inner Shield (Braid) Coverage：60 %
• Inner Shield (Tape) Material：Aluminum,Poly
• Transport Package：Packed by Carton,Wooden Drum,Wooden Pallet
• Trademark：Copper clad steel wire
• Origin：China
• Production Capacity：200km,Month

Product Number2287VCable TypeSeries 11Center Conductor TypeSolidConstruction TypeNon-armoredJacket ColorWhiteSupported ApplicationVideo
DimensionsCable Length304.8 m | 1000 ftDiameter Over Center Conductor, specific0.0641 in per 1 strandDiameter Over Dielectric7.061 mm | 0.278 inDiameter Over Inner Shield (Braid)7.595 mm | 0.299 inDiameter Over Inner Shield (Tape)7.214 mm | 0.284 inDiameter Over Jacket Tolerance±0.008 inDiameter Over Jacket, nominal9.042 mm | 0.356 inDiameter Over Outer Shield (Braid)8.204 mm | 0.323 inJacket Thickness0.432 mm | 0.017 inJacket Thickness, minimum spot0.305 mm | 0.012 inCenter Conductor Gauge14 AWGInner Shield (Braid) Gauge36 AWGOuter Shield (Braid) Gauge36 AWG
Electrical SpecificationsCapacitance52.493 pF/m | 16 pF/ftCharacteristic Impedance75 ohmCharacteristic Impedance Tolerance±3 ohmConductor dc Resistance11 ohms/kft | 36.089 ohms/kmDielectric Strength, conductor to shield4000 VdcJacket Spark Test Voltage2500 VacNominal Velocity of Propagation (NVP)86 %Shield dc Resistance1.7 ohms/kft | 5.577 ohms/kmStructural Return Loss15 dB @ 1000-3000 MHz | 20 dB @ 5-1000 MHzStructural Return Loss Test Method100% Swept Tested
Material SpecificationsCenter Conductor MaterialCopper-clad steel wireDielectric MaterialFoam FEPJacket MaterialPVCInner Shield (Braid) Coverage60 %Inner Shield (Braid) MaterialTinned copperInner Shield (Tape) MaterialAluminum/PolyOuter Shield (Braid) Coverage50 %Outer Shield (Braid) MaterialTinned copperOuter Shield (Tape) MaterialAluminum/Poly, non-bonded

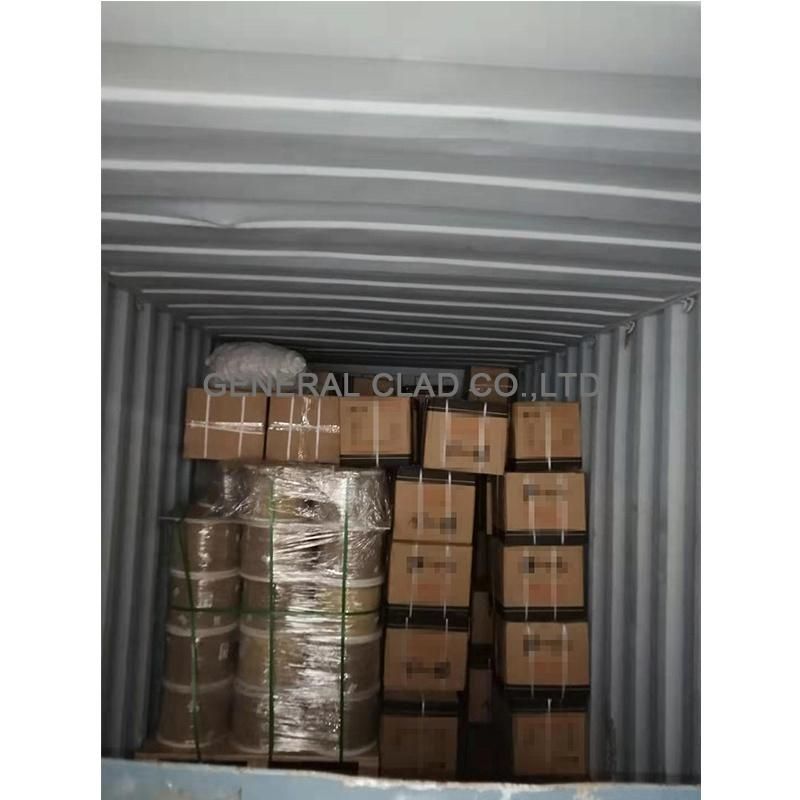

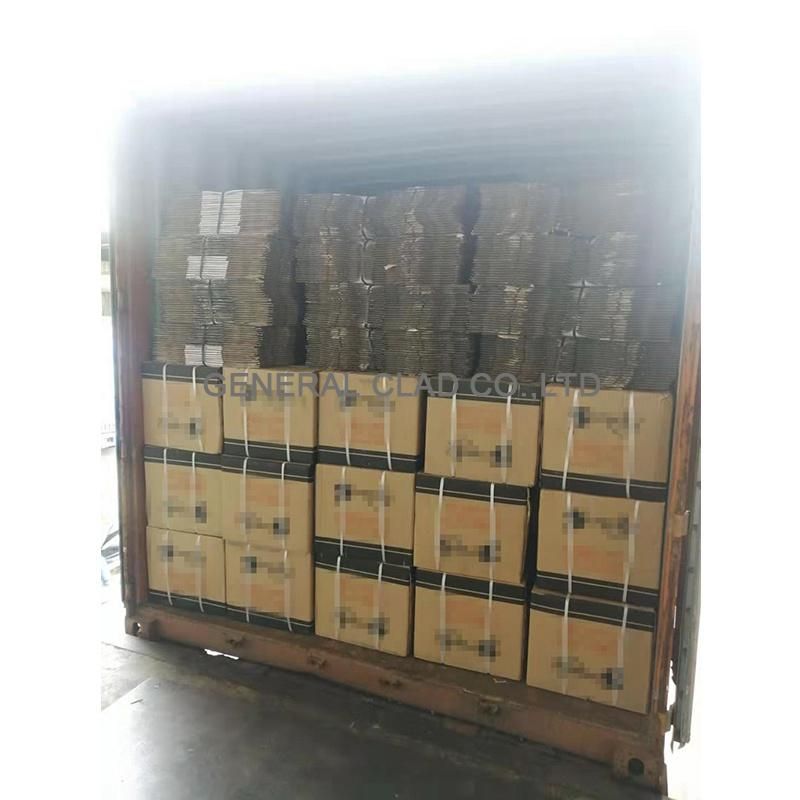

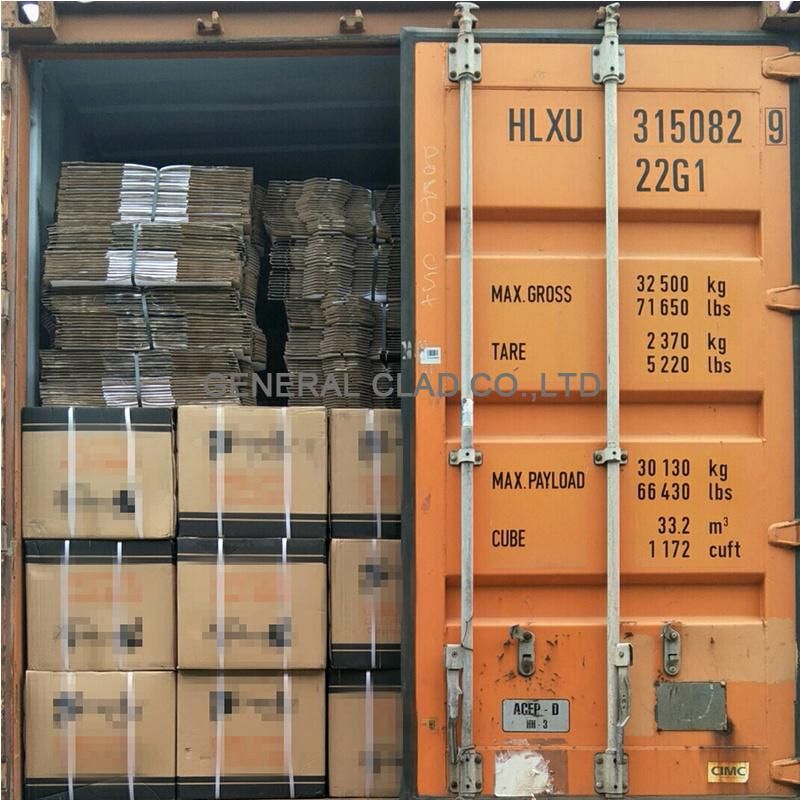

Package
