• Model NO.：YJLV32
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Yifang
• Core：Single Core or 3 Cores
• Rated Voltage：11kv
• Armoured：Steel Wire,Tape, Aluminium Wire,Tape Armoured
• Color of Sheath：Black, Red or Others
• Transport Package：Wooden or Steel-Wooden Drum
• Specification：16mm2--630mm2
• Trademark：Yifang
• Origin：Henan, China
• Production Capacity：5000km Per Year

Basic Info.

Model NO. YJLV32 Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, CCC, RoHS Brand Yifang Core Single Core or 3 Cores Rated Voltage 11kv Armoured Steel Wire/Tape, Aluminium Wire/Tape Armoured Color of Sheath Black, Red or Others Transport Package Wooden or Steel-Wooden Drum Specification 16mm2--630mm2 Trademark Yifang Origin Henan, China Production Capacity 5000km Per Year

Product Description

                                      11kv aluminium armoured cable

1. Application:
This kind of 11kv aluminium armoured cable is used for power transmission, construction, industrial, and can be berial directly or in duct.

2. Construction:
For the 11kv medium voltage cable, the normal construction is following:
Conductor: copper or aluminium according to the IEC 60228;
Conductor screen: semi-conductor material;
Insulation: XLPE
Insulation screen: semi-conductor material
Metal screen: copper tape/wire
core: 1 core or 3 core. if 3 cores, fillers and wrapping are needed to form the cores into a round cables.
Section area: 16mm2 -- 630mm2
Inner screen: PVC or PE;
Armoured: steel/aluminium wire/tape
sheath: PVC/PE

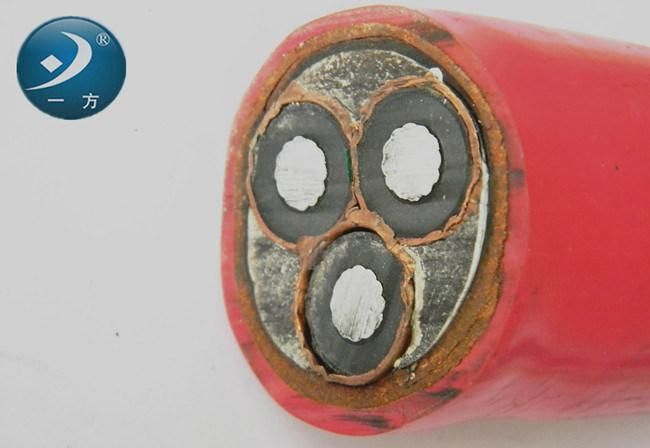

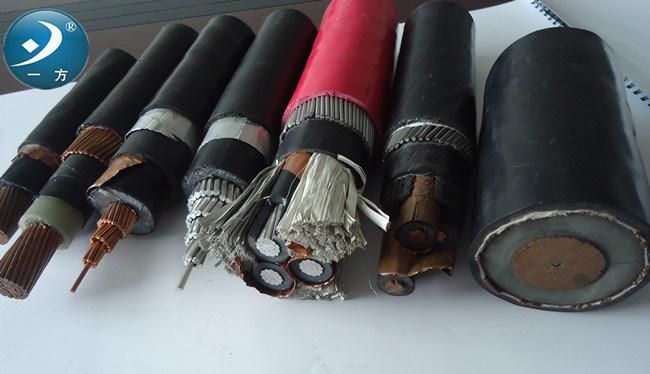

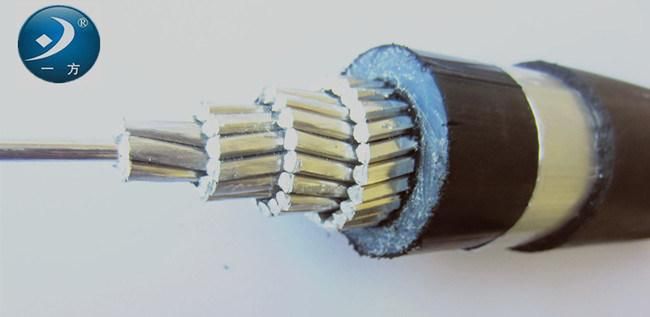

3. Pictures show:




4. Production:
Production about this kind cable ( 11kv aluminium conductor, armoured cable) can be arranged according to GB, IEC, BS, NF, CSA, ASTM, etc as well as your special requirement;

5. Package:
Steel-wooden drum

6. company info:

Zhengzhou Yifang Electric Group Inc. was found in 2001, with 140000sq area, more than 300 employees.

Our products involve low, medium and high voltage, from 1kv to 220kv, including PE/PVC/XLPE insulated power cable, ABC overhead cable, building wire, control cable, rubber cable, welding cable, bare conductor etc.

After years' development, we have gained good reputation from our clients in Asia, Afria, Latin-America, Middle-east, Europe, etc,  and become one of the powerful manufacturer and exporters in China.

7. Contact info:

Dear friend, if you have any question, donnot hesitate to contact us.

You sincere friend Selena is always here waiting for you.



Mobile: +86 15515796030
http://yifangcable.en.made-in-china.com/
