• Product Name：Quuadruplex(3+1) Aluminum Conductor Cable
• Transport Package：Drum, Reel or According to Customers′ Request
• Specification：IEC, BS, DIN, ASTM, GOST, JIS etc
• Trademark：Yifang
• Origin：China
• HS Code：8544492100
• Production Capacity：5000km Per Month

Basic Info.

Product Name Quuadruplex(3+1) Aluminum Conductor Cable Transport Package Drum, Reel or According to Customers′ Request Specification IEC, BS, DIN, ASTM, GOST, JIS etc Trademark Yifang Origin China HS Code 8544492100 Production Capacity 5000km Per Month

Product Description

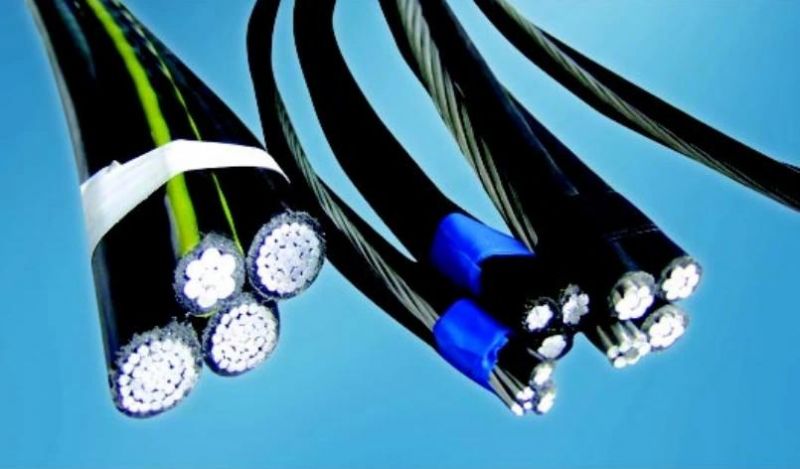

Quadruplex Service Drop Aluminum Conductors AAC Neutral-Messenger
Quadruplex Service Drop Aluminum Conductors ACSR Neutral-Messenger
Quadruplex Service Drop Aluminum Conductors AAAC 6201 Alloy Neutral-Messenger

Applications
Used to supply 3 phase power, usually from a pole-mounted transformer, to the user s service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75 for polyethylene insulated conductors or 90 for cross linked polyethylene (XLP) insulated conductors.

Construction
Conductors are concentrically stranded, compressed 1350- H19 aluminum. Insulated with either polyethylene or XLP cross linked polyethylene. Neutral messengers are concentrically stranded 6201, AAC, or ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Standards
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded,Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Quadruplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

Note
Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTMB-399 for 6201.Conductor temperature of 90C for XLR 75C for Poly; ambient temperatures of 40; emissivity 0.9; 2ft./sec/wind in sun. To determine currentampacity by conductor size, please consult The National Electric Code, latest edition.

Item #	Phase conductor size AWG	Phase conductor stranding	Phase conductor Insulation Thickness	Bare Neutral Messenger Size AWG	Bare Neutral Messenger Stranding	Bare Neutral Messenger breaking strength	Weight Per 1000ft-XLP	Weight Per 1000ft-Poly	Ampacity -XLP	Ampacity -Poly
Clydesdale	4	7/w	45 mls	4	7	881 Lbs	208 Lbs	201.8 Lbs	100 Amps	80 Amps
Pinto	4	7/w	45 mls	4	7	881 Lbs	223 Lbs	207.9 Lbs	100 Amps	80 Amps
Mustang	2	19/w	45 mls	2	7	1350 Lbs	333 Lbs	312.6 Lbs	135 Amps	105 Amps
Criollo	1/0	19/w	60 mls	1/0	7	1990 Lbs	529 Lbs	504.5 Lbs	180 Amps	140 Amps
Percheron	2/0	19/w	60 mls	2/0	7	2510 Lbs	649 Lbs	620.5 Lbs	205 Amps	160 Amps
Hanoverian	3/0	19/w	60 mls	3/0	19	3310 Lbs	799 Lbs	765.6 Lbs	235 Amps	185 Amps
Oldenburg	4/0	19/w	60 mls	4/0	19	4020 Lbs	986 Lbs	946.7 Lbs	275 Amps	210 Amps
Morochuca	6	7/w	45 mls	6	6/1	1190 Lbs	152 Lbs	147.4 Lbs	75 Amps	60 Amps
Chola	6	Solid	45 mls	6	6/1	1190 Lbs	162 Lbs	151.7 Lbs	75 Amps	60 Amps
Morgan	4	7/w	45 mls	4	6/1	1860 Lbs	226 Lbs	220 Lbs	100 Amps	80 Amps
Hackney	4	7/w	45 mls	4	6/1	1860 Lbs	241 Lbs	226.1 Lbs	100 Amps	80 Amps
Palomino	2	19/w	45 mls	2	6/1	2850 Lbs	362 Lbs	342.6 Lbs	135 Amps	105 Amps
Costena	1/0	19/w	60 mls	1/0	6/1	4380 Lbs	575 Lbs	550.6 Lbs	180 Amps	140 Amps
Grullo	2/0	19/w	60 mls	2/0	6/1	5310 Lbs	707 Lbs	678.7 Lbs	205 Amps	160 Amps
Suffolk	3/0	19/w	60 mls	3/0	6/1	6620 Lbs	872 Lbs	838.9 Lbs	235 Amps	185 Amps
Appaloosa	4/0	19/w	60 mls	4/0	6/1	8350 Lbs	1079 Lbs	1039.2 Lbs	275 Amps	210 Amps
Bronco	336.4	19/w	80 mls	336.4	6/1	8580 Lbs	1613 Lbs	1568.2 Lbs	370 Amps	280 Amps
Gelding	336.4	19/w	80 mls	4/0	6/1	8350 Lbs	1548 Lbs	1494.3 Lbs	370 Amps	280 Amps
Bay	6	Solid	45 mls	6	7	1110 Lbs	145 Lbs	140.0 Lbs	75 Amps	60 Amps
French Coach	6	7/w	45 mls	6	7	1110 Lbs	155 Lbs	144.3 Lbs	75 Amps	60 Amps
German Coach	4	Solid	45 mls	4	7	1760 Lbs	214 Lbs	208.3 Lbs	100 Amps	80 Amps
Arabian	4	7/w	45 mls	4	7	1760 Lbs	229 Lbs	214.4 Lbs	100 Amps	80 Amps
Belgian	2	7/w	45 mls	2	7	2800 Lbs	344 Lbs	323.1 Lbs	135 Amps	105 Amps
Shetland	1/0	19/w	60 mls	1/0	7	4460 Lbs	546 Lbs	521.1 Lbs	180 Amps	140 Amps
Thoroughbred	2/0	19/w	60 mls	2/0	7	5390 Lbs	670 Lbs	641.5 Lbs	205 Amps	160 Amps
Trotter	3/0	19/w	60 mls	3/0	7	6790 Lbs	825 Lbs	791.8 Lbs	235 Amps	185 Amps
Walking	4/0	19/w	60 mls	4/0	7	8560 Lbs	1019 Lbs	979.7 Lbs	275 Amps	210 Amps
