• Material Shape：Round Wire
• Range of Application：LSOH
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Edgarcn
• Transport Package：1PCS , Bag 20PCS , Box
• Specification：40*30*23
• Origin：China
• HS Code：8544422900
• Production Capacity：1000000 PCS Per Month

Basic Info.

Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Edgarcn Transport Package 1PCS / Bag 20PCS / Box Specification 40*30*23 Origin China HS Code 8544422900 Production Capacity 1000000 PCS Per Month

Product Description

Custom OEM & ODM Over Molding M12 Ethernet Profinet Cable Straight & Right Angle with PUR Cable, Color Black, Length 10m



M6 / M8 / M12 / M25 series thread locking cable


M6 / M8 / M12 / M25 series thread locking Connector System for machine industrial automation and control applications provides a solution that safely and reliably ensures the communication in industrial environments. This connector system also f nds applications outside of its traditional industries where a compact reliable.

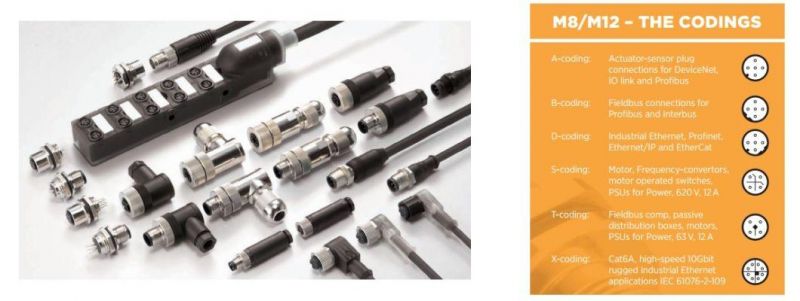

A-code	Actuator-sensor plug connections for DeviceNet, IO link and Prof bus
B-code	Fieldbus connections for Prof bus and Interbus
D-code	Industrial Ethernet, Prof net,Ethernet/IP and EtherCat
S-code	Motor, Frequency-convertors,motor operated switches,PSUs for Power, 620V, 12A
T-code	Fieldbus comp, passive distribution boxes, motors, PSUs for Power, 63V, 12A
X-code	BitmapCat6A, high-speed 10Gbit rugged industrial Ethernet applications IEC 61076-2-109

• M6 / M8 / M12 / M25 Field Installable cable
• M6 / M8 / M12 / M25 Straight Field Installable
• M6 / M8 / M12 / M25 Angled Field Installable
• M6 / M8 / M12 / M25 Panel Mount cable
• M6 / M8 / M12 / M25 Panel Solder PCB Mount cable
• M6 / M8 / M12 / M25 X-Coded Field Installable
• M6 / M8 / M12 / M25 Series Male Straight cable
• M6 / M8 / M12 / M25 Series Female Straight cable
• M6 / M8 / M12 / M25 Series Male Angled cable
• M6 / M8 / M12 / M25 Series Female Angled cable

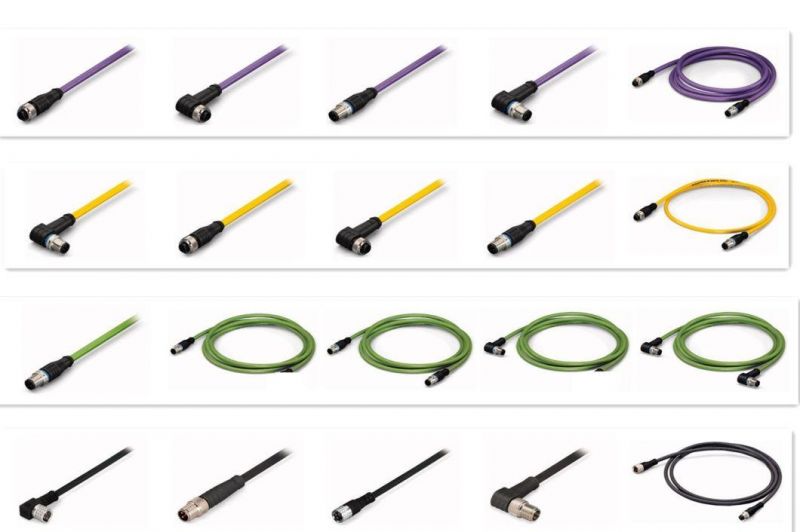

-PROFIBUS cable / System bus cable / Ethernet / profinet cable / Power supply cable
-PROFIBUS cable, straight & right angle with PUR cable , Color purple , length 2M
-PROFIBUS cable, straight cable
-PROFIBUS cable, right angle
-System bus cable, straight & right angle with PUR cable , Color Yellow , Length 2m
-System bus cable, straight
-System bus cable, right angle 5 m one end of cable is fitted
-Ethernet/profinet cable , straight & right angle with PUR cable , Color Yellow , Length 2m
-Ethernet/profinet cable, straight
-Ethernet profinet cable right angle
-Ethernet/profinet cable , straight & right angle with PUR cable , Color Black , Length 2m
-Ethernet/profinet cable , straight with wire ends fitted with plug/socket
-Ethernet/profinet cable, right angle 10 m both wire ends fitted with plug/socket
-Power supply cable , straight & right angle with PUR cable , Color Gray , Length 2m
-Power supply cable , straight with PUR cable , Color Gray , Length 2m
-Power supply cable , right angle with PUR cable , Color Gray , Length 2m
-Power supply cable, straight 2 m one end of cable is fitted
-Sensor/actuator cable fitted with one socket (with free wire end) 3 pole
-Sensor/actuator cable both wire ends fitted with plug/socket 3 pole


Size	Pins	Rated	Maximum Current per pin	Polution grade
M8	3	60V	4A	3
M8	4	30V	4A	3
M12	3	250V	4A	3
M12	4	250V	4A	3
M12	5	125V	4A	3
M12	8	60V	2A	3
M12	12	30V	2A	3

COMPANY PROFILE


☆ Privately held company, established in 1999☆ Sales volume over 16 Million USD since 2017☆ OEM & ODM company, with employees more than 250 persons, 7260 square-meters in size☆ Service for economical solutions and innovative wire harnesses design & manufacturing☆ IATF16949 (2016) & ISO 9001 (2015), and UL certified supplier with wiring No. E468011 & cable No. E479323


CERTIFICATION






Q&A
 1. Q: Can you help to design?
A: Yes, we are an ODM / OEM company, beyond we have been specializing in wire harness & Cable assembly since 1999.
2. Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
3. Q: What if quality issues occur when customer discover?
A: Our quality and engineer team will positively respond for the quality issues with 72 hours, as we are intend to make long-stand strategy with customer and the value is to provide better service.
4. Q: Do you have any standard products to cut down customers lead time for prototype and tooling cost?
A: Yes, there are over 1000 sets of molds and some of them can be used for customer directly. Moreover, Edgar is specialized in wire harness over 20
Years with 5000+ products
