Airfield Ground Lighting Cables 6mm XLPE/PVC 5kv Primary Cable for Agl
Henan Hongda Cable Co., Ltd.- Application：Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：5kV Primary Cable
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：Agl
- Brand：OEM
- Faa Specification：AC 150,5345-7D (L-824)
- Transport Package：Wooden Drum
- Specification：6sqmm
- Trademark：OEM
- Origin：China(Mainland)
- HS Code：8544601200
- Production Capacity：500 Kilometer,Month
Description

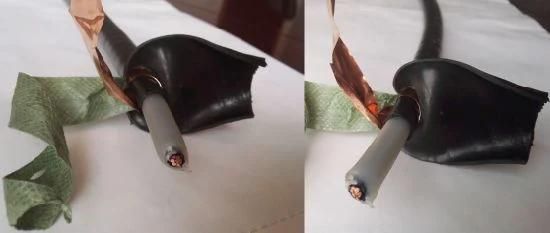

Core * cross sectional area
mm²
Conductor
assembly
Insulation
thickness
mm
Screen tape
mm
Sheath
thickness
mm
Overall
diameter
mm
Weight kg/km
1×6mm2
7-stranded
2.3
0.08 x 22
1.14
11.2
170
1×AWG8
7-stranded
2.3
0.08 x 22
1.14
11.6
200

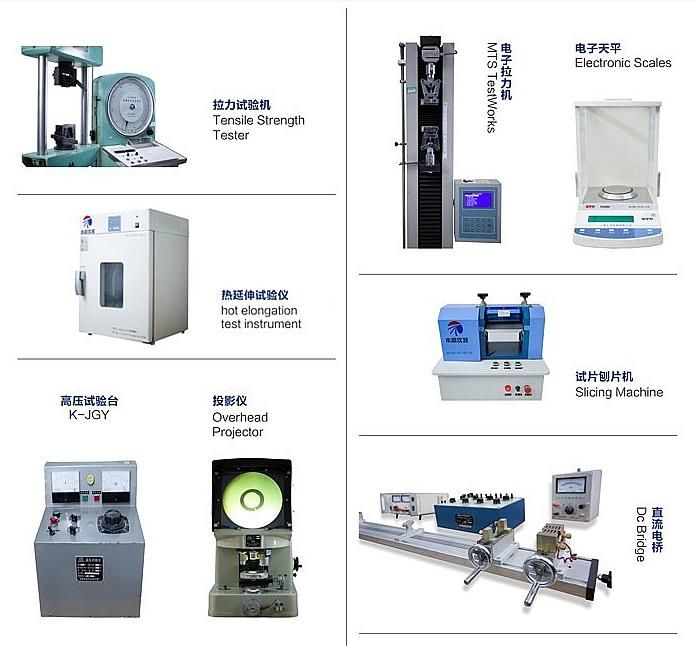

Cable Voltage Test and Partial Discharge Test
Packing shipping
