• Model NO.：More detail good price IEC standard aluminum power
• Material Shape：Round Wire
• Range of Application：Underground
• Certification：ISO9001, CE, CCC, RoHS, VDE
• Brand：Hongda
• Relate Voltage：0.6,1kv
• Key Word：Power Cable

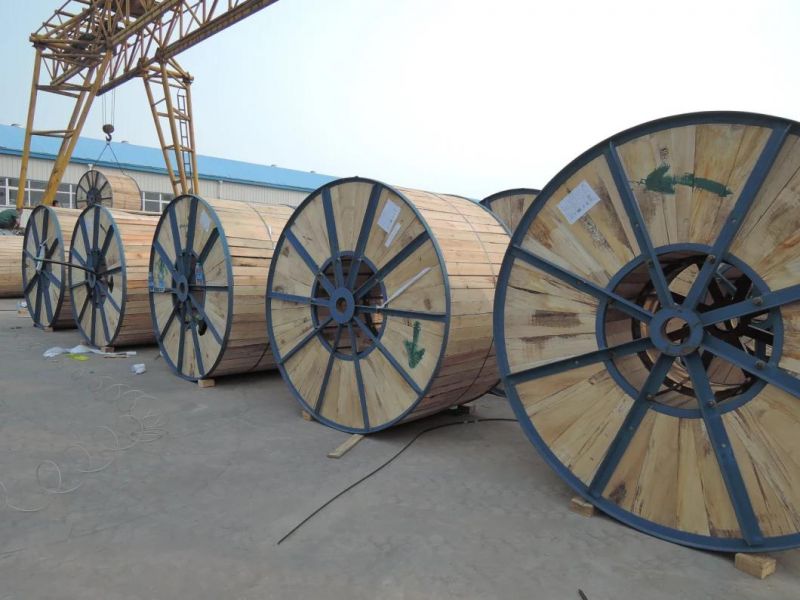

• Transport Package：Wooden Drum and Steel Wooden Drum
• Specification：More detail good price IEC standard aluminum power
• Trademark：hongda cable
• Origin：Henan China
• HS Code：8544492100
• Production Capacity：50000meter,Week

U-1000 R2V - Technical data and testsStandards: NF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100Nominal voltage U0/U: 0,6/1 kVTest voltage (50 Hz): 4 kVMaximun voltage Um: 1,2 kVMaximun operating temperature: +90° CMaximun short circuit temperature: +250° CMin. operating temperature
(without mechanical shocks): -25° CMinimum installation and use temp.: -10° CMinimum bending radius per
D cable diameter (in mm): 6 x DMaximum pulling stress: 5 kg/mm² (of copper cross section)Core colourssingle core : black
two cores : blue-brown
three  cores : brown-black-blue  (1,5/2,5 mmq); brown-black-gray (4 mmq)  or Y/G-blue-brown)
four cores : blue-brown-black-gray (or Y/G instead blue)
five cores : blue-brown-black-gray-Y/G (or black instead Y/G)Sheath colour: black Soil      CUALCuAlCuAlYJV CU/XLPE/PVC
YJLV
AL/XLPE/PVCmm²mmmmmmmmkg/kmkg/kmAAAA 4×1.5 RE1.380.71.810.9157.8120.521-26- 4×2.5 RE1.780.71.811.9205.1142.928213526 4×4 RE2.240.71.813.0272.3172.837284635 4×6 RE2.760.71.814.2371.0221.847375646 4×10 CC3.80.71.816.8543.9295.264497659 4×16 CC4.80.71.819.2787.2389.284649878 4×25 CC6.00.91.823.01188.9567.11158712698 4×35 CC7.00.91.825.41577.4706.9141120152130 4×50 SM8.01.01.926.12134.8891.2172151181161 4×70 SM9.51.12.030.12931.81190.8218183222192 4×95 SM11.01.12.133.53895.11532.3269238267234
