• Model NO.：KX6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC, UL, VDE, Reach
• Model：Kx6
• Brand：OEM
• CCTV：Kx6
• Transport Package：10m,15m,20m,25m,40m,50m,100m,200m,300m Reel , Coil
• Specification：CE, UL, ETL, RoHS
• Trademark：OEM
• Origin：China
• HS Code：85442000
• Production Capacity：20000km Per Month

Basic Info.

Model NO. KX6 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, UL, VDE, Reach Model Kx6 Brand OEM CCTV Kx6 Transport Package 10m/15m/20m/25m/40m/50m/100m/200m/300m Reel / Coil Specification CE, UL, ETL, RoHS Trademark OEM Origin China HS Code 85442000 Production Capacity 20000km Per Month

Product Description

High quality MIL standard CCTV camera KX6 coaxial cable, apply for CCTV system, high performance, quality warranty.
Certificates: ETL, CE, RoHS, ISO9001

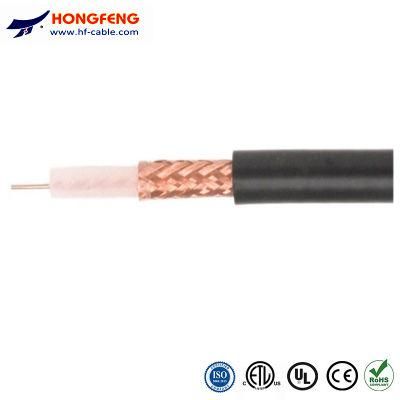

KX6 coaxial cable
1) Construction
Center Conductor: 7*0.20+0.01mm Stranded Bare Copper
Dielectric: 3.7+/-0.05mm Solid PE
Shield: Foil optional
Braid Coverage: 85 - 95%% Cu or CCA wires
Jacket: 6.15+0.05mm PVC (Green or Black or white)

2) Characteristics
Spark Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 52+/-3pF/m
Velocity of Propagation: 66%
Return Loss 20dB min (5-2300MHz)

3) Assembly
Assembly usually this cable made composite with 2 cores or 4 cores power wires, and RG59 plug with BNC connector, power wire plug with DC connectors.

4) Attenuation Sheet

	KX6
Frequency (MHz)	Nom Attenuation (dB/100m)
5	3.4
55	8.3
200	17.2
450	25.3
800	36.2
1000	40.1
