120V/240V Underground Electrical Heating Mat From OEM Factory

Wuhu Jiahong New Material Co., Ltd.
  • Cable Construction：Twin Conductor
  • Rated Voltage：120V,240V
  • Output：12W,FT2 (130W,M2)±10%
  • Cable Spacing：3" (76.2mm)
  • Cable Diameter：1,8"-1,6" (3.2mm-4.2mm)
  • Conductor Insulation：Fluoropolymer

Base Info

  • Model NO.：warmmat
  • Outer Insulation：Fluoropolymer or PVC
  • Max. Ambient Temp：Degree 30
  • Min. Installation Temp：Degree 5
  • Cold Lead：2-Wire 16 AWG Plus Ground Braid; 10FT (3m) Length
  • Transport Package：Innner Carton Master Carton
  • Specification：CSA cULus
  • Trademark：jiahong
  • Origin：Anhui Wuhu
  • Production Capacity：17000PCS Per Day

Description

Cable Construction:Twin conductorRated Voltage:120V,240VOutput:12W/ft2 (130W/m2)±10%Cable spacing:3" (76.2mm)Cable Diameter:1/8"-1/6" (3.2mm-4.2mm)Conductor Insulation:Fluor-polymerOuter Insulation:Fluor-polymer or PVCMaximum Ambient Temperature:85ºF(30ºC)Minimum Installation Temperature:40ºF(5ºC)Cold lead2-wire 16 AWG plus ground braid; each measuring 10ft (3m) length

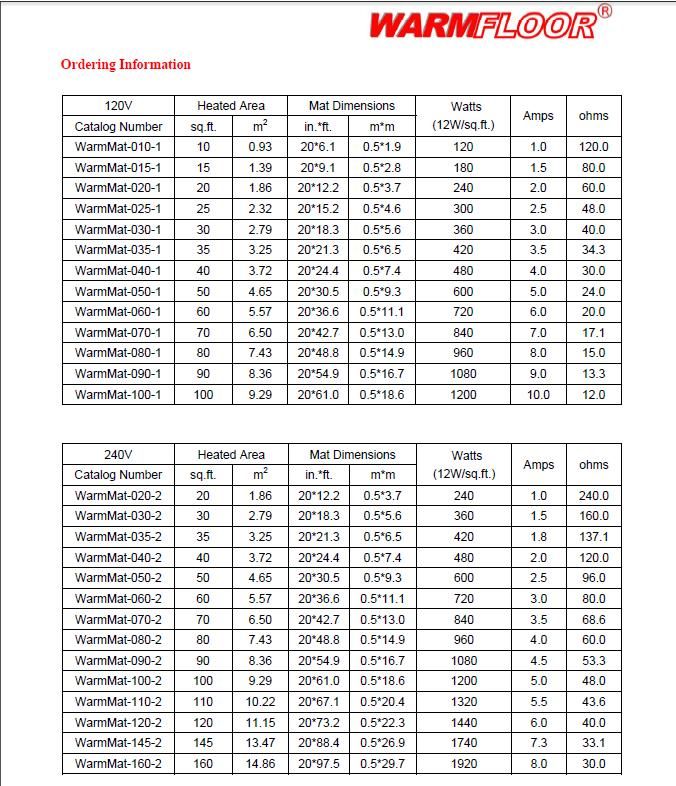

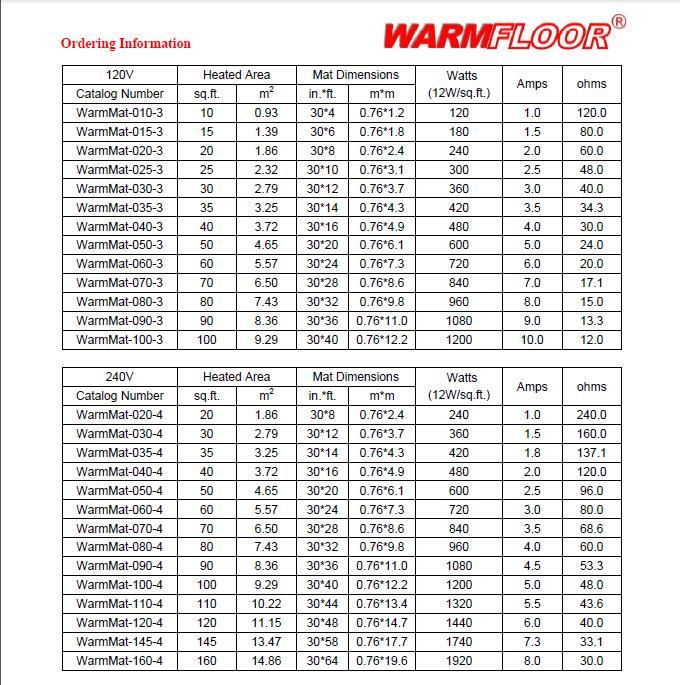

Order information :
120V/240V Underground Electrical Heating Mat From OEM Factory
120V/240V Underground Electrical Heating Mat From OEM Factory
Why Choose Jiahong :

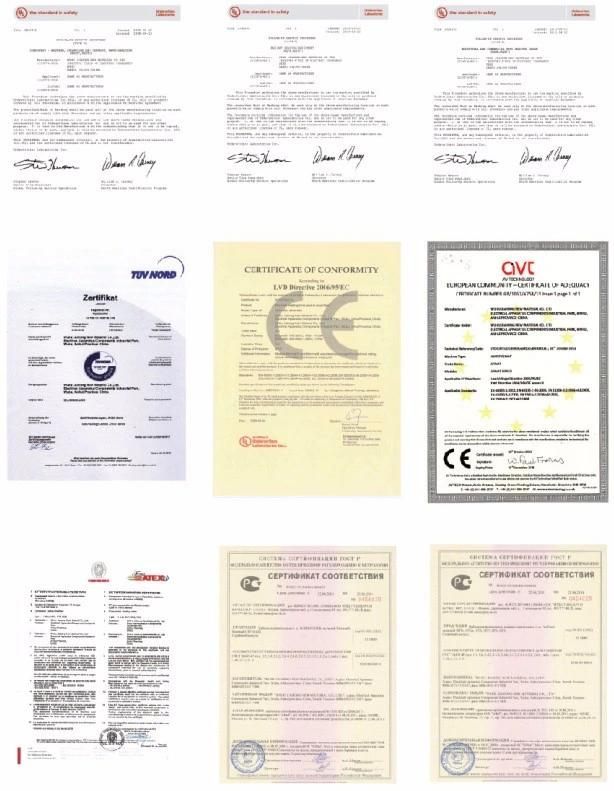

22 years experience made us to be the biggest manufacturer of heating cable in Asia. The only one have CE UL ETL TUV CSA certificate  in Aisa. And 6-year's supplier of homedepot ,GE ,Grainger.

Products include heating mat ,heating cable ,thermostat and self regulating heating cable , All products approved and 100% inspected.Only adopts high-quality raw materials, key materials imported from American, Japan and Germany . It made our products with excellent quality .Better than any other competitors  in China .

25-year warranty for underfloor heating system, 10-year warranty for self-regulating  heating system; Deal and solve any of your concerns at the earliest time
Besides, we have a new cable only 2mm thickness.
120V/240V Underground Electrical Heating Mat From OEM Factory
