0.6/1kv Multicore Cores Copper Conductor XLPE Armoured Power Cable
Hebei Huatong Wires & Cables Group Co., Ltd.- Application:Underground
- Voltage:Low and Medium Voltage Cable
- Current:AC Cable
- Insulation Material:XLPE
- Sheath Material:PVC
- Material Shape:Round Wire
Base Info
- Model NO.:Power Cable
- Wire Core Material:Bare Copper Wire
- Certification:ISO, CCC, CE, RoHS, UL
- Model:Yjv32
- Brand:Rneda
- Certificate:UL Ce TUV BV Kema SABS Psb
- Size:1.5-800mm
- Core:Single 2 3 4 3+1 4+1 3+2
- Conductor:Copper or Aluminum
- Usage:Underground
- Armour:Steel Wire
- Type Conductor:Stranded or Solid
- Transport Package:Wooden & Steel Drum
- Specification:IEC DIN ASTM VDE BS
- Trademark:RNEDA
- Origin:China
- HS Code:8544492100
- Production Capacity:1000km Per Month
Description
Basic Info.
Model NO. Power Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS, UL Model Yjv32 Brand Rneda Certificate UL Ce TUV BV Kema SABS Psb Size 1.5-800mm Core Single 2 3 4 3+1 4+1 3+2 Conductor Copper or Aluminum Usage Underground Armour Steel Wire Type Conductor Stranded or Solid Transport Package Wooden & Steel Drum Specification IEC DIN ASTM VDE BS Trademark RNEDA Origin China HS Code 8544492100 Production Capacity 1000km Per MonthProduct Description
0.6/1KV Multicore Cores Copper conductor XLPE Armoured Power cable

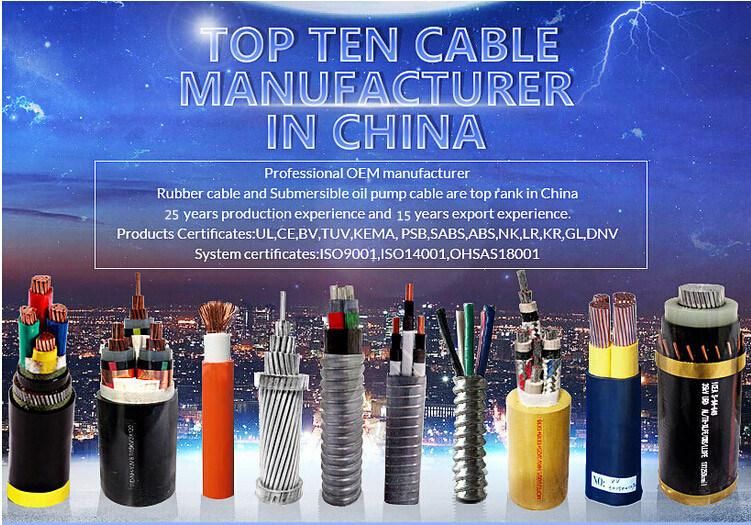

TOP TEN CABLE MANUFACTURER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS

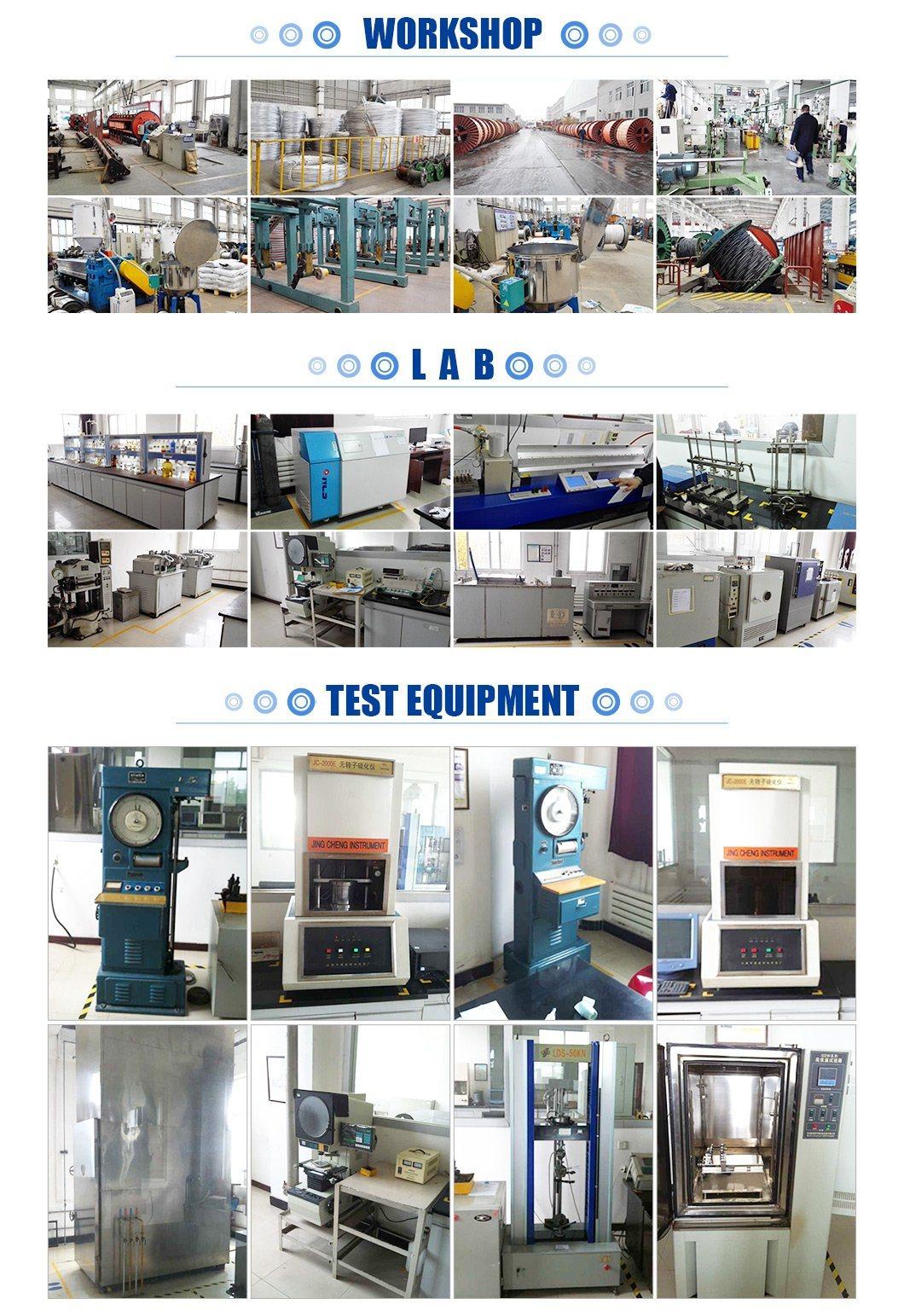

CNAS APPROVAL LABROTARY
Specifications:
1. Cu/XLPE/SWA/PVC sheath Electric power cable are for laying buildings, inducts, kin tunnels, direct in ground and under water
1). CE, ISO, SGS...Certificate 2). IEC Standard 3). Exported to Many Countries. 4) Standard: IEC60502, GB/T 12706
5). Voltage: 0.6/1KV
2. Nominal cross-sectional areas: 1.5 mm2, 2.5 mm2, 4 mm2, 6 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2, 70 mm2, 95 mm2, 120 mm2, 150 mm2, 185 mm2, 240 mm2, 300 mm2 400 mm2 500 mm2 630 mm2 800 mm2
3. Production range: Single core cable from 1.5 mm2 to 800 mm2, muli-core cable from 1.5 mm2 to 400 mm2
4. Operating characteristics:
Rated power-frequency voltage u0/u: 0.6/1 KV
Max permissible continuous operating temperature of conductor 70
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): Cross-section of conductor 300 mm2
The anbient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter, the bending radius of multi-core cable should not be less than 15 times of the cable diameter
5. Specification:
Application
The control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
Service Conditions
(1)The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
(2) The temperature for laying the cables can not be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible
Cable Type | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Diameter Under Armour mm | Nominal Diameter Over Armour mm | Nominal Diameter Overall mm | Nominal Weight kg/Km | Continuous Current Rating in Ground - Trefoil Amps | Continuous Current Rating in Ground - Flat Amps |
---|---|---|---|---|---|---|---|
Copper | 1 x 50 | 21.7 | 24.9 | 28.5 | 1200 | 220 | 230 |
Copper | 1 x 70 | 23.0 | 26.2 | 30.0 | 1500 | 270 | 280 |
Copper | 1 x 95 | 24.7 | 27.9 | 31.7 | 1600 | 320 | 335 |
Copper | 1 x 120 | 26.7 | 29.9 | 33.9 | 2100 | 360 | 380 |
Copper | 1 x 150 | 27.5 | 31.5 | 35.7 | 2500 | 410 | 430 |
Copper | 1 x 185 | 29.3 | 33.3 | 37.5 | 2900 | 455 | 485 |
Copper | 1 x 240 | 31.6 | 35.6 | 40.0 | 3600 | 520 | 560 |
Copper | 1 x 300 | 34.6 | 38.6 | 43.0 | 4300 | 580 | 640 |
Copper | 1 x 400 | 37.0 | 41.0 | 45.8 | 5200 | 650 | 730 |
Copper | 1 x 500 | 40.5 | 45.5 | 50.5 | 6500 | 710 | 830 |
Copper | 1 x 630 | 44.6 | 49.6 | 54.8 | 8000 | 760 | 940 |
Copper | 1 x 800 | 48.8 | 53.8 | 59.2 | 9850 | 810 | 1060 |
Copper | 1 x 1000 | 53.5 | 58.5 | 64.3 | 12100 | 860 | 1170 |
Copper | 3 x 25 | 39.0 | 44.0 | 48.8 | 4300 | 140 | 140 |
Copper | 3 x 35 | 41.6 | 46.6 | 51.6 | 4700 | 170 | 170 |
Copper | 3 x 50 | 44.4 | 49.4 | 54.6 | 5300 | 210 | 210 |
Copper | 3 x 70 | 48.1 | 53.1 | 58.5 | 6300 | 255 | 250 |
Copper | 3 x 95 | 52.0 | 57.0 | 62.6 | 7300 | 300 | 300 |
Copper | 3 x 120 | 55.6 | 60.6 | 66.6 | 8400 | 340 | 340 |
Copper | 3 x 150 | 58.6 | 63.6 | 69.8 | 9600 | 380 | 380 |
Copper | 3 x 185 | 62.7 | 67.7 | 74.1 | 11000 | 430 | 430 |
Copper | 3 x 240 | 68.1 | 74.4 | 81.2 | 14000 | 490 | 500 |
Copper | 3 x 300 | 73.5 | 79.8 | 87.0 | 16600 | 540 | 540 |
Copper | 3 x 400 | 81.1 | 87.4 | 95.0 | 19500 | 590 | 600 |
Aluminium | 1 x 50 | 30.9 | 34.9 | 39.3 | 1740 | 170 | 175 |
Aluminium | 1 x 70 | 32.6 | 36.6 | 41.0 | 1850 | 210 | 215 |
Aluminium | 1 x 95 | 34.3 | 38.3 | 42.9 | 2100 | 250 | 260 |
Aluminium | 1 x 120 | 35.9 | 39.9 | 44.5 | 2250 | 280 | 295 |
Aluminium | 1 x 150 | 37.5 | 42.5 | 47.3 | 2600 | 320 | 330 |
Aluminium | 1 x 185 | 39.3 | 44.3 | 49.3 | 2850 | 360 | 375 |
Aluminium | 1 x 240 | 41.7 | 46.7 | 51.7 | 3150 | 415 | 440 |
Aluminium | 1 x 300 | 44.2 | 49.2 | 54.4 | 3600 | 475 | 495 |
Aluminium | 1 x 400 | 47.3 | 52.3 | 57.7 | 4000 | 540 | 570 |
Aluminium | 1 x 500 | 50.5 | 55.5 | 61.1 | 4500 | 610 | 650 |
Aluminium | 1 x 630 | 54.2 | 59.2 | 65.0 | 5250 | 680 | 750 |
Aluminium | 1 x 800 | 60.5 | 65.5 | 71.6 | 6150 | 770 | 860 |
Aluminium | 1 x 1000 | 65.0 | 70.0 | 76.5 | 7200 | 859 | 960 |
Aluminium | 3 x 50 | 65.1 | 71.4 | 78.2 | 8300 | 160 | 160 |
Aluminium | 3 x 70 | 68.8 | 75.1 | 82.1 | 9050 | 195 | 195 |
Aluminium | 3 x 95 | 72.6 | 78.9 | 86.1 | 9800 | 230 | 230 |
Aluminium | 3 x 120 | 76.3 | 82.6 | 90.0 | 10600 | 265 | 265 |
Aluminium | 3 x 150 | 79.3 | 85.6 | 93.2 | 11350 | 300 | 300 |
Aluminium | 3 x 185 | 83.4 | 89.7 | 97.5 | 12250 | 335 | 335 |
Aluminium | 3 x 240 | 88.8 | 95.1 | 103.3 | 13700 | 380 | 380 |
Aluminium | 3 x 300 | 93.9 | 100.2 | 108.8 | 15500 | 435 | 435 |
Aluminium | 3 x 400 | 100.8 | 107.1 | 116.1 | 16750 | 490 | 490 |
