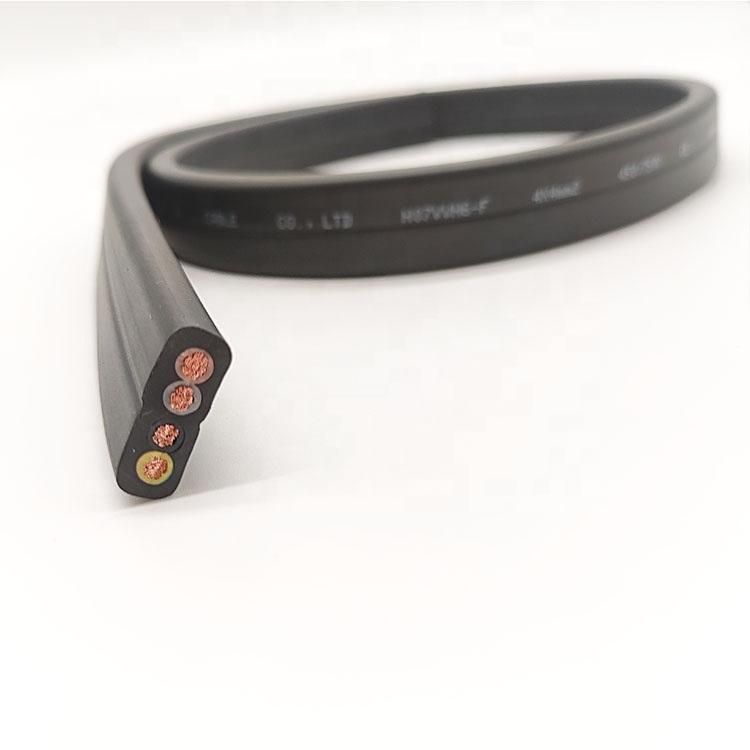

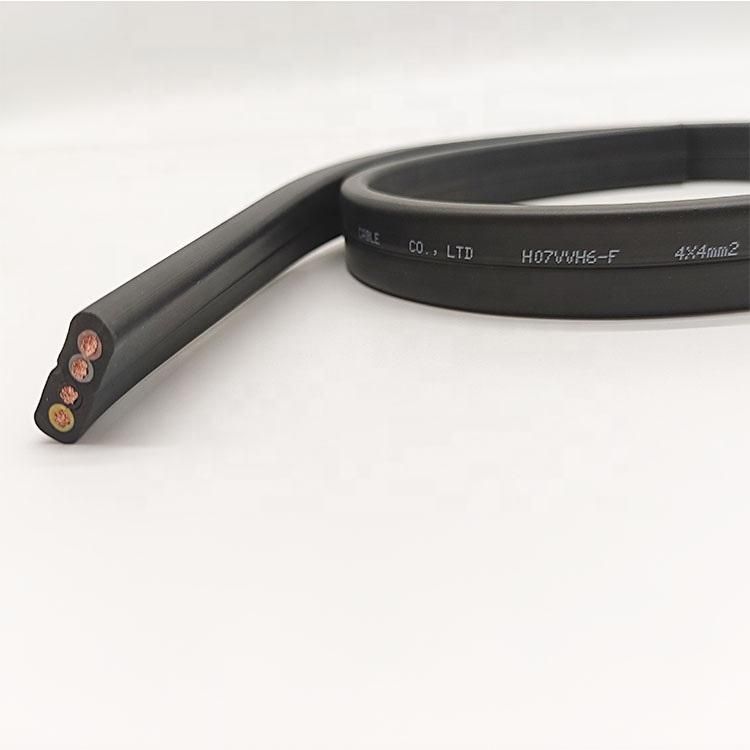

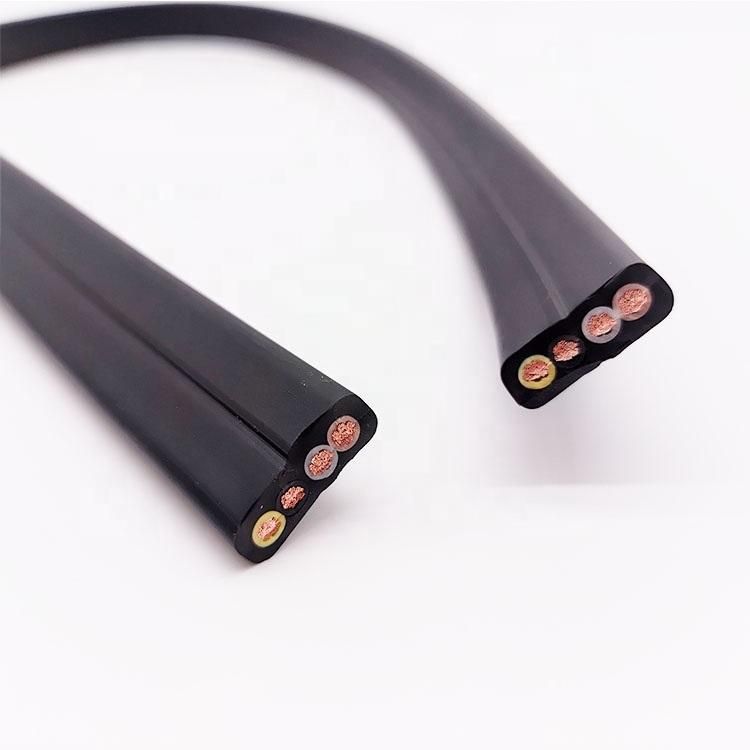

CE Certified H07vvh6-F PVC Sheathed Moveable Flat Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Application：Fixed Installations
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：H07VVH6-F Cable
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multi Core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemH07VVH6-F Cable ConductorStranded bare copperInsulatedPolyvinylchloride (PVC)SheathedPolyvinylchloride (PVC) Rated Voltage450/750VTest Voltage2500VTemperature RangeIn motion: -5°C - +70°CBending radiusMin. 10 x diameterColorOptionalApplication

To be used in dry and humid locations but not in the open-air for low and medium-level mechanical loads. This cable is suitable for connecting movable parts of machine tools, material handling equipment and large machines provided it is exposed to bending in only one plane. Cables with more than 5 cores grouped with individual groups separated by a stay.
