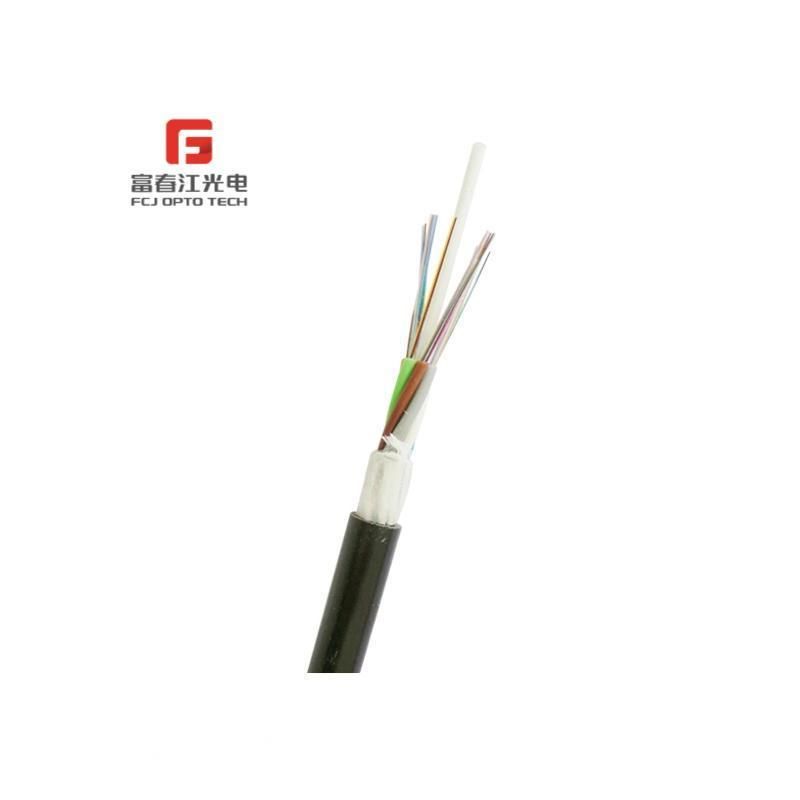

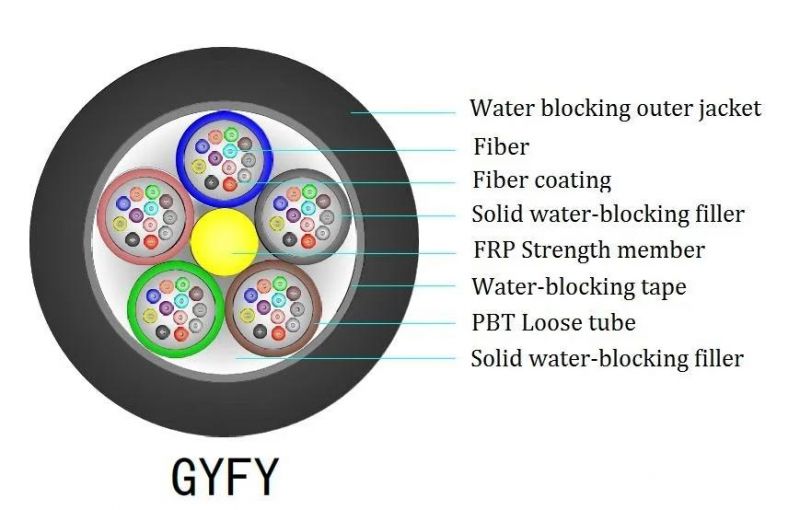

Non-Metallic Strength Member with Layer Half-Dry Loose Tube and Fe Sheath Gyfy Outdoor Fiber Optic Cable

Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：SC
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N

Base Info

  • Model NO.：Gyfy
  • Core：Multicore
  • Certification：RoHS, UL, CE, ISO9001, VDE, CCC
  • Brand：OEM
  • Transport Package：Wooden or as Your Request
  • Specification：2km 3km
  • Trademark：FCJ OPTO TECH
  • Origin：China
  • HS Code：854470000
  • Production Capacity：8000km,Momth

Description

Cable weight(kg/km) Approx.4050
  1. Temperature rangeOperation-20ºC ~ +60ºCInstallation-10ºC ~ +60ºCStorage/transportation-40ºC ~ +70ºC
        1. Main mechanical & environmental performance test
    Fiber color code123456BlueOrangeGreenBrownSlateWhite789101112RedBlackYellowPurplePinkAqua
        1. The Color of the Loose is natural
    2. Packaging and Drum
      1. Cable Sheath Marking

    Unless otherwise specified, the cable sheath marking shall be as follows:
    ØColor: white
    ØContents: FCJ GROUP, the year of manufacture, the type of cable, cable number, length marking
    ØInterval: 1±0.2% m
    Outer sheath marking legend can be changed according to user's requests.
      1. Reel Length
    Reel length: 6 km/reel.

      1. Cable Drum
    The cables are packed in fumigated wooden drums.

      1. Cable Packing
    Both cable ends are protected against water penetration and  firmly secured to the drum, so the cable cannot move and the turns cannot slide when it is moved, handled or laid. The inner end has around 3 meters of accessible length to perform reception tests.
    Other packing method is also available according customer's requirement.Non-Metallic Strength Member with Layer Half-Dry Loose Tube and Fe Sheath Gyfy Outdoor Fiber Optic CableNon-Metallic Strength Member with Layer Half-Dry Loose Tube and Fe Sheath Gyfy Outdoor Fiber Optic Cable
