• Core：Double Core
• Certification：RoHS, CE
• Brand：Hanxin
• Sheath Material：Crosslinking
• Transport Package：1000,2000,3000
• Trademark：HANXIN
• Origin：Zhejiang
• HS Code：8544700000
• Production Capacity：3000000m,Month

Fiber CountNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)2-24389.0261.0712.6*25.10.50*0.992670/600890/20036-72429.0287.9214.7*27.10.58*1.072670/600890/20096-144571.0383.2220.2*32.60.80*1.292670/600890/2002-24303.0203.369.1*21.50.36*0.852670/600890/20036-72332.0222.8211.1*23.50.44*0.932670/600890/20096-144417.0279.8715.9*28.30.63*1.122670/600890/200
   Physical PropertiesFiber CountNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)2-24389.0261.0712.6*25.10.50*0.992670/600890/20036-72429.0287.9214.7*27.10.58*1.072670/600890/20096-144571.0383.2220.2*32.60.80*1.292670/600890/200
   Mechanical PropertiesMinimum Bending Radius: Maximum Compressive Load:4000N for unarmored cables;Under installation:20×OD 6000N for armoured cablesDuring operation0×OD for unarmoured cablesRepeated Impact:4.4 N.m (J) 20×OD for armoured cablesTwist (Torsion):180×10 times, 125×ODTemperature Range: Cyclic Flexing:25 cycles for armoured cables.Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF) 100 cycles for unarmoured cables.Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)Crush Resistance:220N/cm (125lb/in)
   Fiber ComplianceTemperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool BendIEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11
   Safety ComplianceGeneral Purpose GradeFlammability Test: OFN (UL1581)Riser GradeFlammability Test: OFNR/FT4 (UL1666)Plenum GradeFlammability Test: OFNP/FT6 (UL 910)FRPVC GradeFlammability Test: IEC60332-1LSZH GradeHalogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2LSFROH Grade Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/AFR GradeFire Resistance Test : IEC 60331 / BS 6387 CW

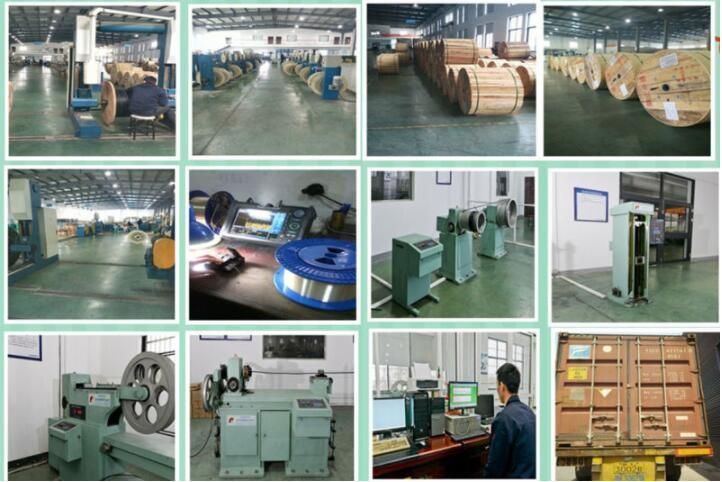

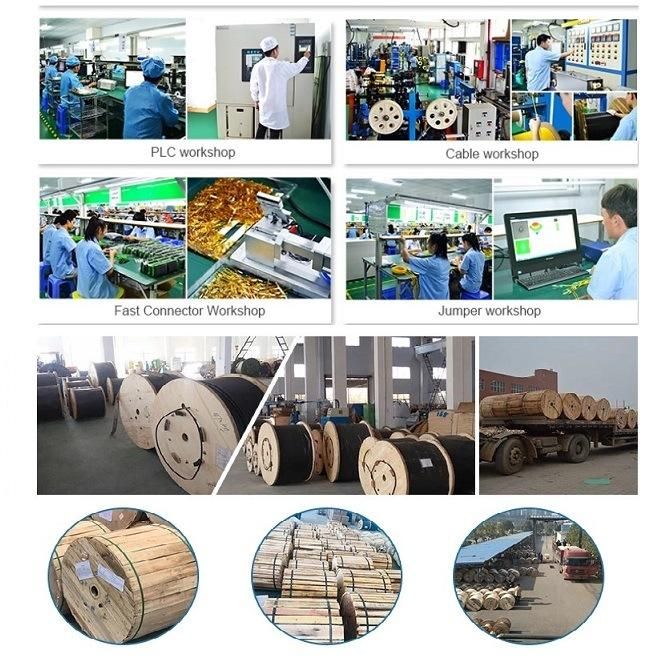

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
